Audio System/Navigation Wiring Diagram - Fusion With Touchscreen/Without Sony

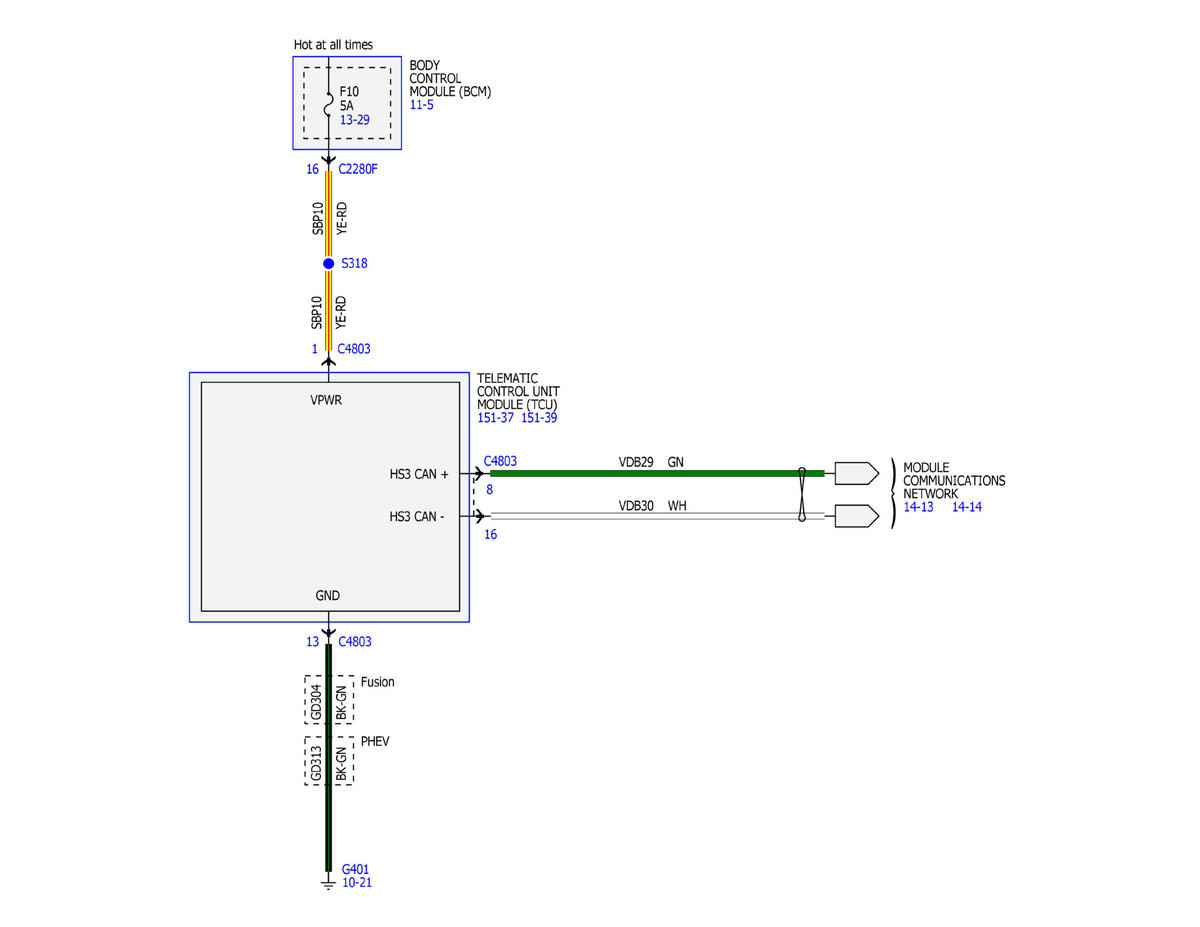

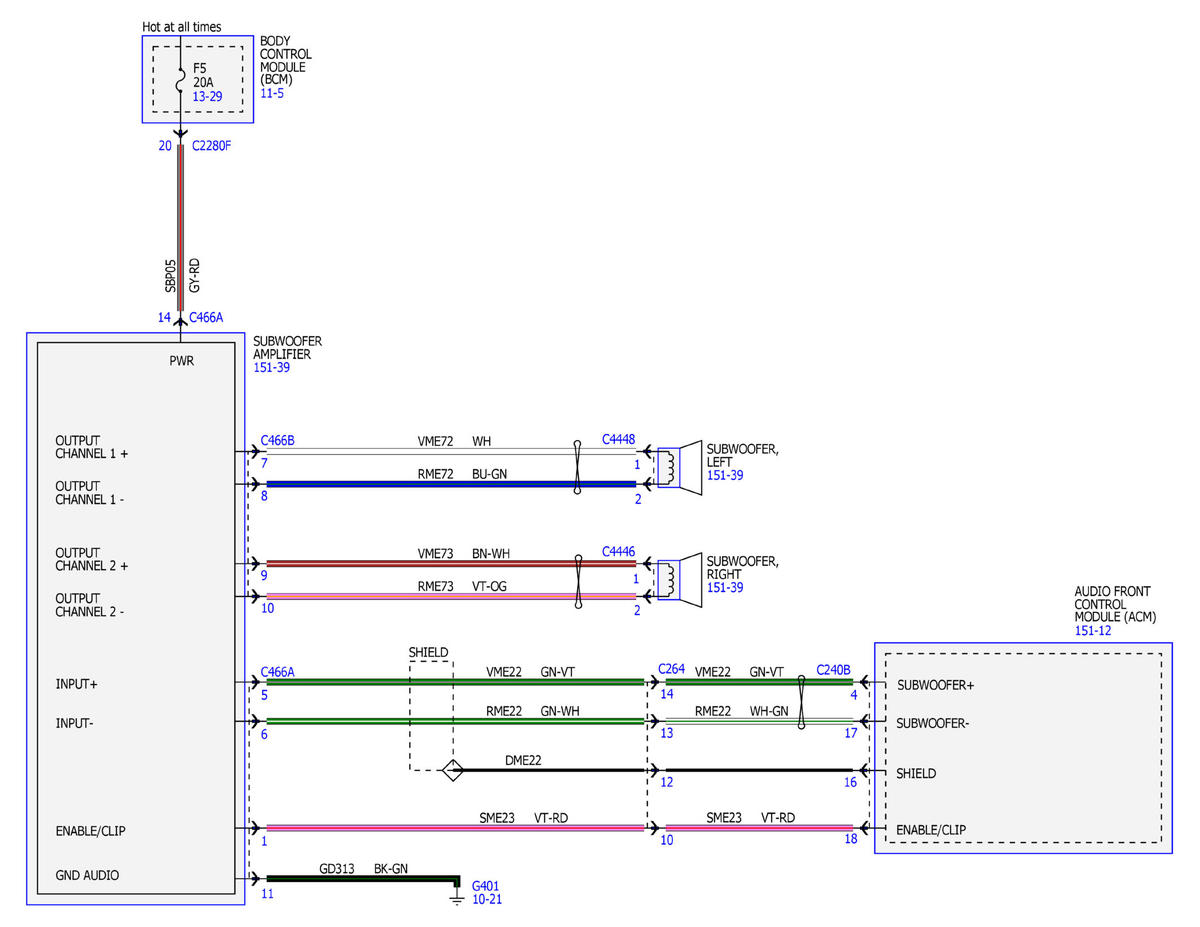

Fig 1: Audio System/Navigation Wiring Diagram - Fusion With Touchscreen/Without Sony (1 Of 11)

Courtesy of FORD MOTOR COMPANY

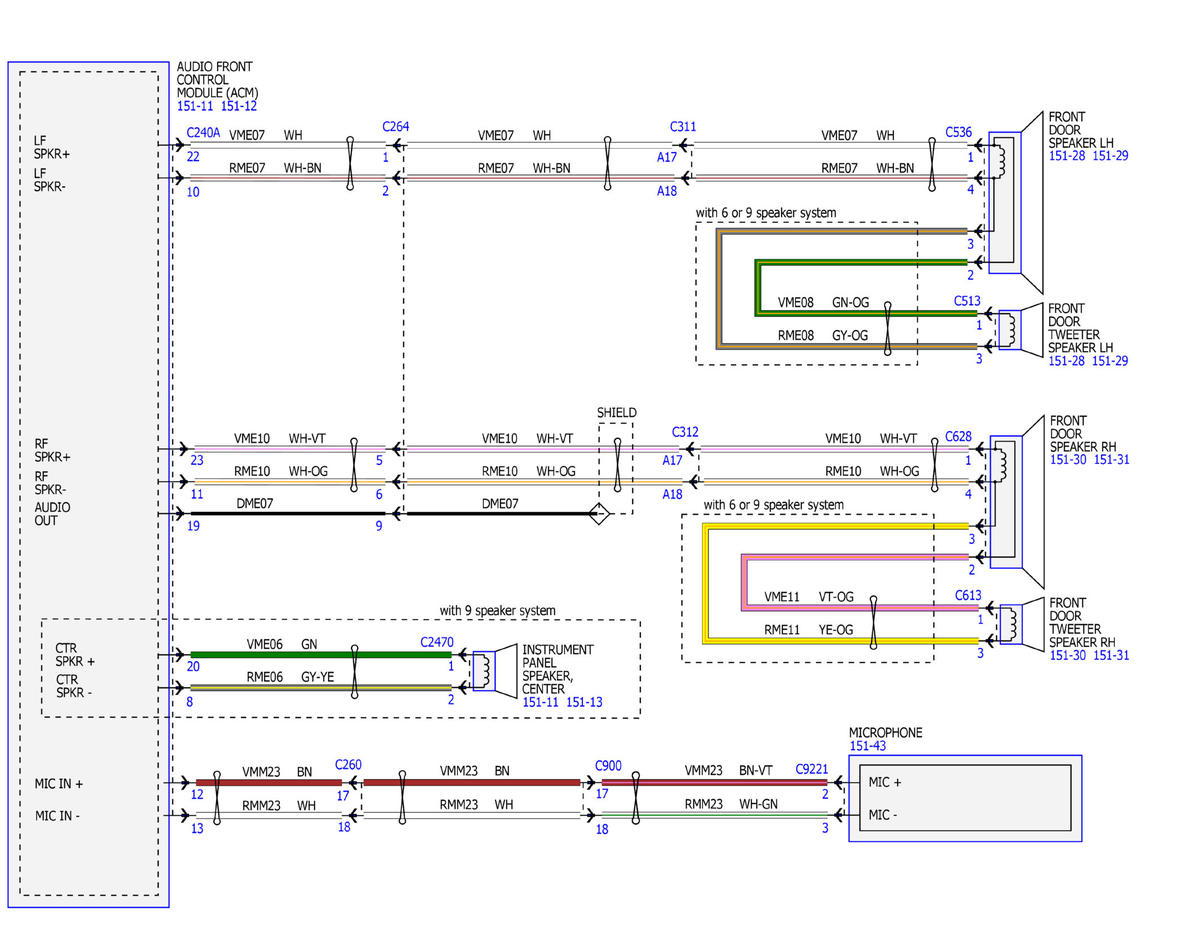

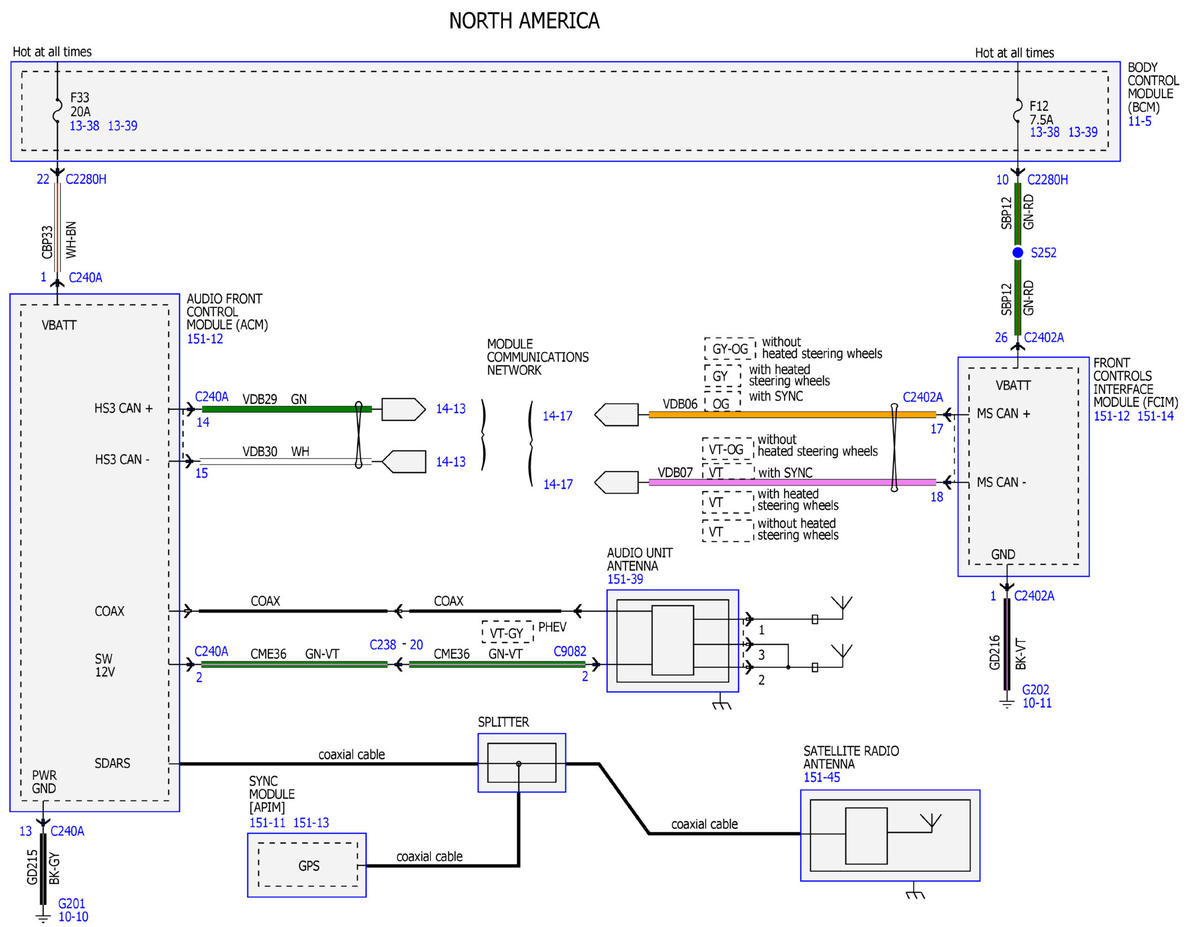

Fig 2: Audio System/Navigation Wiring Diagram - Fusion With Touchscreen/Without Sony (2 Of 11)

Courtesy of FORD MOTOR COMPANY

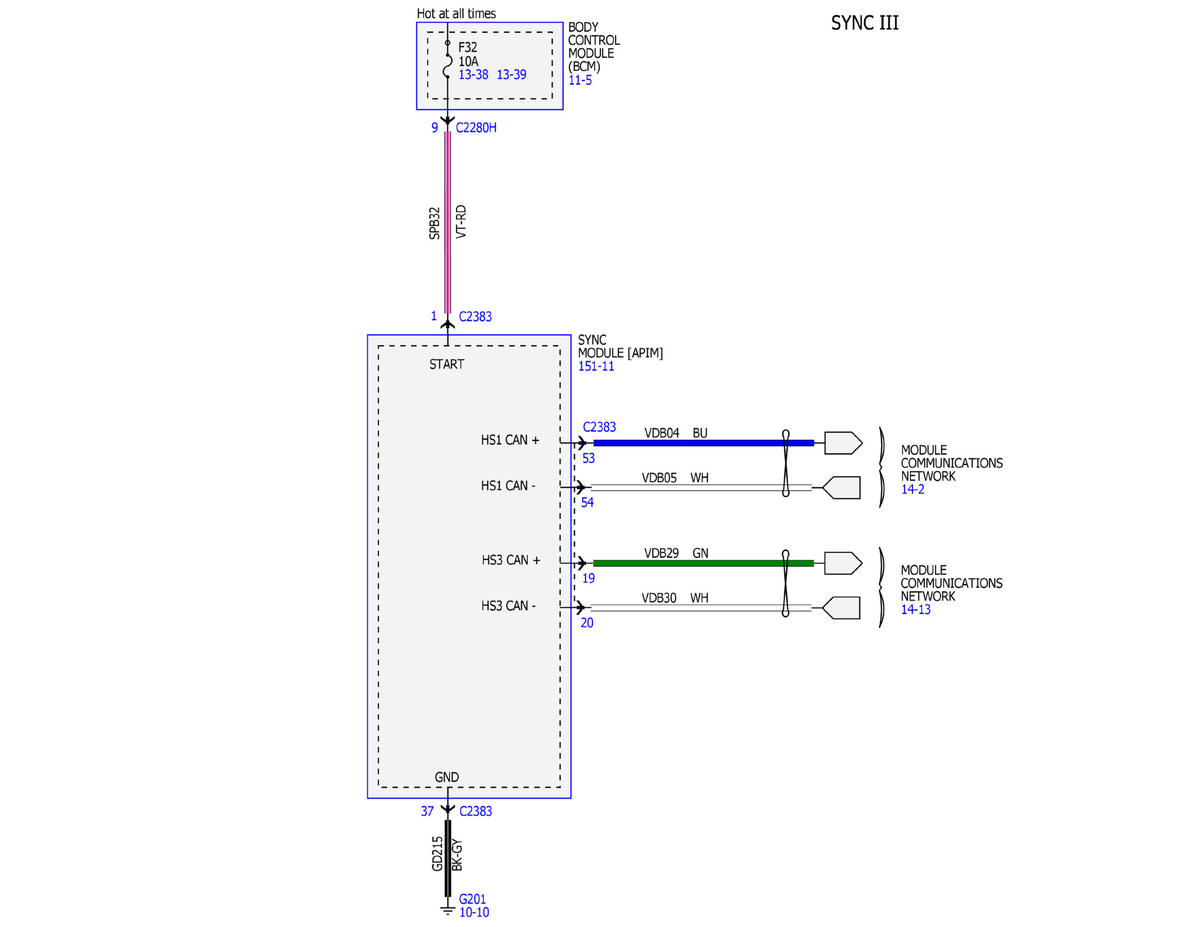

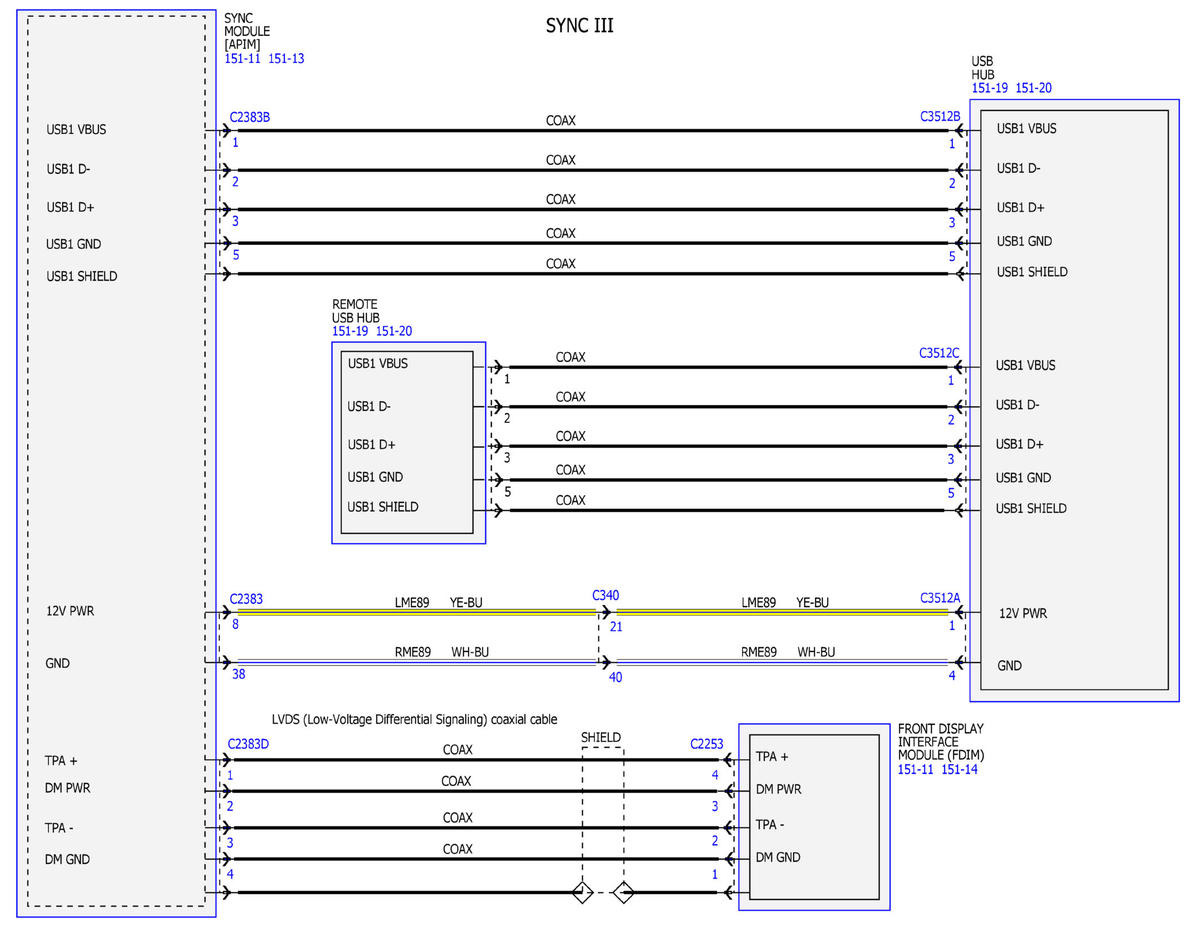

Fig 3: Audio System/Navigation Wiring Diagram - Fusion With Touchscreen/Without Sony (3 Of 11)

Courtesy of FORD MOTOR COMPANY

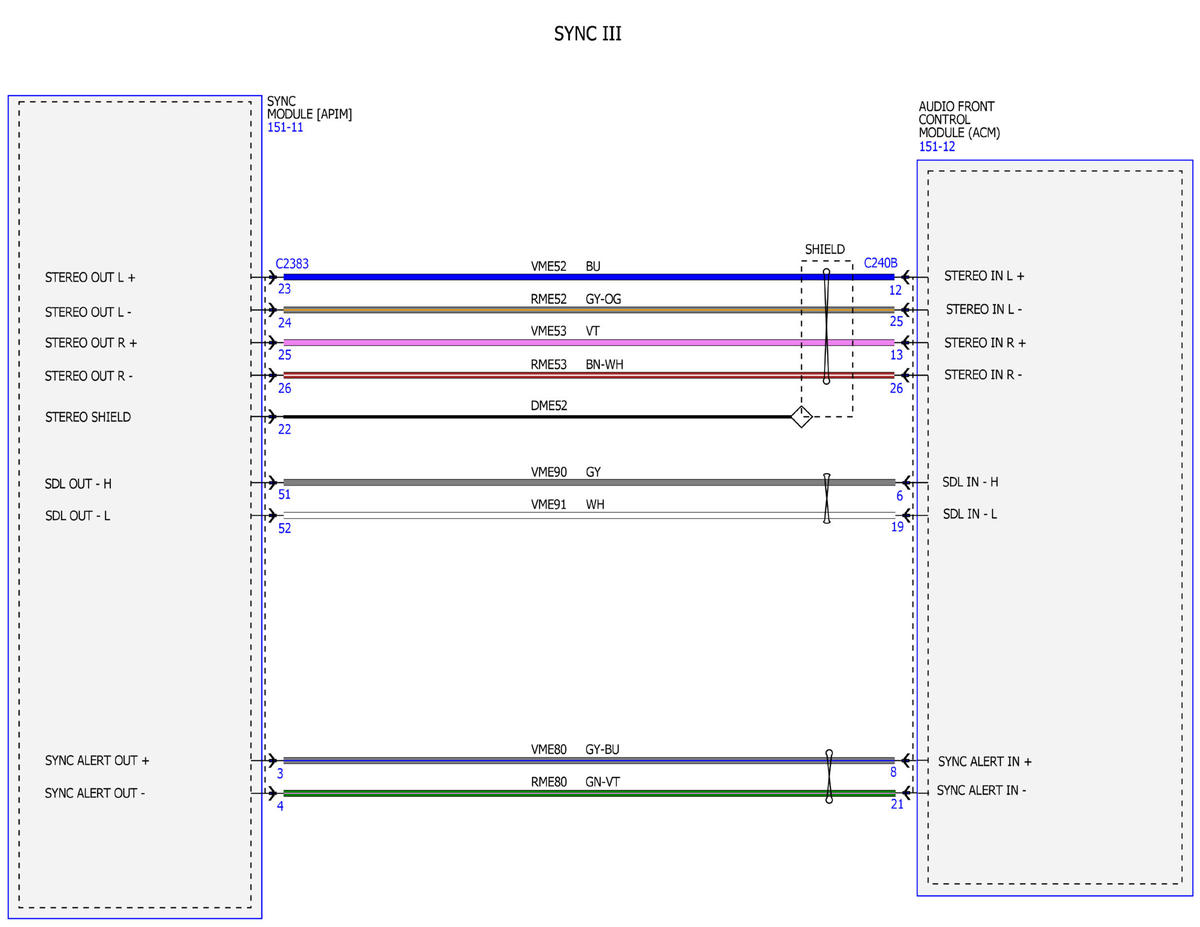

Fig 4: Audio System/Navigation Wiring Diagram - Fusion With Touchscreen/Without Sony (4 Of 11)

Courtesy of FORD MOTOR COMPANY

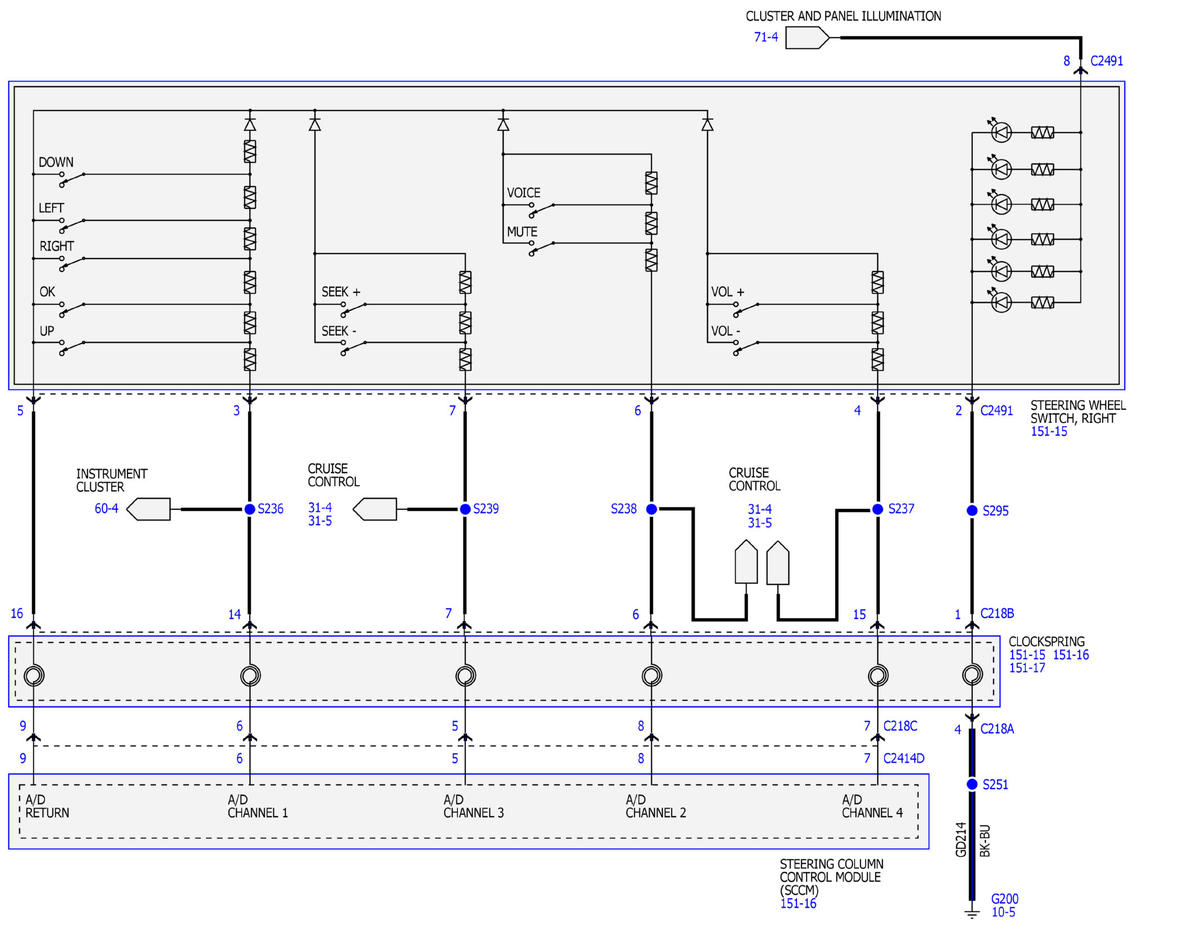

Fig 5: Audio System/Navigation Wiring Diagram - Fusion With Touchscreen/Without Sony (5 Of 11)

Courtesy of FORD MOTOR COMPANY

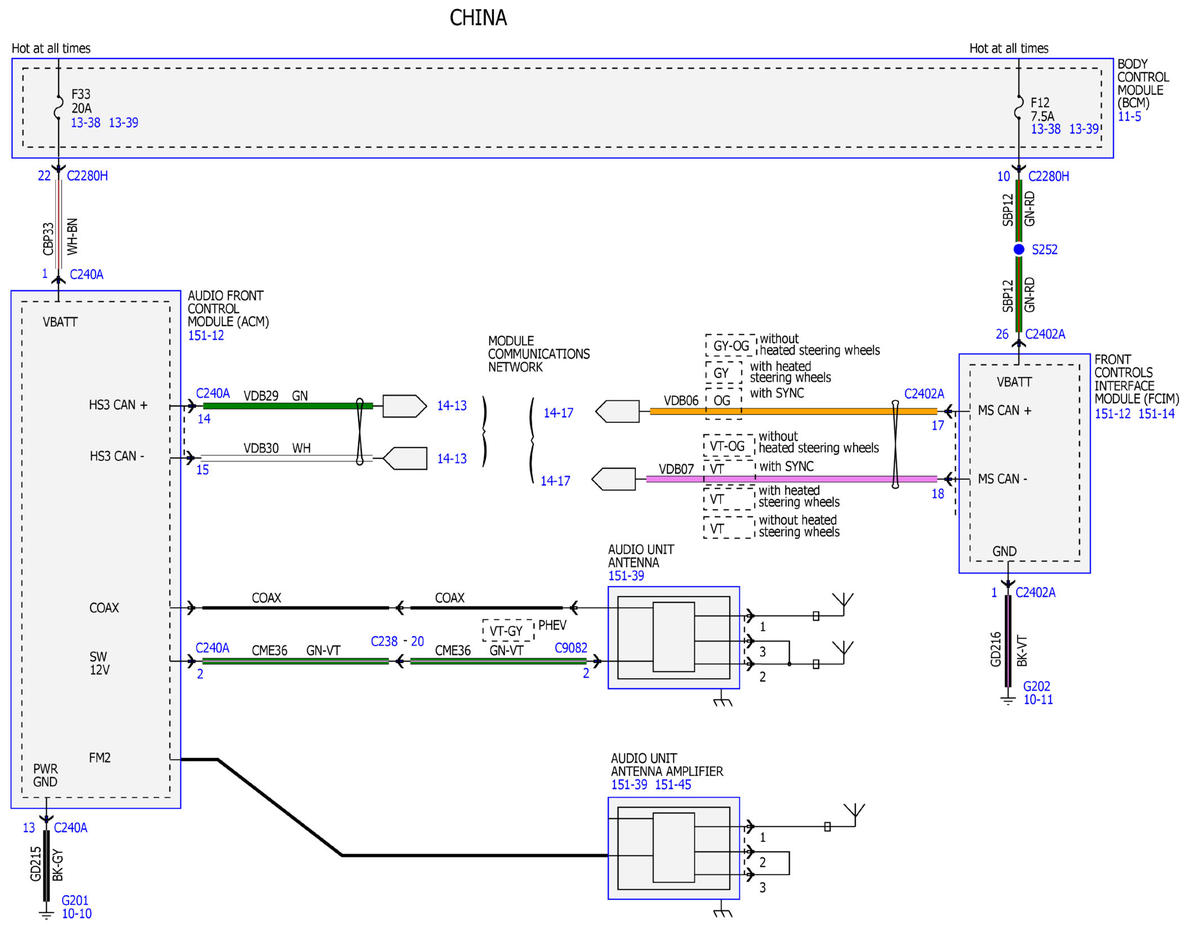

Fig 6: Audio System/Navigation Wiring Diagram - Fusion With Touchscreen/Without Sony (6 Of 11)

Courtesy of FORD MOTOR COMPANY

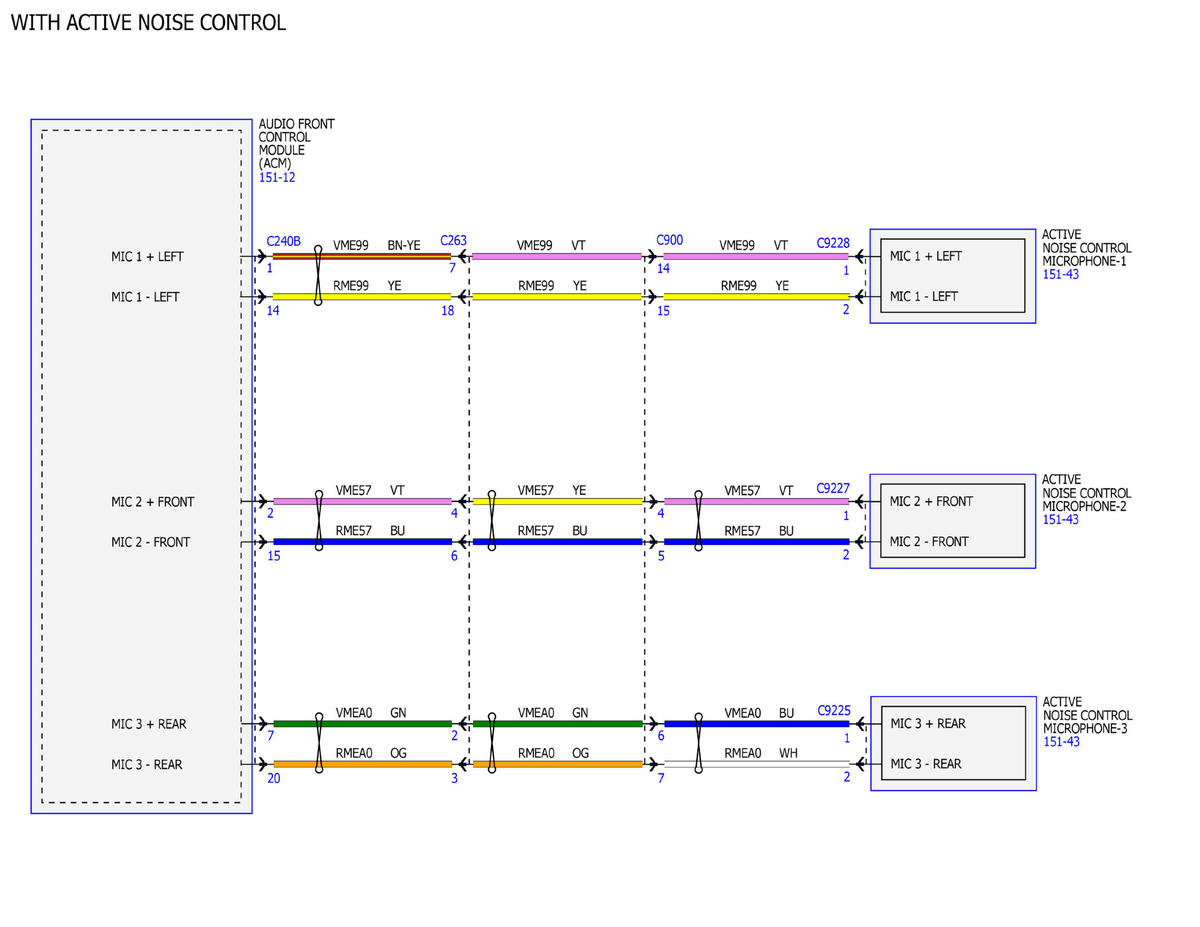

Fig 7: Audio System/Navigation Wiring Diagram - Fusion With Touchscreen/Without Sony (7 Of 11)

Courtesy of FORD MOTOR COMPANY

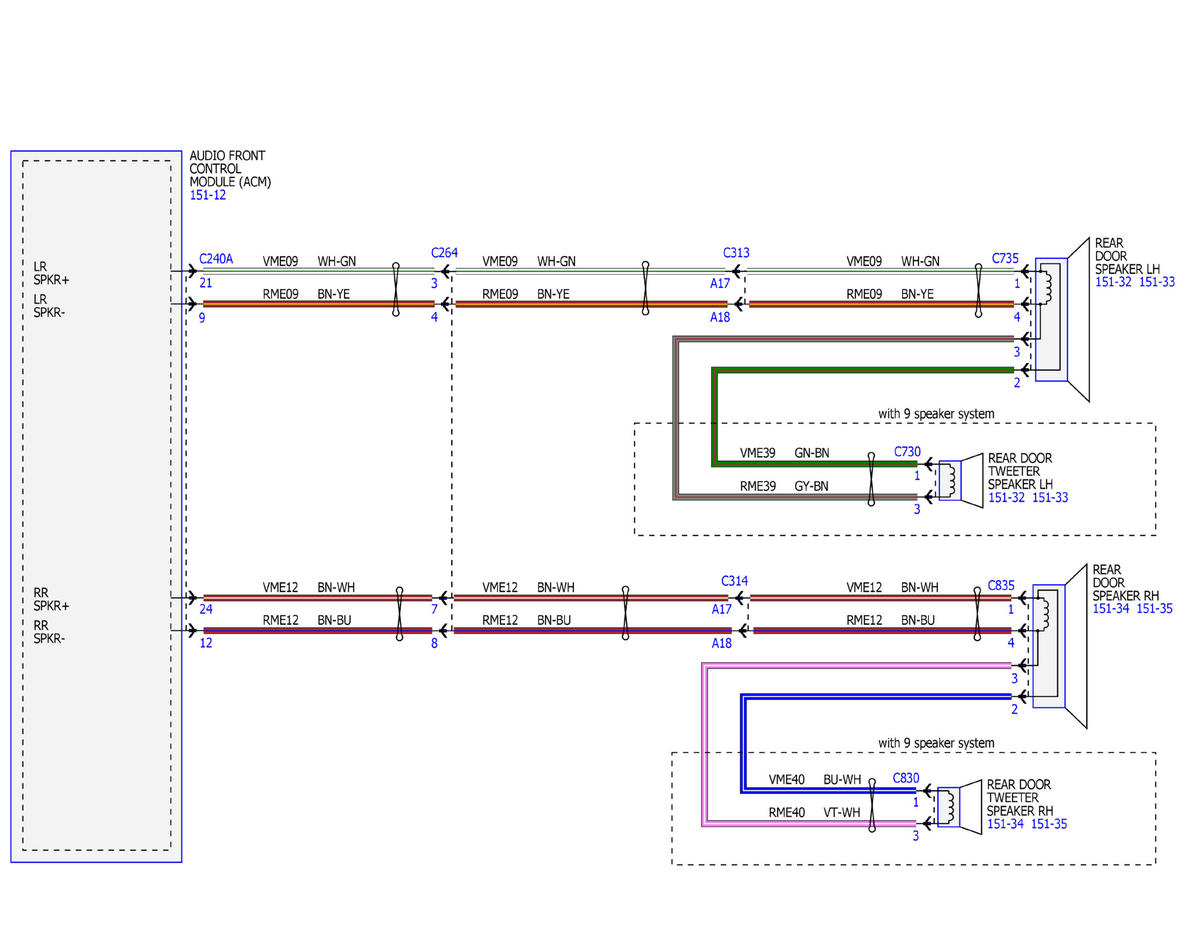

Fig 8: Audio System/Navigation Wiring Diagram - Fusion With Touchscreen/Without Sony (8 Of 11)

Courtesy of FORD MOTOR COMPANY

Fig 9: Audio System/Navigation Wiring Diagram - Fusion With Touchscreen/Without Sony (9 Of 11)

Courtesy of FORD MOTOR COMPANY

Fig 10: Audio System/Navigation Wiring Diagram - Fusion With Touchscreen/Without Sony (10 Of 11)

Courtesy of FORD MOTOR COMPANY

Fig 11: Audio System/Navigation Wiring Diagram - Fusion With Touchscreen/Without Sony (11 Of 11)

Courtesy of FORD MOTOR COMPANY
