OEM Wiring Diagram Symbols (Hybrid/ENERGI): Symbols

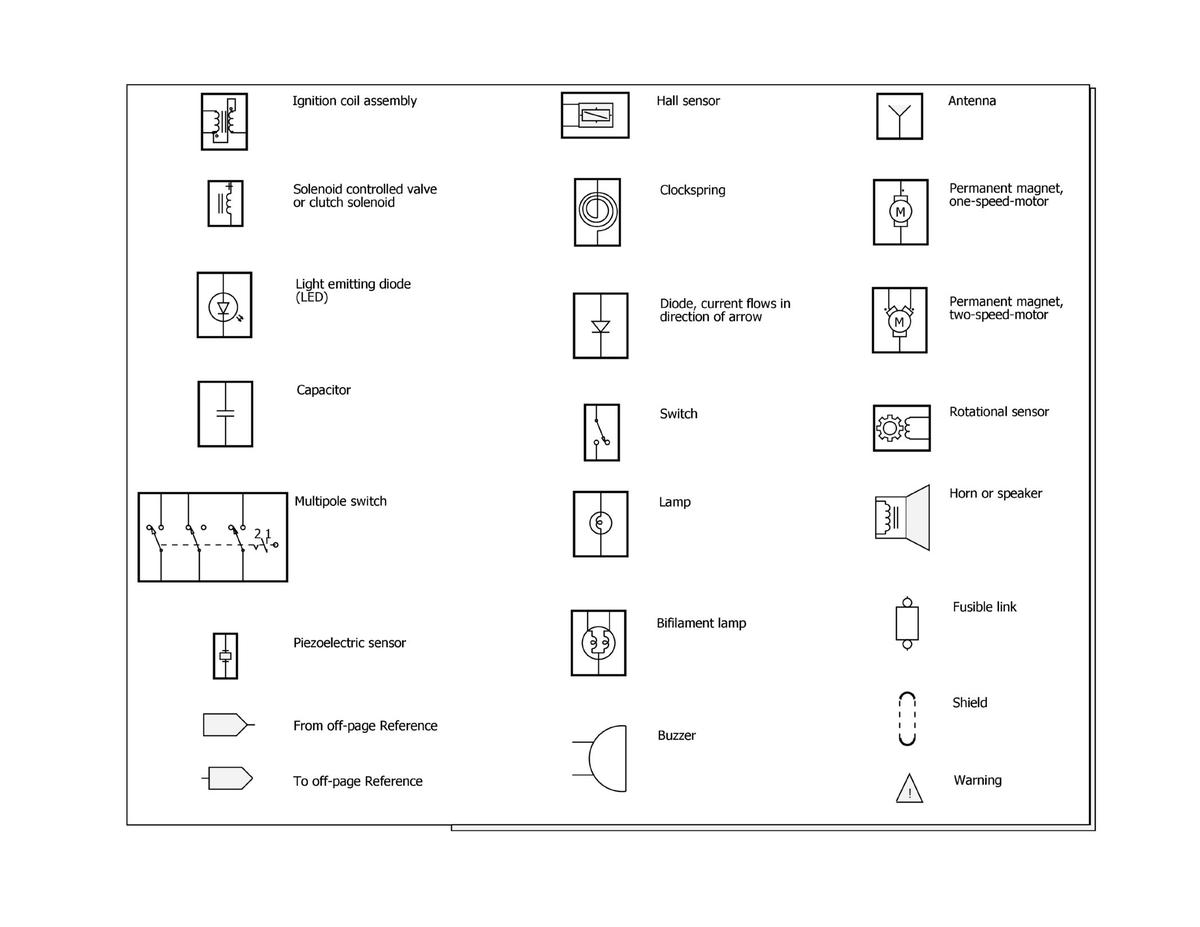

GFDWR73065Courtesy of FORD MOTOR COMPANY

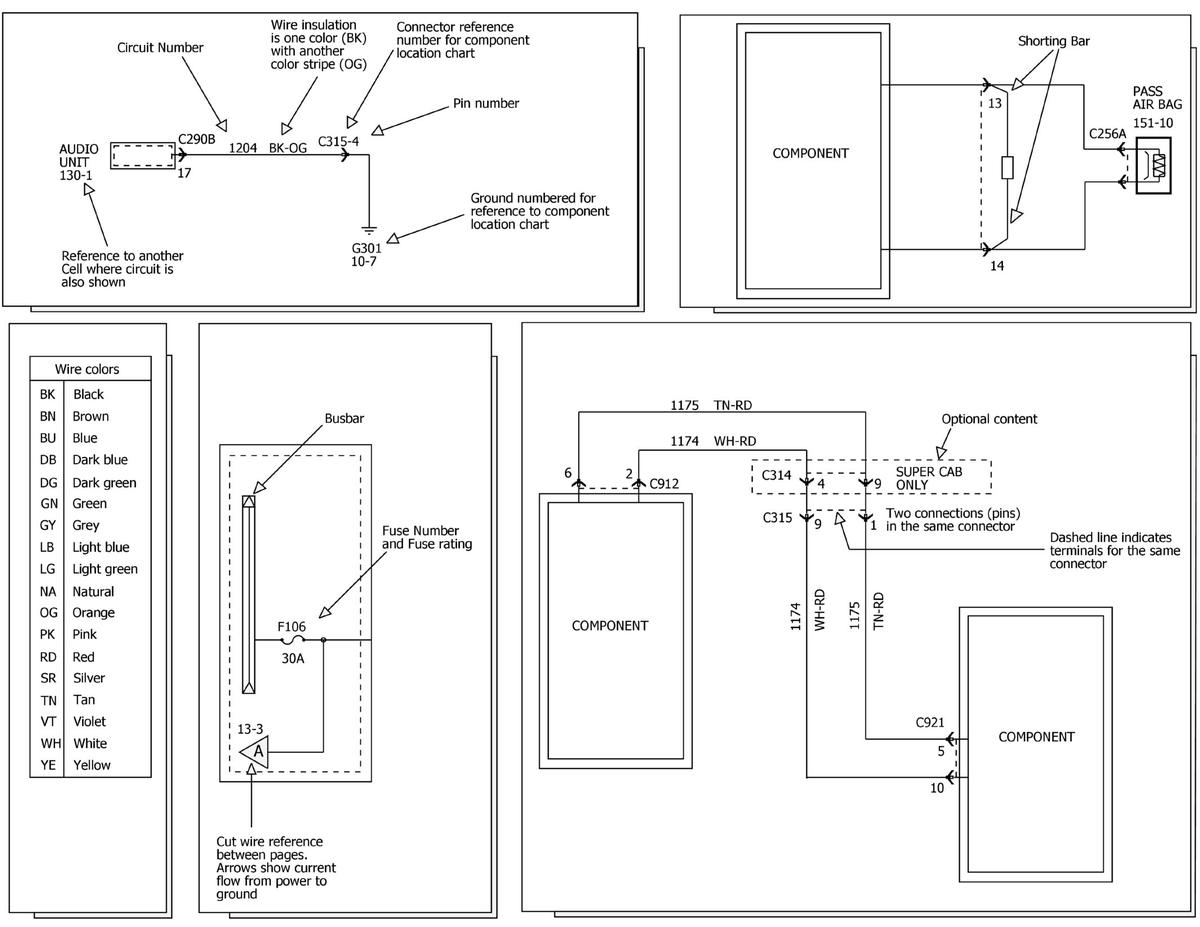

GFDWR73066Courtesy of FORD MOTOR COMPANY

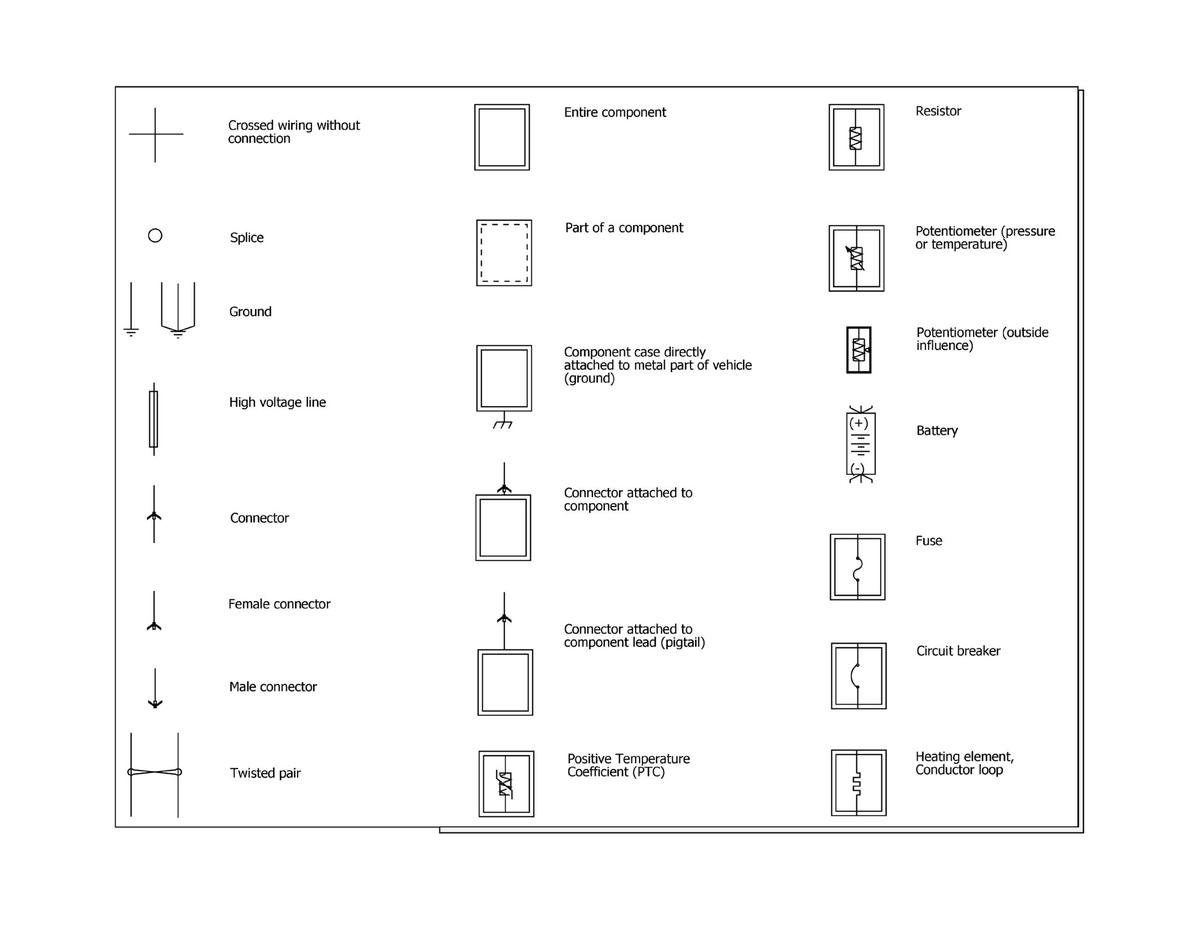

GFDWR73067Courtesy of FORD MOTOR COMPANY

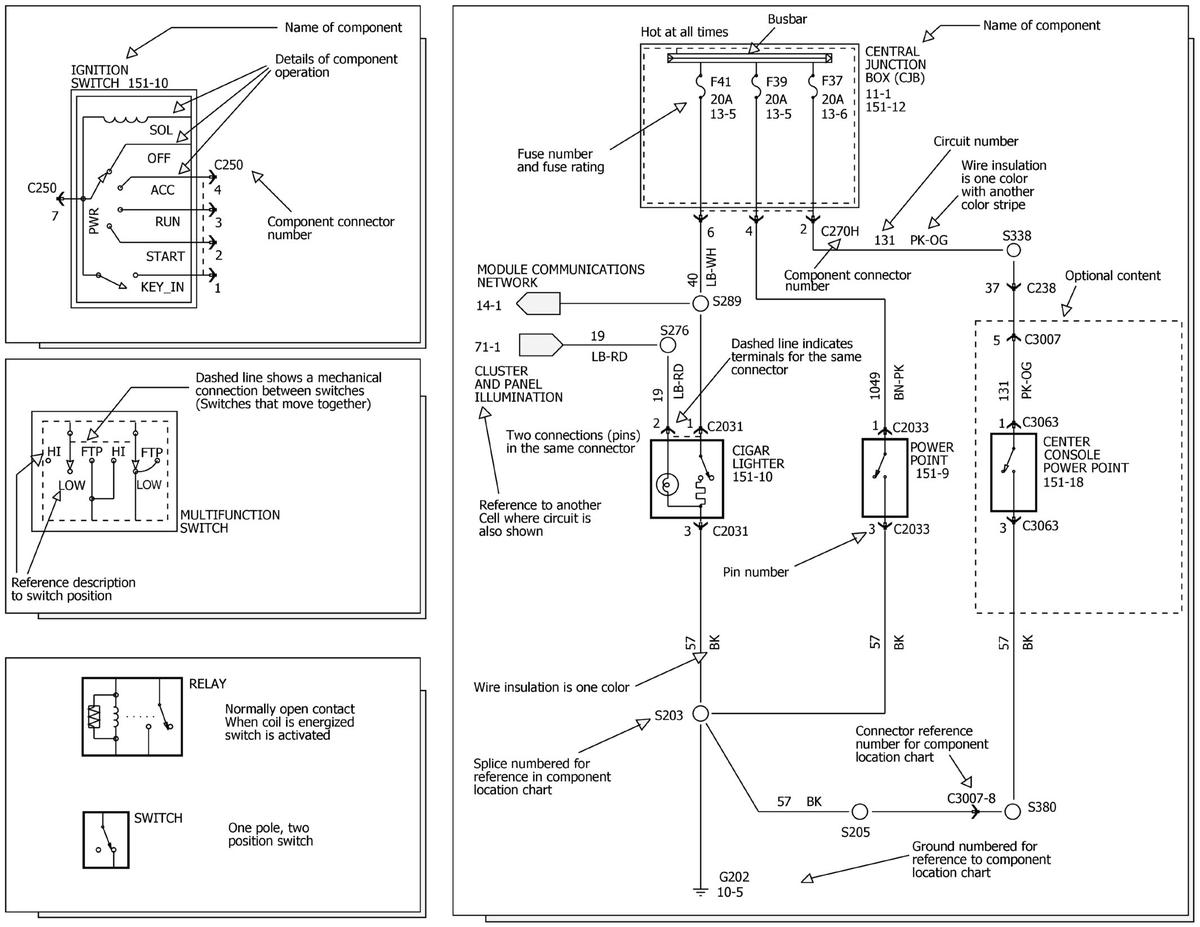

GFDWR73068Courtesy of FORD MOTOR COMPANY

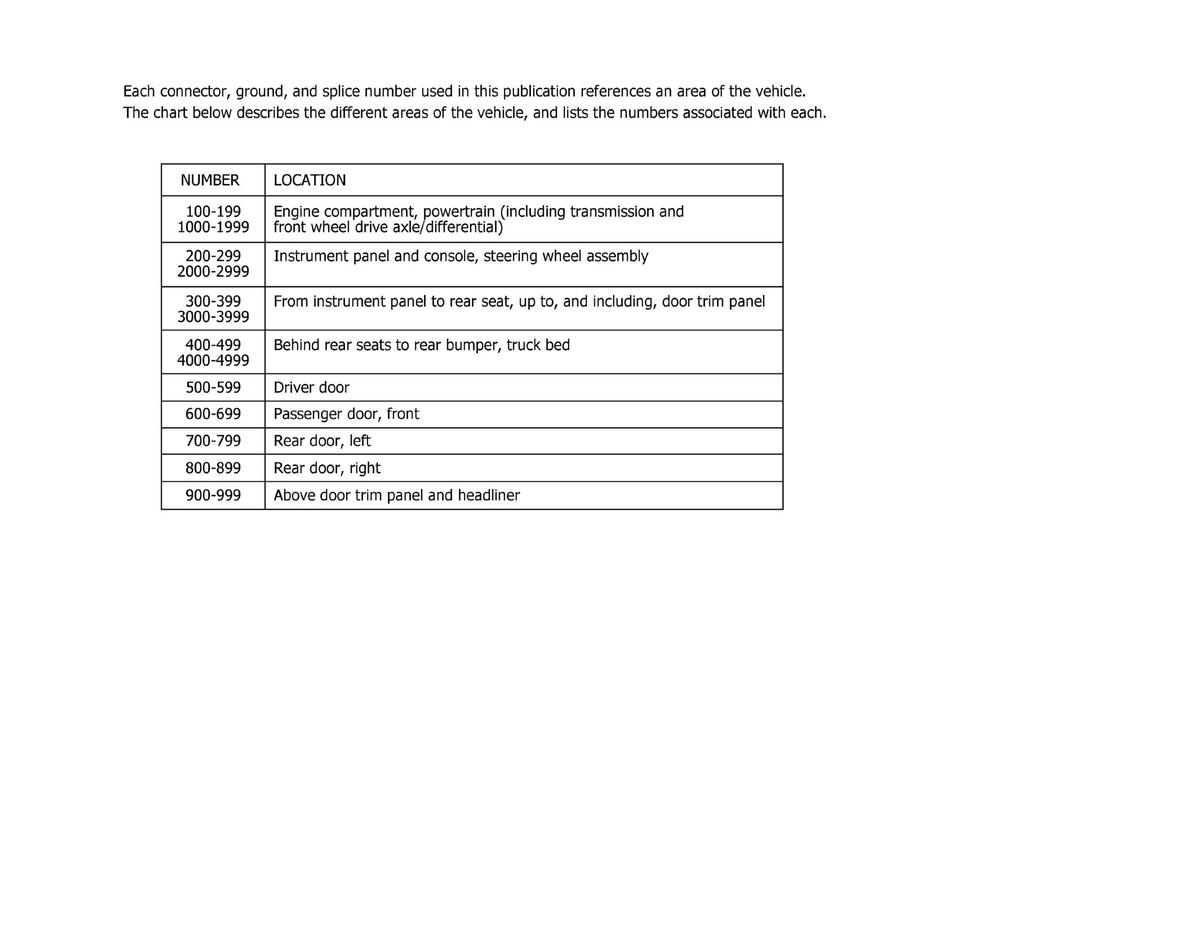

GFDWR73069Courtesy of FORD MOTOR COMPANY
