Connector Repair Procedures

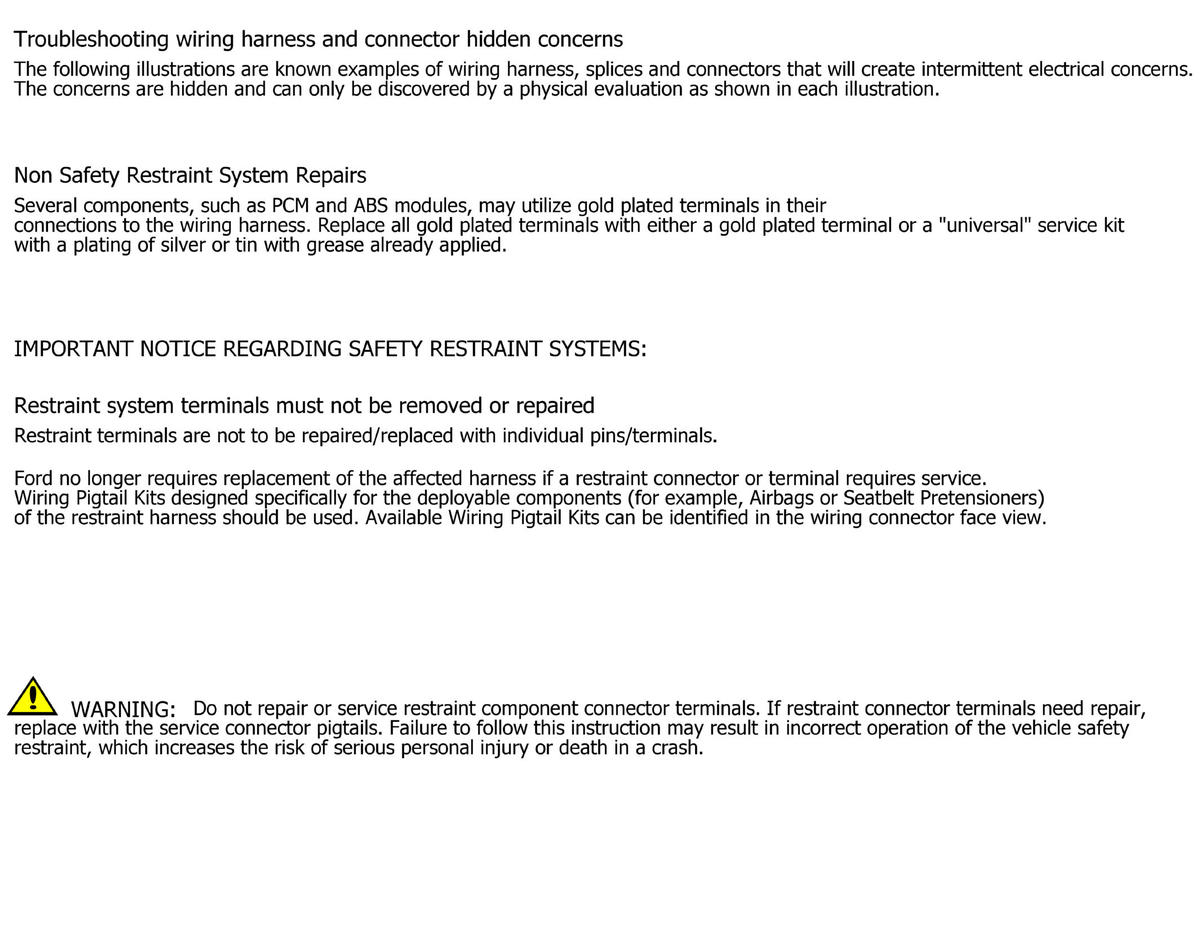

GFDWR72605Courtesy of FORD MOTOR COMPANY

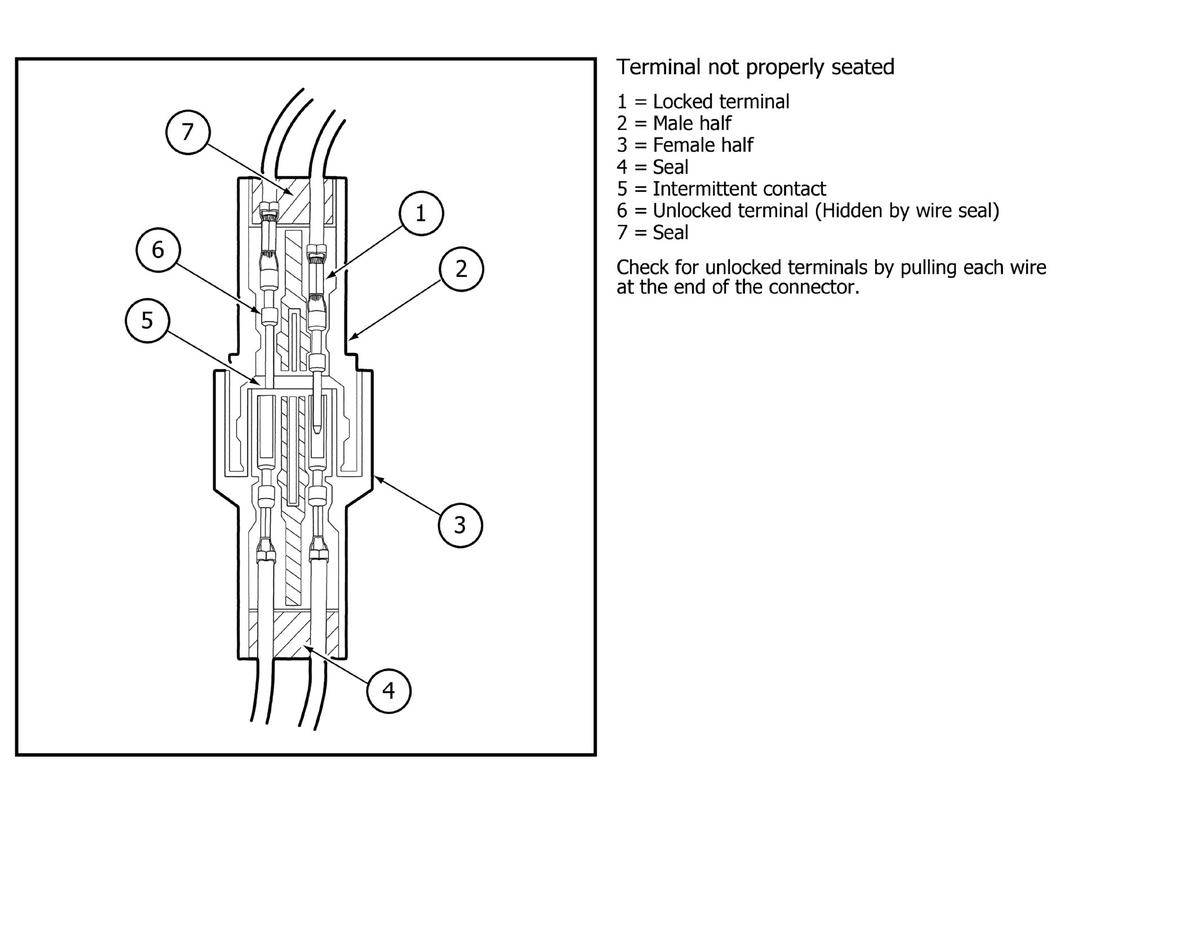

GFDWR72599Courtesy of FORD MOTOR COMPANY

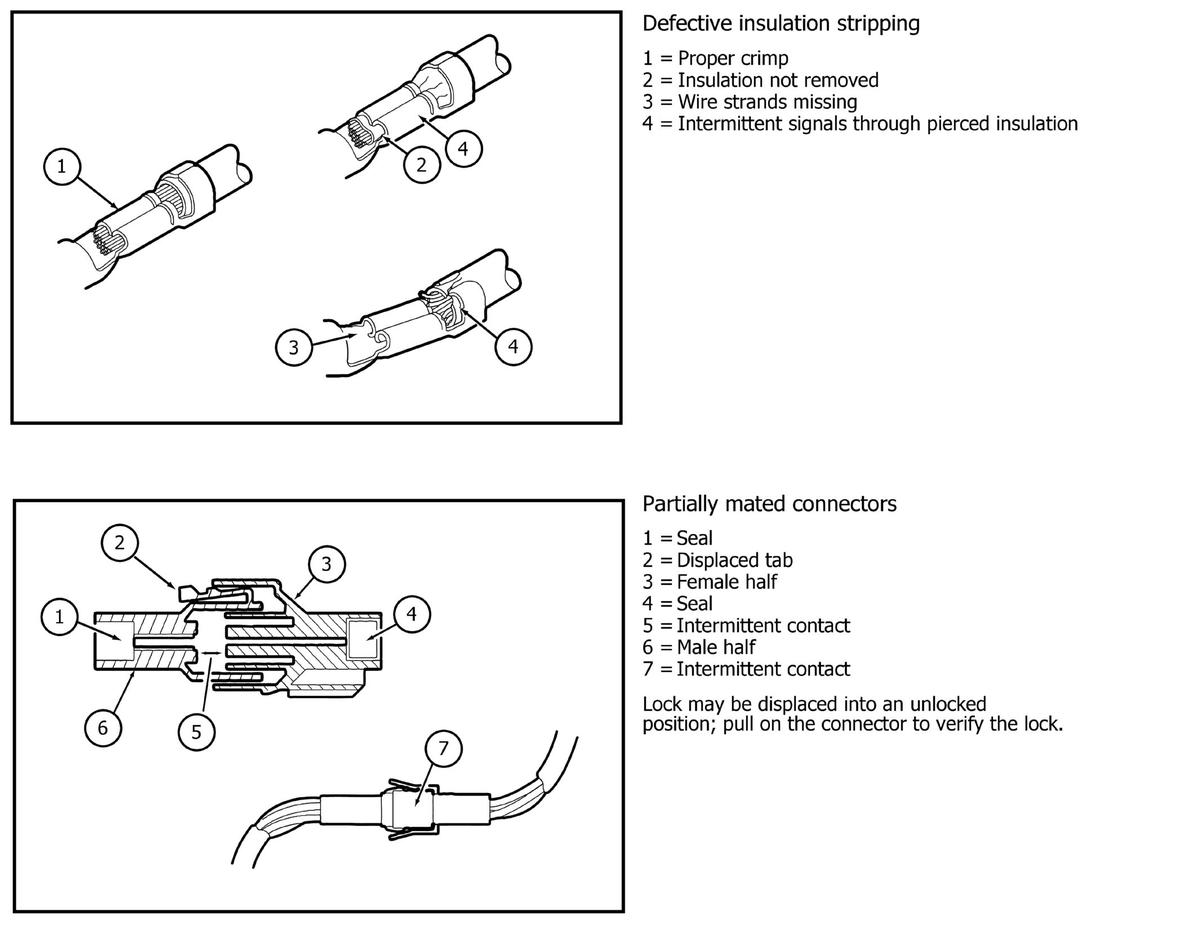

GFDWR72603Courtesy of FORD MOTOR COMPANY

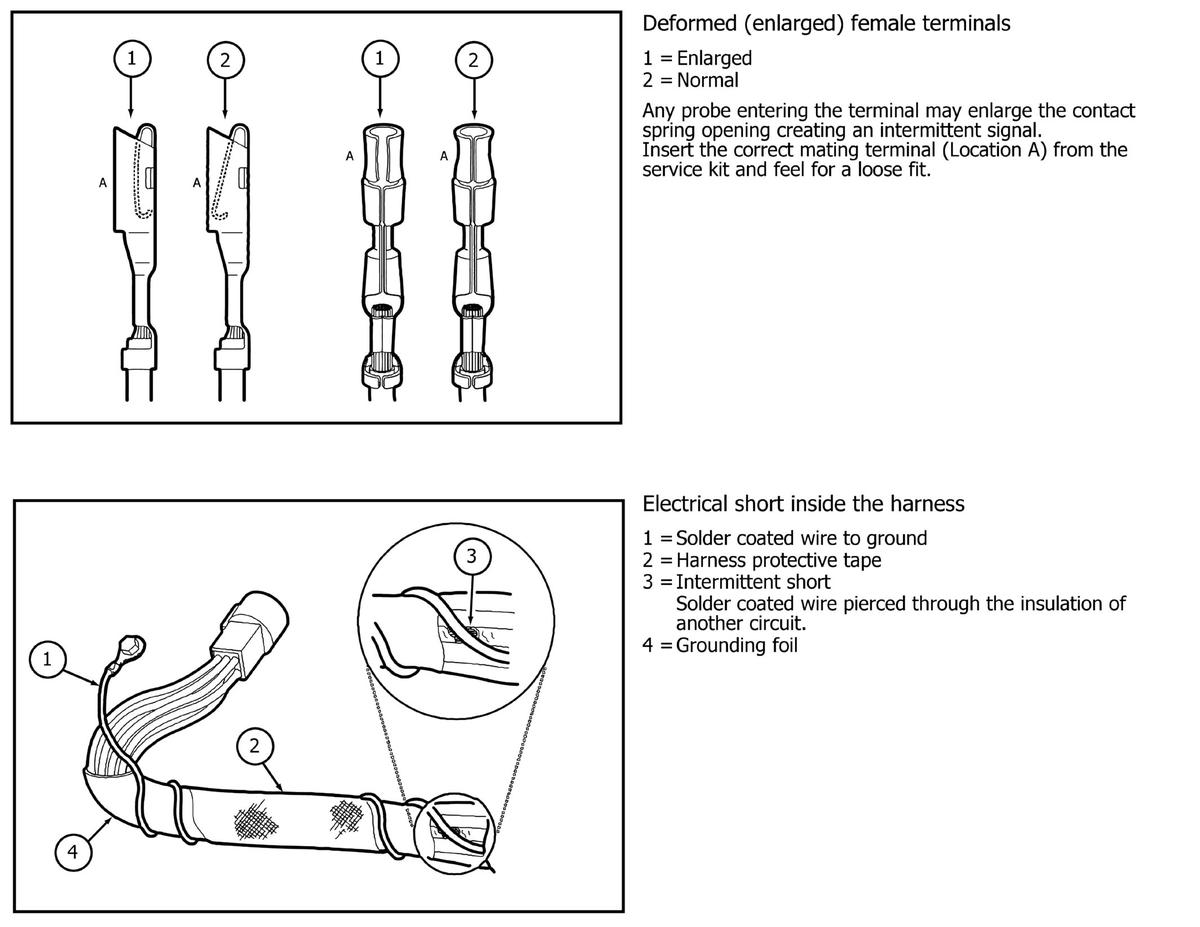

GFDWR72606Courtesy of FORD MOTOR COMPANY

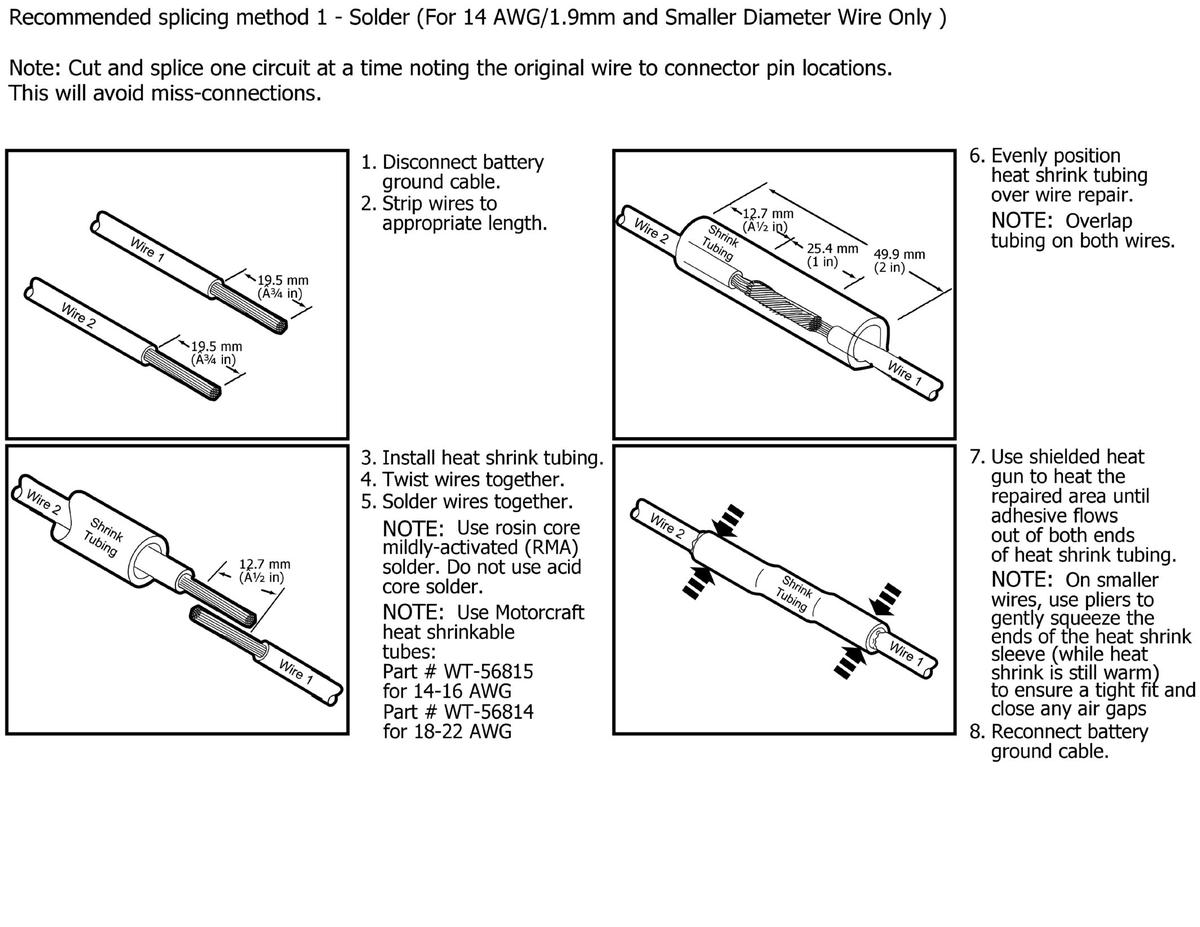

GFDWR72607Courtesy of FORD MOTOR COMPANY

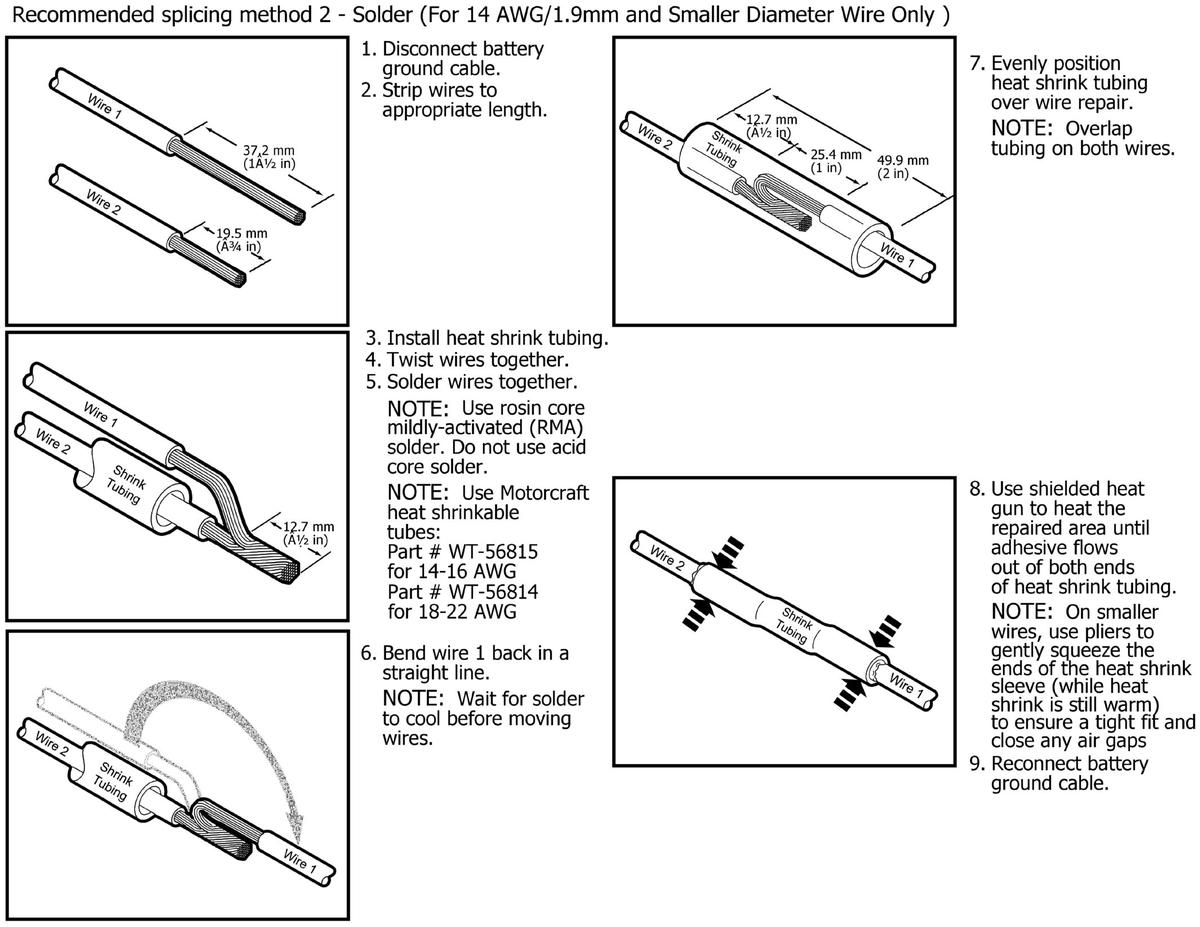

GFDWR72604Courtesy of FORD MOTOR COMPANY

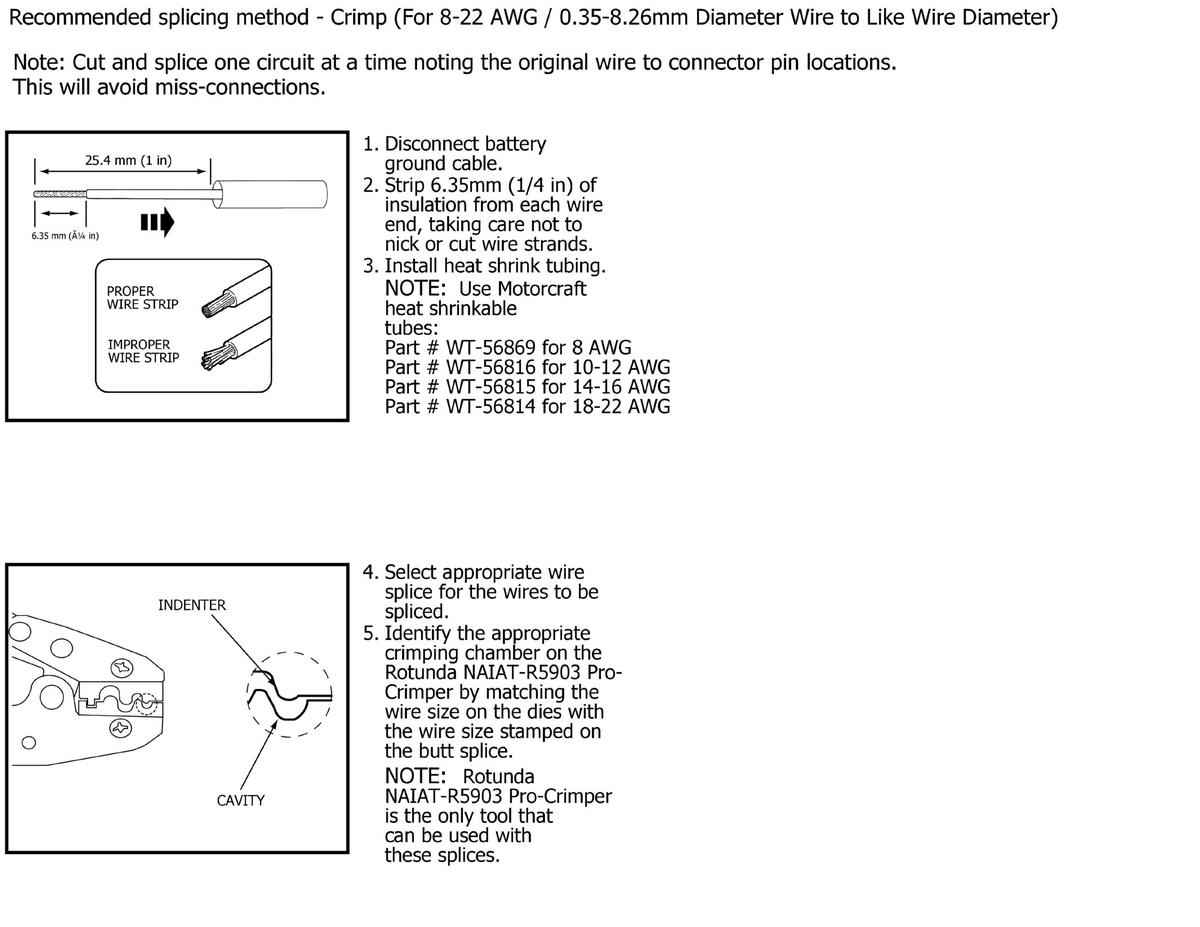

GFDWR72602Courtesy of FORD MOTOR COMPANY

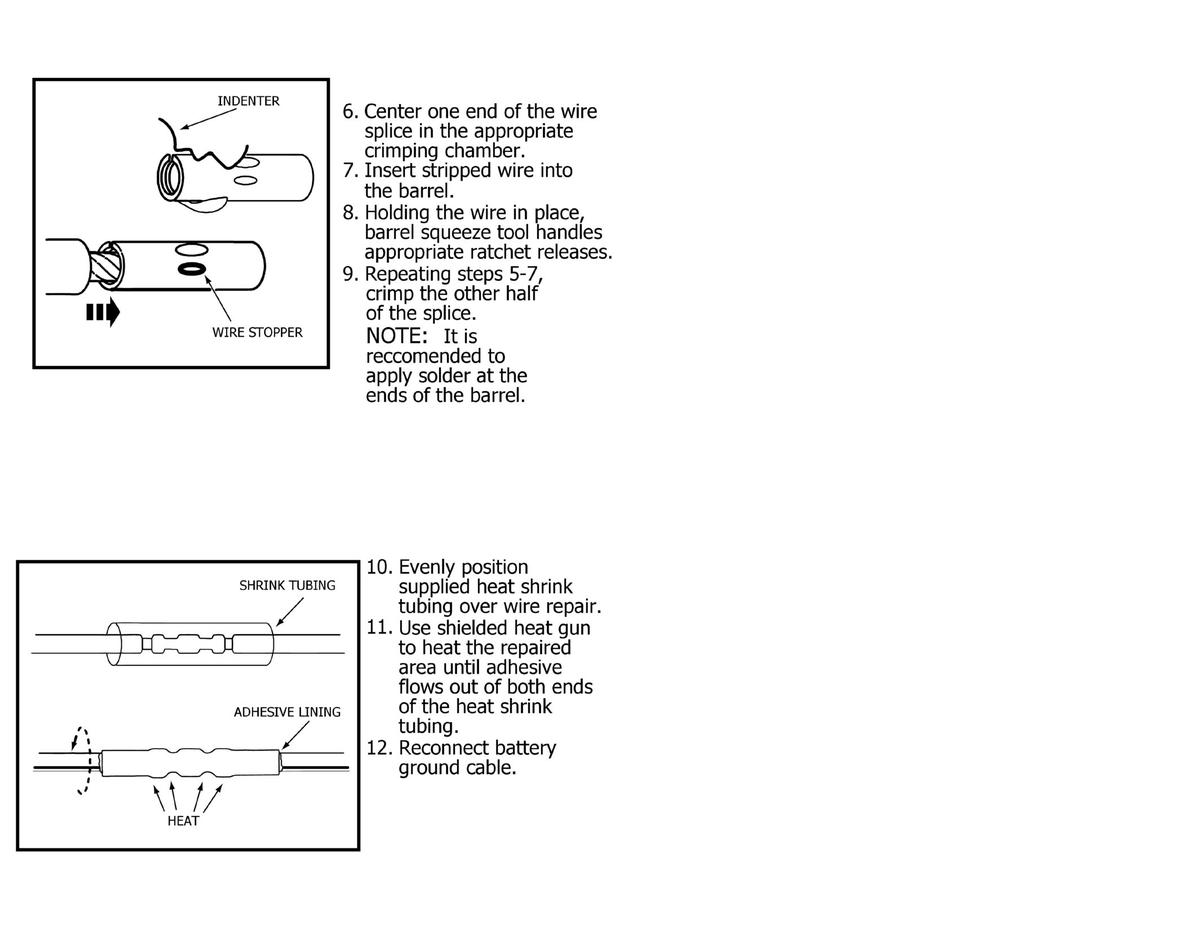

GFDWR72601Courtesy of FORD MOTOR COMPANY

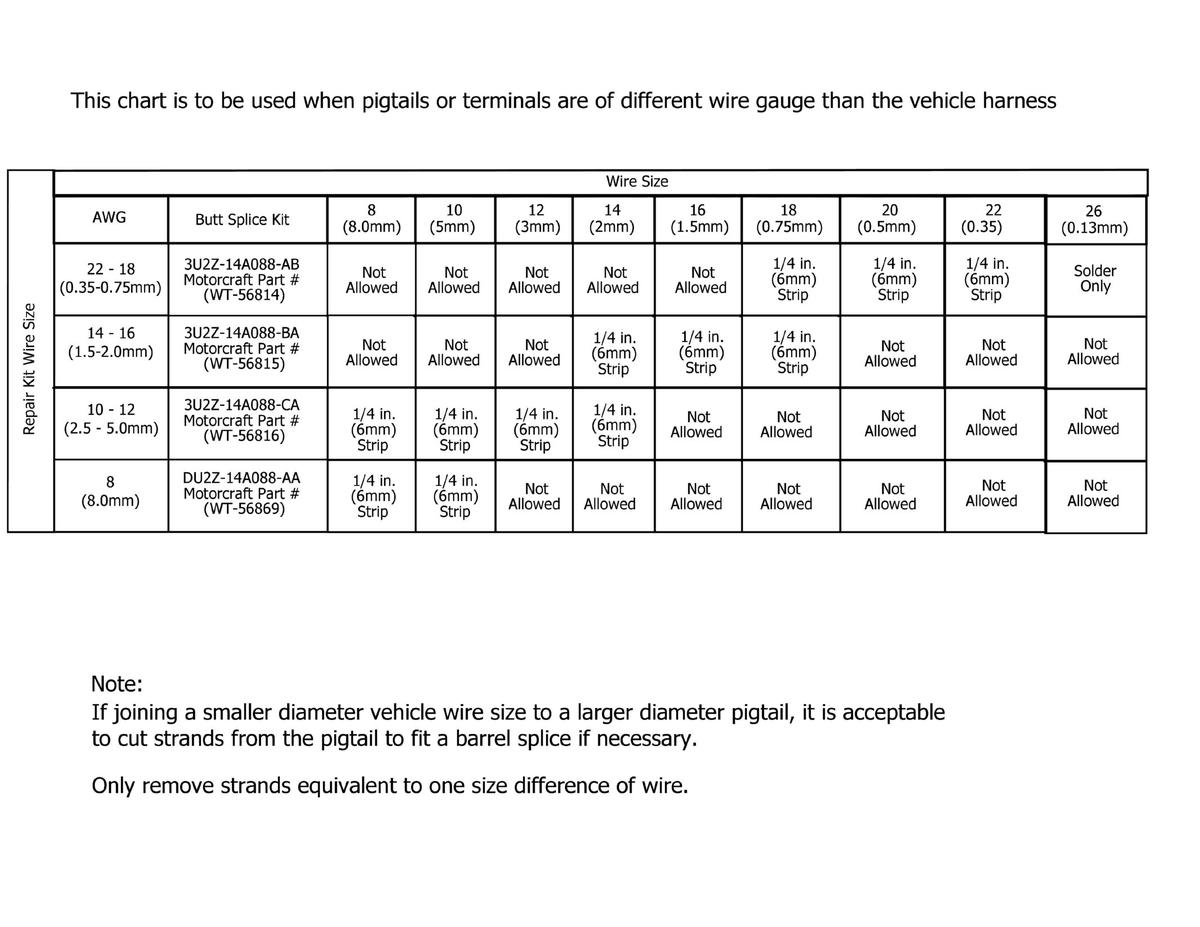

GFDWR72600Courtesy of FORD MOTOR COMPANY
