Connector End View (C925) - INLINE

Connector Viewer - 150

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C925	INLINE	PIA14A005			See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
AU5T-14474-DA	Not Available
XF2T-14474-DA	DU2Z-14474-EA	2.8
97BG-14474-BCA	DU2Z-14474-EA	2.8

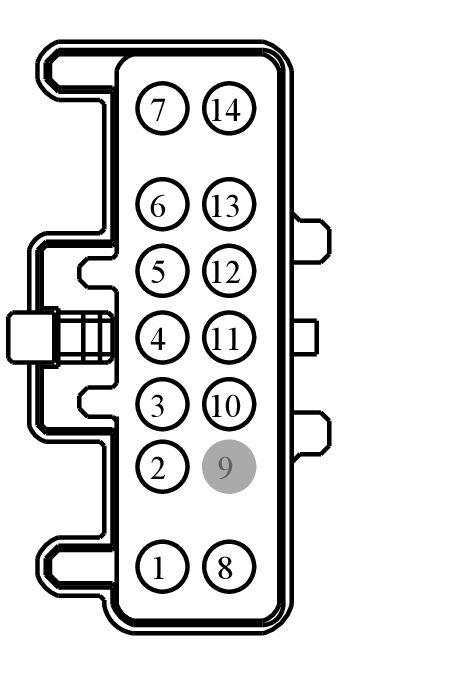

MALE

Harness

PIA

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	* (BK)	*	PIA	N/A
2	* (BK)	*	PIA	N/A
3	* (BK)	*	PIA	N/A
4	* (BK)	*	PIA	N/A
5	* (BK)	*	PIA	N/A
6	* (BK)	*	PIA	N/A
7	* (BK)	*	PIA	N/A
8	* (BK)	*	PIA	N/A
9	*	*	N/A
10	* (BK)	*	PIA	N/A
11	* (BK)	*	PIA	N/A
12	* (BK)	*	PIA	N/A
13	* (BK)	*	PIA	N/A
14	* (BK)	*	PIA	N/A

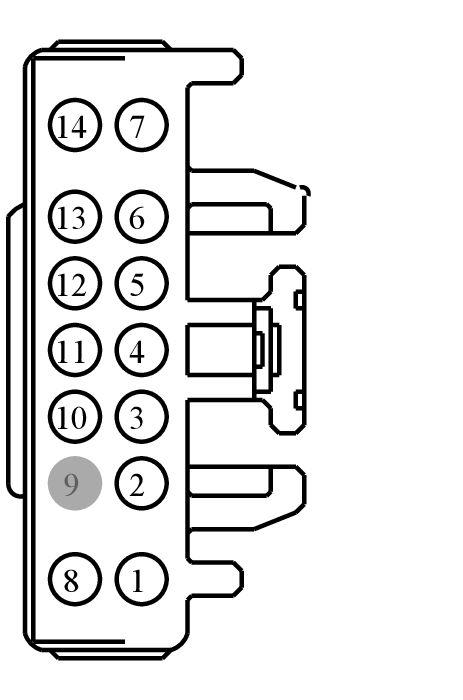

FEMALE

Harness

14A005

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	SBB72 (VT-RD)	10	14A005	XF2T-14474-DA
2	CPR31 (VT-BN)	22	14A005	AU5T-14474-DA
3	CPR38 (WH-BU)	22	14A005	AU5T-14474-DA
4	CPR40 (YE-OG)	22	14A005	AU5T-14474-DA
5	VMC05 (VT-OG)	22	14A005	AU5T-14474-DA
6	CBP23 (BN-YE)	20	14A005	AU5T-14474-DA
7	GD383 (BK-WH)	12	14A005	97BG-14474-BCA
8	SBB85 (GY-RD)	10	14A005	XF2T-14474-DA
9	*	*	N/A
10	CPW01 (BN-BU)	22	14A005	AU5T-14474-DA
11	CPR86 (GY-BN)	22	14A005	AU5T-14474-DA
12	CLS28 (BU-WH)	20	14A005	AU5T-14474-DA
13	CPR87 (VT)	22	14A005	AU5T-14474-DA
14	GD383 (BK-WH)	12	14A005	97BG-14474-BCA

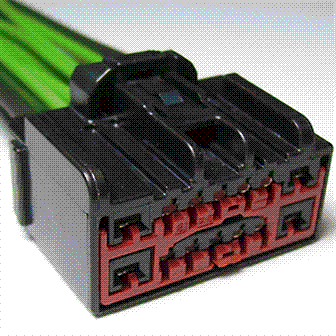

Available Pigtail Kits

Pigtail Kit Part Number WPT-1140

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-ZZB

Gauge:

12 16

Pin material:

Tin & Silver

Cavities:

14

Vehicle Uses:

• Module - Anti-theft
• Module - Auto Lamps
• Module - Power Moonroof
• Module - Sunshade
