Connector End View (C919) - INLINE

Connector Viewer - 150

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C919	INLINE	14A00515C670			See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
9U5T-14421-ZA	EU2Z-14421-BA	0.64
DU5T-14421-FA	EU2Z-14421-BA	0.64
9U5T-14421-BA	EU2Z-14421-BA	0.64
BU5T-14421-HA	EU2Z-14421-CA	1.5
2L1T-14421-BA	EU2Z-14421-CA	1.5
8U5T-14421-CA	EU2Z-14421-DA	2.8
8U5T-14474-BA	DU2Z-14474-CA	0.64
7C3T-14474-CA	DU2Z-14474-DA	1.5
XF2T-14474-BA	EU2Z-14474-AA	2.8

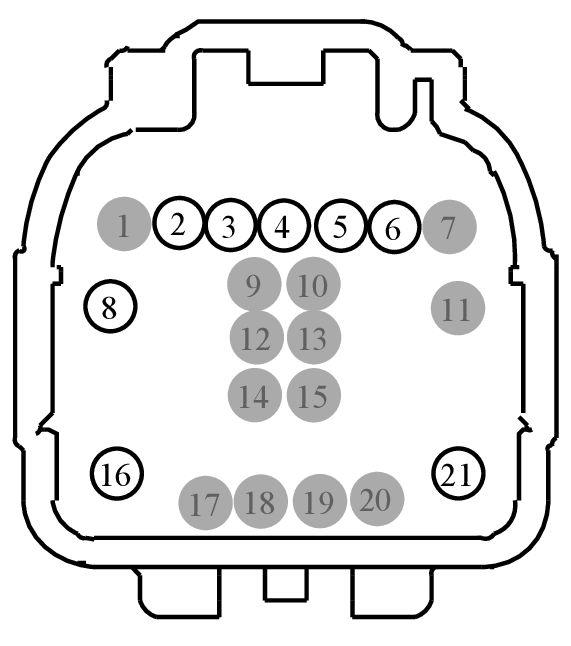

MALE

Harness

14A005

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	*	*	N/A
2	CPR40 (OG)	26	PHEV	9U5T-14421-ZA
2	CPR40 (YE)	26	9U5T-14421-ZA
2	CPR40 (YE-OG)	22	DU5T-14421-FA
3	CPW01 (BN)	22	PHEV	9U5T-14421-BA
3	CPW01 (BN-BU)	22	9U5T-14421-BA
3	CPW01 (BN-BU)	22	DU5T-14421-FA
4	CPR38 (BU)	26	9U5T-14421-ZA
4	CPR38 (WH)	26	9U5T-14421-ZA
4	CPR38 (WH-BU)	22	DU5T-14421-FA
5	CPR31 (VT)	26	9U5T-14421-ZA
5	CPR31 (VT-BN)	22	DU5T-14421-FA
5	CPR31 (VT-WH)	26	9U5T-14421-ZA
6	VMC05 (OG)	26	9U5T-14421-ZA
6	VMC05 (VT-OG)	22	DU5T-14421-FA
7	*	*	N/A
8	CBP23 (BN-YE)	20	BU5T-14421-HA
8	CBP23 (BN-YE)	22	2L1T-14421-BA
9	*	*	N/A
10	*	*	N/A
11	*	*	N/A
12	*	*	N/A
13	*	*	N/A
14	*	*	N/A
15	*	*	N/A
16	SBP27 (BU-RD)	12	8U5T-14421-CA
17	*	*	N/A
18	*	*	N/A
19	*	*	N/A
20	*	*	N/A
	21	GD383 (BK-WH)	12	8U5T-14421-CA

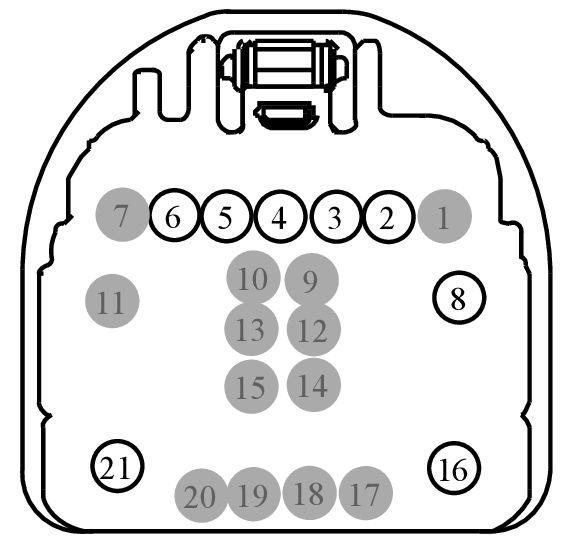

FEMALE

Harness

15C670

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	*	*	N/A
2	CPR40 (YE-OG)	22	8U5T-14474-BA
3	CPW01 (BN-BU)	22	8U5T-14474-BA
4	CPR38 (WH-BU)	22	8U5T-14474-BA
5	CPR31 (VT-BN)	22	8U5T-14474-BA
6	VMC05 (VT-OG)	22	8U5T-14474-BA
7	*	*	N/A
8	CBP23 (BN-YE)	22	7C3T-14474-CA
9	*	*	N/A
10	*	*	N/A
11	*	*	N/A
12	*	*	N/A
13	*	*	N/A
14	*	*	N/A
15	*	*	N/A
16	SBP27 (BU-RD)	10	XF2T-14474-BA
17	*	*	N/A
18	*	*	N/A
19	*	*	N/A
20	*	*	N/A
	21	GD382 (BK-GY)	10	XF2T-14474-BA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1561

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-ARA

Gauge:

14 16 20

Pin material:

Tin

Cavities:

21

Vehicle Uses:

• Connector - Inline

Pigtail Kit Part Number WPT-1425

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-RA

Gauge:

14 16 20

Pin material:

Tin & Silver

Cavities:

21

Vehicle Uses:

• Connector - Inline

Pigtail Kit Part Number WPT-1559

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-RB

Gauge:

14 16 20

Pin material:

Tin & Silver

Cavities:

21

Vehicle Uses:

• Connector - Inline
