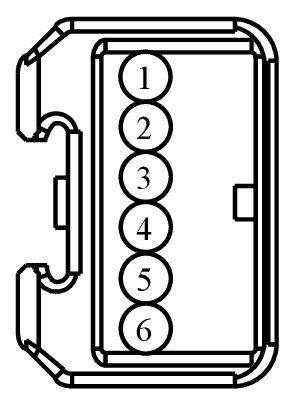

Connector End View (C914B) - RAIN SENSOR MODULE
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C914B |
RAIN SENSOR MODULE |
17C712 |
#N/A |
Not Available |
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
| 96AG-14474-RSA |
FU2Z-14474-AA |
0.64 |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
RRB08 (BN-VT) |
22 |
BW LDW HFW- |
Ford China |
96AG-14474-RSA |
| 2 |
- (-) |
- |
- |
- |
N/A |
| 3 |
CRB08 (BU-GY) |
22 |
BW LDW HFW+ |
Ford China |
96AG-14474-RSA |
| 4 |
CRW13 (GN) |
20 |
SWITCH - REAR WIPER |
Ford China |
96AG-14474-RSA |
| 5 |
VDN05 (GY-YE) |
22 |
CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL |
Ford China |
96AG-14474-RSA |
| 6 |
GD383 (BK-WH) |
22 |
GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT |
Ford China |
96AG-14474-RSA |
