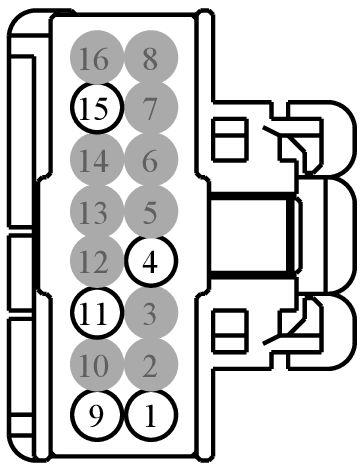

Connector End View (C911) - AUTO-DIMMING INTERIOR MIRROR

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C911	AUTO-DIMMING INTERIOR MIRROR	17C712			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
8U5T-14474-BA	DU2Z-14474-CA	0.64
9U5T-14474-XA	DU2Z-14474-CA	0.64

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBP36 (BU-BN)	20	FUSE - 36 OR CIRCUIT BREAKER	with rain sense	8U5T-14474-BA
1	CBP36 (YE-GY)	20	FUSE - 36 OR CIRCUIT BREAKER	without rain sense	8U5T-14474-BA
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	GD383 (BK-WH)	20	GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT	8U5T-14474-BA
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	CLS28 (BU-WH)	22	CTRL MOD. - RELAY REVERSE LAMP CONTROL (RLC)	8U5T-14474-BA
10	*	*	Not Used	N/A
11	LRD12 (BU)	26	CTRL MOD. - ELECTROCHROMIC MIRROR +	9U5T-14474-XA
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	RRD12 (BN)	26	CTRL MOD. - ELECTROCHROMIC MIRROR -	9U5T-14474-XA
16	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1294

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AJA

Gauge:

18

Pin material:

Silver

Cavities:

16

Vehicle Uses:

• Mirror - Rearview
• Mirror - Rearview (electrochromatic)
