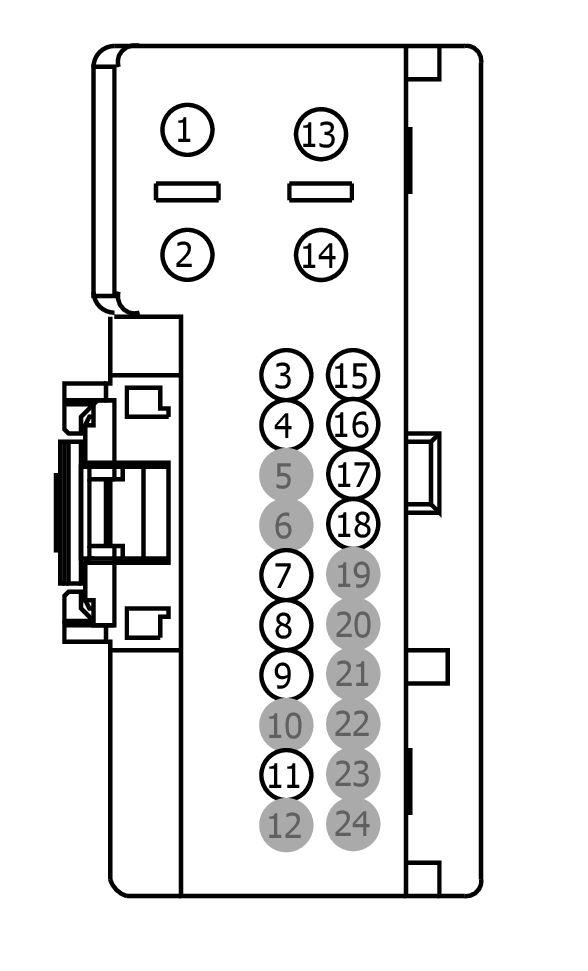

Connector End View (C832) - REAR DOOR MODULE (RDM) RH

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C832	REAR DOOR MODULE (RDM) RH	14632			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
F8VB-14474-AA	EU2Z-14474-AB	2.8
XF2T-14474-BA	EU2Z-14474-AA	2.8
9U5T-14474-XA	DU2Z-14474-CA	0.64
8U5T-14474-BA	DU2Z-14474-CA	0.64

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBP30 (BN-RD)	12	FUSE - 30 OR CIRCUIT BREAKER	MKZ	F8VB-14474-AA
1	SBP30 (BN-RD)	10	FUSE - 30 OR CIRCUIT BREAKER	Fusion	XF2T-14474-BA
2	GD383 (BK-WH)	10	GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT	XF2T-14474-BA
3	CPW59 (VT)	26	SWITCH - POWER WINDOW REAR (BACKLIGHT) # UP OR RIGHT	9U5T-14474-XA
4	LPW54 (BN-GN)	22	CTRL MOD. - WINDOW MOTOR REAR RIGHT # SENSORS +	8U5T-14474-BA
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	VPW56 (BN-BU)	22	CTRL MOD. - WINDOW MOTOR REAR RIGHT # HALL EFFECT SENSOR 1 (DOWN IF LEAD)	8U5T-14474-BA
8	VPW57 (BU-GY)	22	CTRL MOD. - WINDOW MOTOR REAR RIGHT # HALL EFFECT SENSOR 2 (UP IF LEAD)	8U5T-14474-BA
9	CPW23 (GY)	26	SWITCH - POWER WINDOW REAR RIGHT # DOWN	9U5T-14474-XA
10	*	*	Not Used	N/A
11	CPW24 (WH)	26	SWITCH - POWER WINDOW REAR RIGHT # UP	9U5T-14474-XA
12	*	*	Not Used	N/A
13	CPW53 (YE-OG)	12	CTRL MOD. - WINDOW MOTOR REAR RIGHT # DOWN (IF POSITIVE)	F8VB-14474-AA
14	CPW52 (VT-WH)	12	CTRL MOD. - WINDOW MOTOR REAR RIGHT # UP (IF POSITIVE)	F8VB-14474-AA
15	RPL72 (BN)	22	CTRL MOD. - DOOR LOCK # LATCH REAR PASSENGER SIDE	Fusion	8U5T-14474-BA
15	RPL72 (BN-WH)	22	CTRL MOD. - DOOR LOCK # LATCH REAR PASSENGER SIDE	MKZ	8U5T-14474-BA
16	VDN10 (BN)	22	CTRL MOD. - LIN BUS # PASSENGER OR RIGHT HAND DOOR MODULE [OBSOLETE - REPLACED BY VPLA6]	Fusion	8U5T-14474-BA
16	VDN10 (BN-VT)	22	CTRL MOD. - LIN BUS # PASSENGER OR RIGHT HAND DOOR MODULE [OBSOLETE - REPLACED BY VPLA6]	MKZ	8U5T-14474-BA
17	RPW55 (GY-VT)	22	CTRL MOD. - WINDOW MOTOR REAR RIGHT # SENSORS -	8U5T-14474-BA
18	RPW09 (BN)	22	CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT RETURN	MKZ	8U5T-14474-BA
18	RPW09 (BN)	26	CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT RETURN	Fusion	9U5T-14474-XA
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A
21	*	*	Not Used	N/A
22	*	*	Not Used	N/A
23	*	*	Not Used	N/A
24	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1617

Service Part Number:

KU2Z-14S411-ZA

Gauge:

14 20

Pin material:

Tin (Greased) & Silver

Cavities:

24

Vehicle Uses:

• Module - Adjustable Pedal Memory
• Module - Driver Door
• Module - Liftgate
• Module - Passenger Door
• Module - Power Steering
