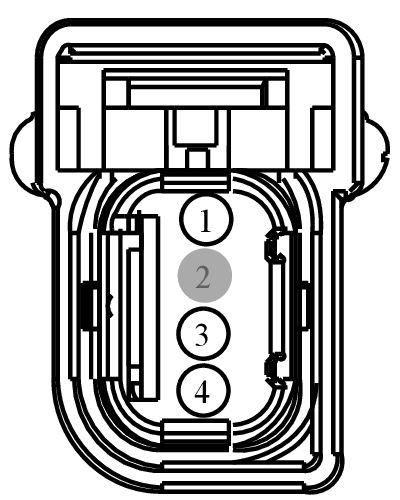

Connector End View (C831) - EXTERIOR DOOR HANDLE, RIGHT REAR

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C831	EXTERIOR DOOR HANDLE, RIGHT REAR	14632			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
8U5T-14474-BA	DU2Z-14474-CA	0.64

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VPK47 (BU)	22	SENSOR - KEYLESS VEHICLE HANDLE REAR PASSENGER SIDE POWER/DATA	8U5T-14474-BA
1	VPK47 (VT)	22	SENSOR - KEYLESS VEHICLE HANDLE REAR PASSENGER SIDE POWER/DATA	MKZ	8U5T-14474-BA
2	*	*	Not Used	N/A
3	VPK03 (YE)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE REAR DRIVER SIDE +	MKZ	8U5T-14474-BA
4	RPK39 (VT-OG)	22	SENSOR - KEYLESS VEHICLE HANDLE	8U5T-14474-BA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1568

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ANB

Gauge:

20

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Connector - Inline
• Lamp - Front Turn
• Switch - Keyless Door Handle

Pigtail Kit Part Number WPT-1443

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ANA

Gauge:

20

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Antenna - Keyless Entry
• Lamp - Front Turn
• Lamp - Side Marker (Rear Fender)
• Switch - Keyless Door Handle
