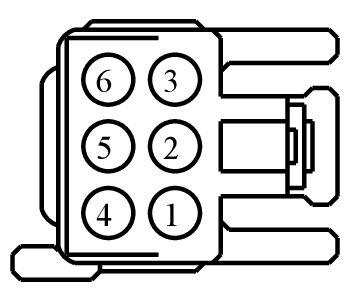

Connector End View (C737) - INTERIOR REAR DOOR HANDLE AMBIENT LIGHTING LAMP LH

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C737	INTERIOR REAR DOOR HANDLE AMBIENT LIGHTING LAMP LH	14633			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
AU5T-14474-DA	Not Available

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VLN73 (GY-BN)	22	CTRL MOD. - AMBIENT LIGHTING LIN BUS	MKZ/MKZ China	AU5T-14474-DA
2	CPL69 (YE-VT)	22	SWITCH - LATCH REAR DRIVER SIDE # CHILD LOCK FEEDBACK	Fusion/MKZ	AU5T-14474-DA
2	CPL89 (BN-BU)	22	CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR REAR DRIVER	MKZ China	AU5T-14474-DA
3	CBX07 (GN-RD)	22	POWER - CTRL MOD. AMBIENT LIGHTING	MKZ/MKZ China	AU5T-14474-DA
4	GD382 (BK-GY)	22	GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT	AU5T-14474-DA
5	CLN25 (VT)	22	RELAY - PUDDLE LAMPS (KERB ILLUM.)	MKZ China	AU5T-14474-DA
6	CPL89 (BN)	22	CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR REAR DRIVER	Fusion	AU5T-14474-DA
6	CPL89 (BN-BU)	22	CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR REAR DRIVER	MKZ/MKZ China	AU5T-14474-DA

Available Pigtail Kits

Pigtail Kit Part Number WPT-962

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z- 14S411-JBB

Gauge:

14

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Mating Connector WPT-1299
• Switch - Gear Shift Select/Neutral Safety
• Switch - Overdrive Cancel
• Switch - Power Sliding Door
