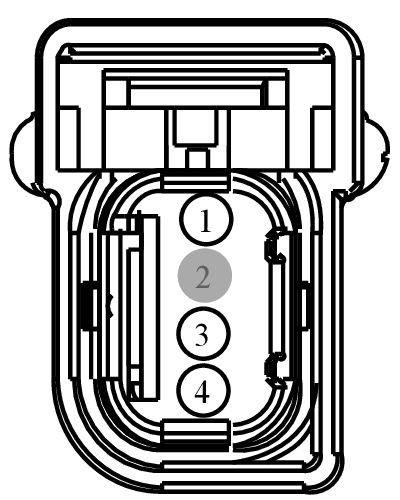

Connector End View (C729) - EXTERIOR DOOR HANDLE, LEFT REAR
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C729 | EXTERIOR DOOR HANDLE, LEFT REAR | 14633 | part# N/A | See Below | ||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 8U5T-14474-BA | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VPK46 (GY) | 22 | SENSOR - KEYLESS VEHICLE HANDLE REAR DRIVER SIDE POWER/DATA | 8U5T-14474-BA | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | VPK03 (YE) | 22 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE REAR DRIVER SIDE + | MKZ | 8U5T-14474-BA | |||
| 4 | RPK39 (VT) | 22 | SENSOR - KEYLESS VEHICLE HANDLE | Fusion | 8U5T-14474-BA | |||
| 4 | RPK39 (VT-OG) | 22 | SENSOR - KEYLESS VEHICLE HANDLE | MKZ | 8U5T-14474-BA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1568
Service Part Number:
FU2Z-14S411-ANB
Gauge:
20
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Connector - Inline
- Lamp - Front Turn
- Switch - Keyless Door Handle
Pigtail Kit Part Number WPT-1443
Service Part Number:
FU2Z-14S411-ANA
Gauge:
20
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Antenna - Keyless Entry
- Lamp - Front Turn
- Lamp - Side Marker (Rear Fender)
- Switch - Keyless Door Handle
