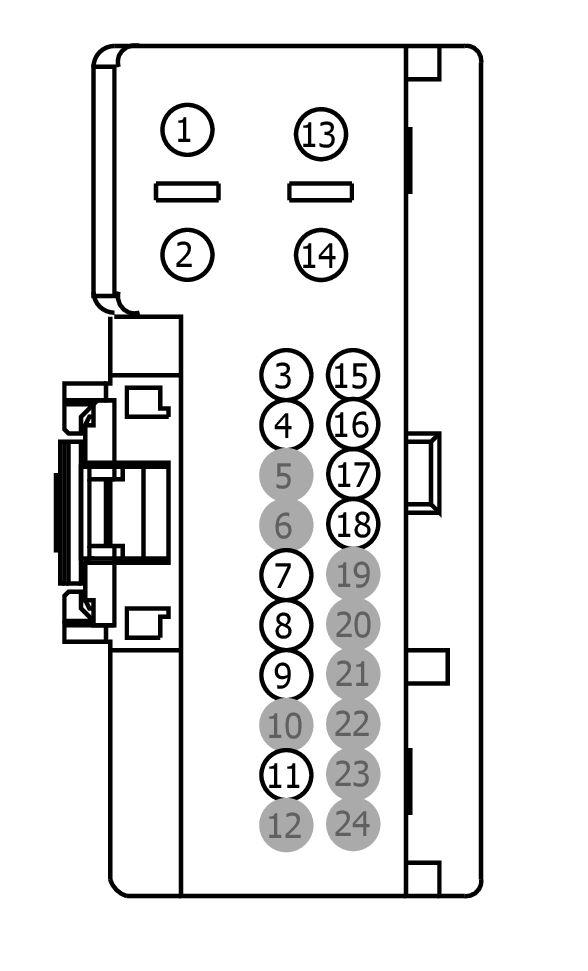

Connector End View (C728) - REAR DOOR MODULE (RDM) LH

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C728	REAR DOOR MODULE (RDM) LH	14633			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
F8VB-14474-AA	EU2Z-14474-AB	2.8
9U5T-14474-XA	DU2Z-14474-CA	0.64
8U5T-14474-BA	DU2Z-14474-CA	0.64

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBP29 (GY-RD)	12	FUSE - 29 OR CIRCUIT BREAKER	F8VB-14474-AA
2	GD382 (BK-GY)	12	GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT	F8VB-14474-AA
3	CPW58 (YE)	26	SWITCH - POWER WINDOW REAR (BACKLIGHT) # DOWN OR LEFT	9U5T-14474-XA
4	LPW48 (YE-GY)	22	CTRL MOD. - WINDOW MOTOR REAR LEFT # SENSORS +	8U5T-14474-BA
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	VPW50 (GN-OG)	22	CTRL MOD. - WINDOW MOTOR REAR LEFT # HALL EFFECT SENSOR 1 (DOWN IF LEAD)	8U5T-14474-BA
8	VPW51 (BN-YE)	22	CTRL MOD. - WINDOW MOTOR REAR LEFT # HALL EFFECT SENSOR 2 (UP IF LEAD)	8U5T-14474-BA
9	CPW21 (BN)	26	SWITCH - POWER WINDOW REAR LEFT # DOWN	9U5T-14474-XA
10	*	*	Not Used	N/A
11	CPW22 (GN)	26	SWITCH - POWER WINDOW REAR LEFT # UP	9U5T-14474-XA
12	*	*	Not Used	N/A
13	CPW47 (VT-OG)	12	CTRL MOD. - WINDOW MOTOR REAR LEFT # DOWN (IF POSITIVE)	F8VB-14474-AA
14	CPW46 (GY-BN)	12	CTRL MOD. - WINDOW MOTOR REAR LEFT # UP (IF POSITIVE)	F8VB-14474-AA
15	RPL71 (BU)	22	CTRL MOD. - DOOR LOCK # LATCH REAR DRIVER SIDE	8U5T-14474-BA
16	VDN09 (WH)	22	CTRL MOD. - LIN BUS # DRIVER OR LEFT HAND DOOR MODULE [OBSOLETE - REPLACED BY VPLA4]	Fusion	8U5T-14474-BA
16	VDN09 (WH-GN)	22	CTRL MOD. - LIN BUS # DRIVER OR LEFT HAND DOOR MODULE [OBSOLETE - REPLACED BY VPLA4]	MKZ	8U5T-14474-BA
17	RPW49 (BU-BN)	22	CTRL MOD. - WINDOW MOTOR REAR LEFT # SENSORS -	8U5T-14474-BA
18	RPW07 (GY)	26	CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN	Fusion	9U5T-14474-XA
18	RPW07 (GY-OG)	22	CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN	MKZ	8U5T-14474-BA
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A
21	*	*	Not Used	N/A
22	*	*	Not Used	N/A
23	*	*	Not Used	N/A
24	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1617

Service Part Number:

KU2Z-14S411-ZA

Gauge:

14 20

Pin material:

Tin (Greased) & Silver

Cavities:

24

Vehicle Uses:

• Module - Adjustable Pedal Memory
• Module - Driver Door
• Module - Liftgate
• Module - Passenger Door
• Module - Power Steering
