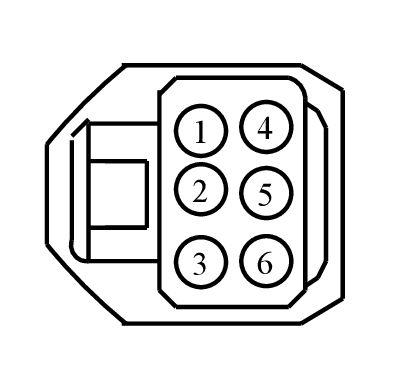

Connector End View (C703) - REAR DOOR WINDOW REGULATOR MOTOR LH
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C703 | REAR DOOR WINDOW REGULATOR MOTOR LH | 14633 | part# N/A | See Below | ||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-BFA | DU2Z-14474-FA | 2.8 |
| 97BG-14474-BDA | DU2Z-14474-FA | 2.8 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CPW47 (VT-OG) | 12 | CTRL MOD. - WINDOW MOTOR REAR LEFT # DOWN (IF POSITIVE) | 97BG-14474-BFA | ||||
| 2 | VPW50 (GN-OG) | 22 | CTRL MOD. - WINDOW MOTOR REAR LEFT # HALL EFFECT SENSOR 1 (DOWN IF LEAD) | 97BG-14474-BDA | ||||
| 3 | LPW48 (YE-GY) | 22 | CTRL MOD. - WINDOW MOTOR REAR LEFT # SENSORS + | 97BG-14474-BDA | ||||
| 4 | CPW46 (GY-BN) | 12 | CTRL MOD. - WINDOW MOTOR REAR LEFT # UP (IF POSITIVE) | 97BG-14474-BFA | ||||
| 5 | VPW51 (BN-YE) | 22 | CTRL MOD. - WINDOW MOTOR REAR LEFT # HALL EFFECT SENSOR 2 (UP IF LEAD) | 97BG-14474-BDA | ||||
| 6 | RPW49 (BU-BN) | 22 | CTRL MOD. - WINDOW MOTOR REAR LEFT # SENSORS - | 97BG-14474-BDA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1344
Service Part Number:
DU2Z-14S411-AEA
Gauge:
16
Pin material:
Tin
Cavities:
6
Vehicle Uses:
- Motor - Power Window - LH - Front
- Motor - Power Window - LH - Rear
- Motor - Power Window - RH - Front
- Motor - Power Window - RH - Rear
