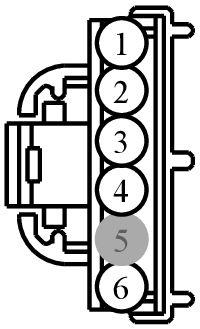

Connector End View (C701) - REAR DOOR WINDOW CONTROL SWITCH LH
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C701 | REAR DOOR WINDOW CONTROL SWITCH LH | 14633 | part# N/A | See Below | ||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-LA | DU2Z-14474-BA | 0.64 |
| 9U5T-14474-NA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | RPW07 (GY-RD) | 22 | CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN | MKZ | 9U5T-14474-LA | |||
| 1 | RPW07 (OG) | 26 | CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN | Fusion | 9U5T-14474-NA | |||
| 2 | CPW22 (GN) | 26 | SWITCH - POWER WINDOW REAR LEFT # UP | 9U5T-14474-NA | ||||
| 3 | CPW21 (BN) | 26 | SWITCH - POWER WINDOW REAR LEFT # DOWN | 9U5T-14474-NA | ||||
| 4 | CPW58 (YE) | 26 | SWITCH - POWER WINDOW REAR (BACKLIGHT) # DOWN OR LEFT | 9U5T-14474-NA | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | RPW07 (GY) | 22 | CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN | MKZ | 9U5T-14474-LA | |||
| 6 | RPW07 (GY) | 26 | CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN | Fusion | 9U5T-14474-NA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1028
Service Part Number:
9U2Z-14S411-APA
Gauge:
18
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Switch - Power Window - LH - Rear
- Switch - Power Window - Passenger (Front)
- Switch - Power Window - RH - Rear
