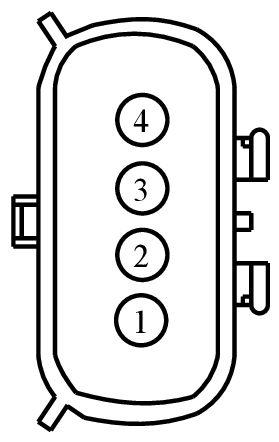

Connector End View (C698) - EXTERIOR MIRROR FLASHING LED, RIGHT

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C698	EXTERIOR MIRROR FLASHING LED, RIGHT	14630			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CAP23 (*)	*	POLICE - FLASHER REAR	N/A
2	CAP28 (*)	*	POLICE - BUTTON FUNCTION 1	N/A
3	CAP26 (*)	*	POLICE - WIGWAG SYNC	N/A
4	GD383 (*)	*	GROUND - PILLAR C OR QUARTER PANEL RIGHT	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1432

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ABA

Gauge:

16

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Lamp - Flashing LED
• Lamp - Park/Turn/Stop
• Speaker - Front
