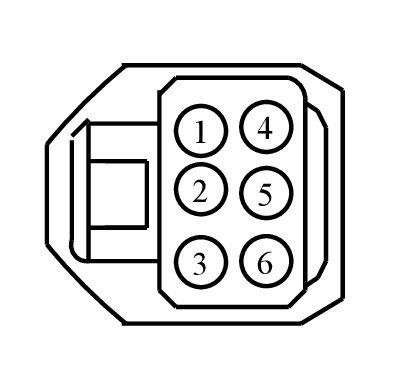

Connector End View (C646) - PASSENGER DOOR WINDOW REGULATOR MOTOR
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C646 | PASSENGER DOOR WINDOW REGULATOR MOTOR | 14630 | part# N/A | See Below | ||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-BFA | DU2Z-14474-FA | 2.8 |
| 97BG-14474-BDA | DU2Z-14474-FA | 2.8 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CPW41 (GY-YE) | 12 | CTRL MOD. - WINDOW MOTOR FRONT PASSENGER # DOWN (IF POSITIVE) | 97BG-14474-BFA | ||||
| 2 | VPW44 (BU-OG) | 22 | CTRL MOD. - WINDOW MOTOR PASSENGER # HALL EFFECT SENSOR 1 (DOWN IF LEAD) | 97BG-14474-BDA | ||||
| 3 | LPW42 (VT-GY) | 22 | CTRL MOD. - WINDOW MOTOR PASSENGER # SENSORS | 97BG-14474-BDA | ||||
| 4 | CPW40 (WH) | 12 | CTRL MOD. - WINDOW MOTOR FRONT PASSENGER # UP (IF POSITIVE) | 97BG-14474-BFA | ||||
| 5 | VPW45 (GN-WH) | 22 | CTRL MOD. - WINDOW MOTOR PASSENGER # HALL EFFECT SENSOR 2 (UP IF LEAD) | 97BG-14474-BDA | ||||
| 6 | RPW43 (YE-GN) | 22 | CTRL MOD. - WINDOW MOTOR PASSENGER # SENSORS | 97BG-14474-BDA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1344
Service Part Number:
DU2Z-14S411-AEA
Gauge:
16
Pin material:
Tin
Cavities:
6
Vehicle Uses:
- Motor - Power Window - LH - Front
- Motor - Power Window - LH - Rear
- Motor - Power Window - RH - Front
- Motor - Power Window - RH - Rear
