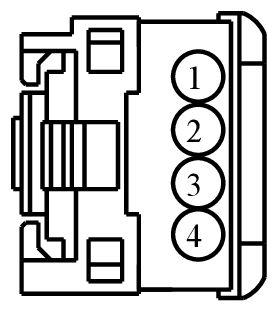

Connector End View (C641) - FRONT DOOR LOCK SWITCH RH
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C641 |
FRONT DOOR LOCK SWITCH RH |
14630 |
part# N/A |
Not Available |
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
| 9U5T-14474-DA |
DU2Z-14474-AA |
0.64 |
| 9U5T-14474-YA |
DU2Z-14474-AA |
0.64 |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CPL78 (VT-WH) |
26 |
CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER ILLUMINATION |
9U5T-14474-YA |
| 2 |
CPL16 (YE-GN) |
26 |
SWITCH - TRIM DOOR LOCK PASSENGER # UNLOCK |
9U5T-14474-YA |
| 3 |
RPW05 (GN-BN) |
22 |
CTRL MOD. - POWER WINDOW SWITCH FRONT PASSENGER RETURN |
9U5T-14474-DA |
| 4 |
CPL15 (BU) |
26 |
SWITCH - TRIM DOOR LOCK PASSENGER # LOCK |
9U5T-14474-YA |
