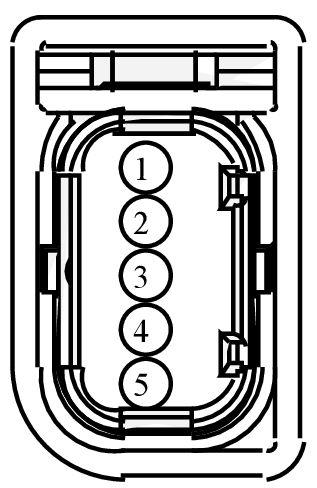

Connector End View (C640) - EXTERIOR FRONT DOOR HANDLE RH

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C640	EXTERIOR FRONT DOOR HANDLE RH	14630			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
8U5T-14474-BA	DU2Z-14474-CA	0.64

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VPK40 (WH-OG)	22	SENSOR - KEYLESS VEHICLE HANDLE PASSENGER POWER/DATA	8U5T-14474-BA
2	VPK02 (VT-WH)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER +	8U5T-14474-BA
3	RPK02 (GY-YE)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER -	8U5T-14474-BA
4	VPK03 (YE)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE REAR DRIVER SIDE +	8U5T-14474-BA
5	RPK39 (VT-OG)	22	SENSOR - KEYLESS VEHICLE HANDLE	8U5T-14474-BA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1525

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-AAA

Gauge:

20

Pin material:

Silver

Cavities:

5

Vehicle Uses:

• Antenna - Keyless Entry
• Switch - Keyless Door Handle
