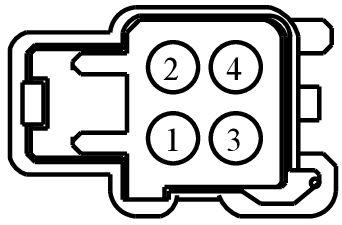

Connector End View (C621) - INLINE
Connector Viewer - 150
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C621 | INLINE | 1440114401 | See Below | |||||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
MALE
Harness
14401
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | VME07 (WH) | 18 | N/A | |||
| 2 | RME07 (WH-BN) | 18 | N/A | |||
| 3 | VME10 (WH-OG) | 18 | N/A | |||
| 4 | RME10 (WH-VT) | 18 | ||||
FEMALE
Harness
14401
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | VME07 (WH) | 18 | N/A | |||
| 2 | RME07 (WH-BN) | 18 | N/A | |||
| 3 | VME10 (WH-OG) | 18 | N/A | |||
| 4 | RME10 (WH-VT) | 18 | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1076
Service Part Number:
3U2Z-14S411-BUB
Gauge:
14
Pin material:
Tin (greased)
Cavities:
4
Vehicle Uses:
- Connector - Inline
- Element - Heated Seat
- Lamp - Ash Tray
- Lamp - Courtesy - Footwell
- Module - Remote Keyless Entry
- Motor - Heater/AC Blower (Auxiliary)
- Radio - Amplifier
- Switch - Convertable Top
Pigtail Kit Part Number WPT-977
Service Part Number:
3U2Z-14S411-LUB
Gauge:
14
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Element - Heated Seat
- Lamp - Ambient Lighting
- Lamp - Courtesy - Footwell
- Mirror - Sideview
- Motor - Adjustable Pedal
- Motor - Steering Column Adjust
- Solenoid - Brake Shift Park Interlock
- Speaker - Subwoofer
- Switch - Gear Shift Select/Neutral Safety
- Transceiver - Passive Anti-Theft (PATS)
