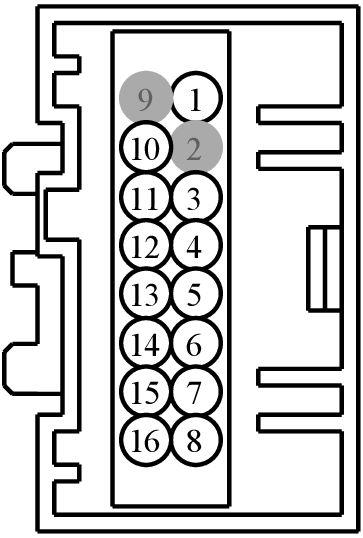

Connector End View (C601) - EXTERIOR MIRROR RH
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C601 |
EXTERIOR MIRROR RH |
14630 |
part# N/A |
Not Available |
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
| DU5T-14421-BB |
EU2Z-14421-AA |
0.64 |
| DU5T-14421-CB |
EU2Z-14421-AA |
0.64 |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CRD14 (WH) |
26 |
CTRL MOD. - HEATER MIRROR RIGHT |
DU5T-14421-BB |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
CPM34 (WH) |
26 |
CTRL MOD. - RIGHT MIRROR UP |
DU5T-14421-BB |
| 4 |
RPM08 (GN-WH) |
26 |
CTRL MOD. - RIGHT MIRROR RETURN |
DU5T-14421-BB |
| 5 |
CRB07 (VT-WH) |
26 |
CTRL MOD. - BLINDSPOT WARNING # LED MIRROR RIGHT OR PASSENGER + |
DU5T-14421-BB |
| 6 |
CPM33 (VT) |
26 |
CTRL MOD. - RIGHT MIRROR RIGHT |
DU5T-14421-BB |
| 7 |
CPM40 (OG-WH) |
26 |
CTRL MOD. - RIGHT MIRROR FOLD OUT (DRV) |
DU5T-14421-BB |
| 8 |
GD383 (BK-WH) |
22 |
GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT |
DU5T-14421-CB |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
CLS26 (BU-WH) |
26 |
CTRL MOD. - TURN LAMP RIGHT MIRROR + |
DU5T-14421-BB |
| 11 |
CLN32 (BN-YE) |
26 |
CTRL MOD. - PUDDLE LAMP RIGHT |
DU5T-14421-BB |
| 12 |
LPM12 (BU) |
26 |
CTRL MOD. - SENSORS MIRROR POSITION (RIGHT) + |
DU5T-14421-BB |
| 13 |
VPM37 (BU-OG) |
26 |
SENSOR - RIGHT MIRROR POSITION # HORIZONTAL |
DU5T-14421-BB |
| 14 |
VPM38 (BN-WH) |
26 |
SENSOR - RIGHT MIRROR POSITION # VERTICAL |
DU5T-14421-BB |
| 15 |
RRB07 (YE) |
26 |
CTRL MOD. - BLINDSPOT WARNING # LED MIRROR RIGHT OR PASSENGER - |
DU5T-14421-BB |
| 16 |
CPM07 (BN) |
26 |
CTRL MOD. - RIGHT MIRROR FOLD IN |
DU5T-14421-BB |
