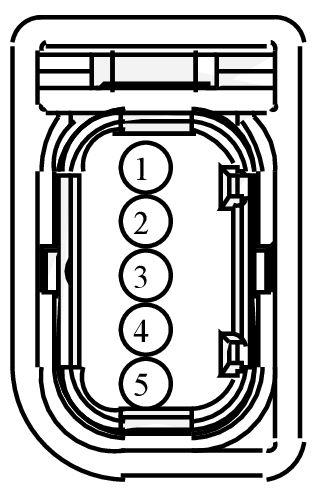

Connector End View (C543) - EXTERIOR FRONT DOOR HANDLE LH

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C543	EXTERIOR FRONT DOOR HANDLE LH	14631			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
8U5T-14474-BA	DU2Z-14474-CA	0.64

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VPK39 (GN-VT)	22	SENSOR - KEYLESS VEHICLE HANDLE DRIVER POWER/DATA	8U5T-14474-BA
2	VPK01 (BN-YE)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER +	8U5T-14474-BA
3	RPK01 (WH-GN)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER -	8U5T-14474-BA
4	VPK03 (YE)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE REAR DRIVER SIDE +	8U5T-14474-BA
5	RPK39 (VT-OG)	22	SENSOR - KEYLESS VEHICLE HANDLE	8U5T-14474-BA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1525

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-AAA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:
