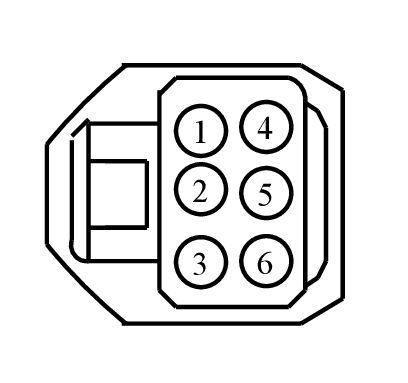

Connector End View (C518) - DRIVER DOOR WINDOW REGULATOR MOTOR
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C518 | DRIVER DOOR WINDOW REGULATOR MOTOR | 14631 | part# N/A | See Below | ||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-BFA | DU2Z-14474-FA | 2.8 |
| 97BG-14474-BDA | DU2Z-14474-FA | 2.8 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CPW35 (GN) | 12 | CTRL MOD. - WINDOW MOTOR DRIVER # DOWN (IF POSITIVE) | 97BG-14474-BFA | ||||
| 2 | VPW38 (YE-BU) | 22 | CTRL MOD. - WINDOW MOTOR DRIVER # HALL EFFECT SENSOR 1 (DOWN IF LEAD) | 97BG-14474-BDA | ||||
| 3 | LPW36 (WH-BN) | 22 | CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS | 97BG-14474-BDA | ||||
| 4 | CPW34 (BU) | 12 | CTRL MOD. - WINDOW MOTOR DRIVER # UP (IF POSITIVE) | 97BG-14474-BFA | ||||
| 5 | VPW39 (BU-WH) | 22 | CTRL MOD. - WINDOW MOTOR DRIVER # HALL EFFECT SENSOR 2 (UP IF LEAD) | 97BG-14474-BDA | ||||
| 6 | RPW37 (VT-GN) | 22 | CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS | 97BG-14474-BDA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1344
Service Part Number:
DU2Z-14S411-AEA
Gauge:
16
Pin material:
Tin
Cavities:
6
Vehicle Uses:
- Motor - Power Window - LH - Front
- Motor - Power Window - LH - Rear
- Motor - Power Window - RH - Front
- Motor - Power Window - RH - Rear
