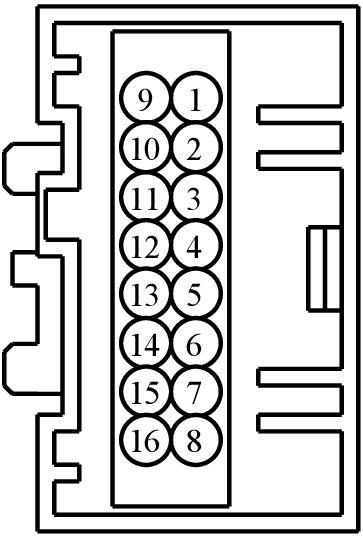

Connector End View (C516) - EXTERIOR MIRROR LH
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C516 |
EXTERIOR MIRROR LH |
14631 |
part# N/A |
Not Available |
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
| 1L2T-14421-BA |
Not Available |
| DU5T-14421-BB |
EU2Z-14421-AA |
0.64 |
| DU5T-14421-CB |
EU2Z-14421-AA |
0.64 |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CRD13 (OG-WH) |
26 |
CTRL MOD. - HEATER MIRROR LEFT |
DU5T-14421-BB |
| 2 |
RRD12 (BN) |
22 |
CTRL MOD. - ELECTROCHROMIC MIRROR - |
1L2T-14421-BA |
| 3 |
CPM29 (GN) |
26 |
CTRL MOD. - LEFT MIRROR UP |
DU5T-14421-BB |
| 4 |
RPM05 (VT-GN) |
26 |
CTRL MOD. - LEFT MIRROR RETURN |
DU5T-14421-BB |
| 5 |
CRB06 (GN-WH) |
26 |
CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER + |
DU5T-14421-BB |
| 6 |
CPM28 (BU) |
26 |
CTRL MOD. - LEFT MIRROR RIGHT |
DU5T-14421-BB |
| 7 |
CPM39 (GY) |
26 |
CTRL MOD. - LEFT MIRROR FOLD OUT (DRV) |
DU5T-14421-BB |
| 8 |
GD382 (BK-GY) |
22 |
GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT |
DU5T-14421-CB |
| 9 |
LRD12 (BU-GY) |
22 |
CTRL MOD. - ELECTROCHROMIC MIRROR + |
1L2T-14421-BA |
| 10 |
CLS22 (BN-WH) |
26 |
CTRL MOD. - TURN LAMP LEFT MIRROR + |
DU5T-14421-BB |
| 11 |
CLN31 (VT) |
26 |
CTRL MOD. - PUDDLE LAMP LEFT |
DU5T-14421-BB |
| 12 |
LPM30 (GY-BN) |
26 |
CTRL MOD. - SENSORS MIRROR POSITION (LEFT) + |
DU5T-14421-BB |
| 13 |
VPM35 (YE-BU) |
26 |
SENSOR - LEFT MIRROR POSITION # HORIZONTAL |
DU5T-14421-BB |
| 14 |
VPM36 (BN-YE) |
26 |
SENSOR - LEFT MIRROR POSITION # VERTICAL |
DU5T-14421-BB |
| 15 |
RRB06 (GY) |
26 |
CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER - |
DU5T-14421-BB |
| 16 |
CPM04 (BU-WH) |
26 |
CTRL MOD. - LEFT MIRROR FOLD IN |
DU5T-14421-BB |
