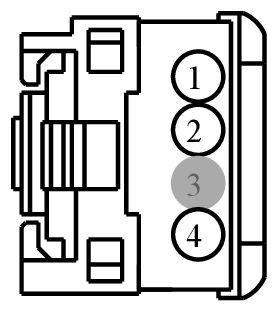

Connector End View (C512) - FUEL FILLER DOOR RELEASE SWITCH
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C512 |
FUEL FILLER DOOR RELEASE SWITCH |
14631 |
part# N/A |
Not Available |
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
| 9U5T-14474-DA |
DU2Z-14474-AA |
0.64 |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
GD382 (BK-GY) |
22 |
GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT |
9U5T-14474-DA |
| 2 |
CPL24 (YE-BU) |
22 |
SWITCH - FUEL FILLER DOOR # RELEASE |
9U5T-14474-DA |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
CPL77 (BU-GN) |
22 |
CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK DRIVER ILLUMINATION |
9U5T-14474-DA |
