Connector End View (C510) - INLINE

Connector Viewer - 150

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C510	INLINE	14E07314631			See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
AU5T-14474-DA	Not Available
DU5T-14474-DA	Not Available

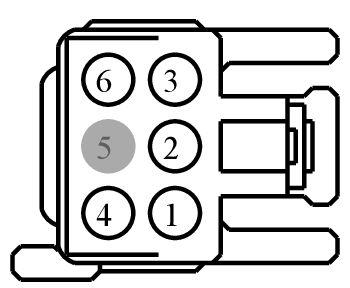

MALE

Harness

14E073

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	VDN05 (YE-GY)	22	14E073	N/A
2	CPL30 (BU-BN)	22	N/A
3	CB0X7 (GN-RD)	22	14E073	N/A
4	GD382 (BK-WH)	22	14E073	N/A
5	*	*	N/A
6	CPL87 (BN)	22	14E073	N/A

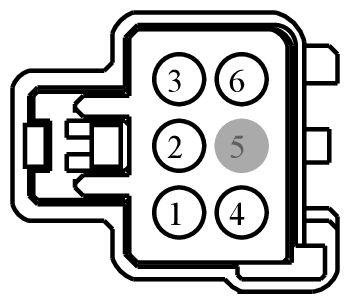

FEMALE

Harness

14631

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	VLN73 (GY-BN)	22	AU5T-14474-DA
2	CPL30 (BU-BN)	22	AU5T-14474-DA
3	CBX07 (GN)	22	Fusion	AU5T-14474-DA
3	CBX07 (GN-RD)	22	MKZ	AU5T-14474-DA
4	GD382 (BK-GY)	22	AU5T-14474-DA
5	*	*	N/A
6	CPL87 (BN)	26	MKZ	DU5T-14474-DA
	6	CPL87 (BN-WH)	26	DU5T-14474-DA

Available Pigtail Kits

Pigtail Kit Part Number WPT-962

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z- 14S411-JBB

Gauge:

14

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Mating Connector WPT-1299
• Switch - Gear Shift Select/Neutral Safety
• Switch - Overdrive Cancel
• Switch - Power Sliding Door
