Connector End View (C466B) - SUBWOOFER AMPLIFIER

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C466B	SUBWOOFER AMPLIFIER	14B644			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VME72 (WH)	22	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR SUBWOOFER 2 +	E65B-14487-AA
2	RME72 (BU-GN)	22	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR SUBWOOFER 2 -	E65B-14487-AA
3	VME73 (WH-BN)	22	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR SUBWOOFER 2 +	E65B-14487-AA
4	RME73 (VT-OG)	22	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR SUBWOOFER 2 -	E65B-14487-AA
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A

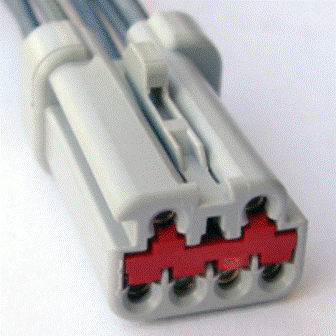

Available Pigtail Kits

Pigtail Kit Part Number WPT-663

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-ANAA

Gauge:

16

Pin material:

Tin

Cavities:

6

Vehicle Uses:

• Motor - Heater/AC Blower (Front)
