Connector End View (C466A) - SUBWOOFER AMPLIFIER

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail

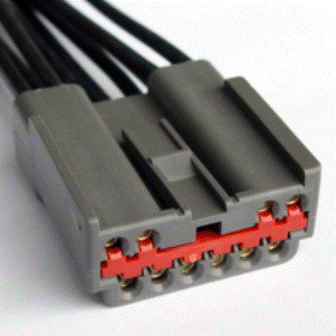

C466A	SUBWOOFER AMPLIFIER	14B644			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
E7EB-14487-AA	Not Available

Courtesy of FORD MOTOR COMPANY

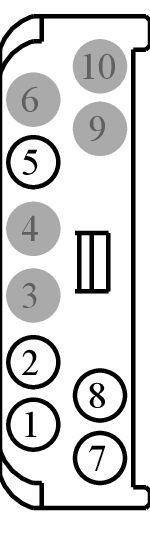

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SME23 (VT-RD)	22	CTRL MOD. - AUDIO HEAD UNIT # AMPLIFIER ENABLE 1	E65B-14487-AA
2	GD313 (BK-GN)	16	GROUND - PILLAR C OR QUARTER PANEL RIGHT # 2ND POINT	E7EB-14487-AA
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	SBP05 (GY-RD)	18	FUSE - 5 OR CIRCUIT BREAKER	E7EB-14487-AA
6	*	*	Not Used	N/A
7	VME22 (VT-GN)	22	CTRL MOD. - AUDIO HEAD UNIT# SUBWOOFER 1 +	E65B-14487-AA
8	RME22 (GN-WH)	22	CTRL MOD. - AUDIO HEAD UNIT# SUBWOOFER 1 -	E65B-14487-AA
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-667

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-CAAA

Gauge:

14

Pin material:

Tin

Cavities:

10

Vehicle Uses:

• Motor - Heater/AC Blower (Front)
• Sensor - Headlamp Leveling
