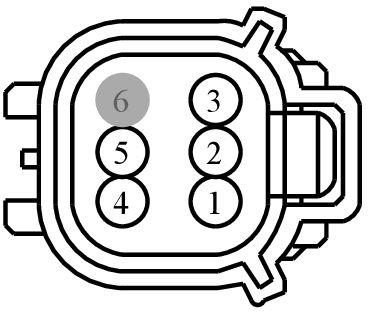

Connector End View (C415) - REAR LAMP ASSEMBLY RH
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C415 | REAR LAMP ASSEMBLY RH | 14A005 | part# N/A | See Below | ||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14474-UA | DU2Z-14474-DA | 1.5 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CLS53 (GY-VT) | 22 | CTRL MOD. - STOP/TURN RIGHT OUTBOARD | BU5T-14474-UA | ||||
| 2 | CLS05 (BU-GY) | 22 | CTRL MOD. - PARK LAMPS 1 | Fusion | BU5T-14474-UA | |||
| 2 | CLS27 (GN-OG) | 22 | CTRL MOD. - TURN LAMP RIGHT REAR | MKZ | BU5T-14474-UA | |||
| 3 | CLS07 (BN-YE) | 22 | CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT | MKZ | BU5T-14474-UA | |||
| 3 | CLS27 (GN-OG) | 22 | CTRL MOD. - TURN LAMP RIGHT REAR | Fusion | BU5T-14474-UA | |||
| 4 | GD304 (BK-GN) | 22 | GROUND - PILLAR C OR QUARTER PANEL LEFT # 4TH POINT | MKZ | BU5T-14474-UA | |||
| 4 | GD383 (BK-WH) | 20 | GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT | Fusion | BU5T-14474-UA | |||
| 5 | CLS54 (BU-OG) | 22 | LAMP - TURN REAR RIGHT # SIGNAL OUT | BU5T-14474-UA | ||||
| 6 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-971
Service Part Number:
3U2Z-14S411-FEAB
Gauge:
14
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Connector - Inline
- Lamp - Headlamp - High/Low Beam
- Lamp - Park/Turn/Stop
- Motor - Engine Cooling Fan
- Motor - Running Board
