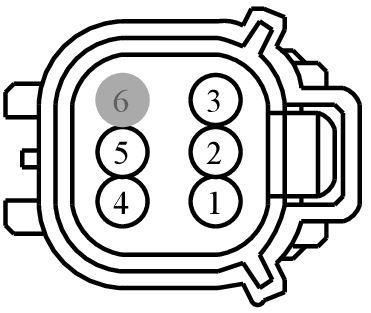

Connector End View (C412) - REAR LAMP ASSEMBLY LH
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C412 | REAR LAMP ASSEMBLY LH | 14A005 | part# N/A | See Below | ||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14474-UA | DU2Z-14474-DA | 1.5 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CLS51 (WH-GN) | 22 | CTRL MOD. - STOP/TURN LEFT OUTBOARD | BU5T-14474-UA | ||||
| 2 | CLS06 (GN-OG) | 22 | CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT | Fusion | BU5T-14474-UA | |||
| 2 | CLS06 (OG-GN) | 22 | CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT | PHEV | BU5T-14474-UA | |||
| 2 | CLS23 (GY-OG) | 22 | CTRL MOD. - TURN LAMP LEFT REAR | MKZ | BU5T-14474-UA | |||
| 3 | CLS06 (GN-OG) | 22 | CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT | MKZ | BU5T-14474-UA | |||
| 3 | CLS23 (GY-OG) | 22 | CTRL MOD. - TURN LAMP LEFT REAR | Fusion | BU5T-14474-UA | |||
| 4 | GD347 (BK-VT) | 18 | GROUND - PILLAR C OR QUARTER PANEL LEFT | Fusion | 7C3T-14474-DA | |||
| 4 | GD347 (BK-VT) | 20 | GROUND - PILLAR C OR QUARTER PANEL LEFT | MKZ | BU5T-14474-UA | |||
| 5 | CLS55 (GN-BU) | 22 | LAMP - TURN REAR LEFT # SIGNAL OUT | BU5T-14474-UA | ||||
| 6 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-971
Service Part Number:
3U2Z-14S411-FEAB
Gauge:
14
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Connector - Inline
- Lamp - Headlamp - High/Low Beam
- Lamp - Park/Turn/Stop
- Motor - Engine Cooling Fan
- Motor - Running Board
