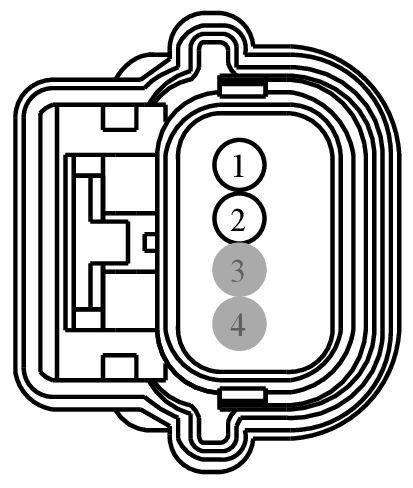

Connector End View (C347) - KEYLESS VEHICLE FRONT ANTENNA

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C347	KEYLESS VEHICLE FRONT ANTENNA	none	14401	part#N/A	See Below

Terminal Part Number	Service Part Number	Size

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VPK05 (BN-GN)	20	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT) +	N/A
2	RPK05 (YE-OG)	20	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT) -	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1307

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AGA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:
