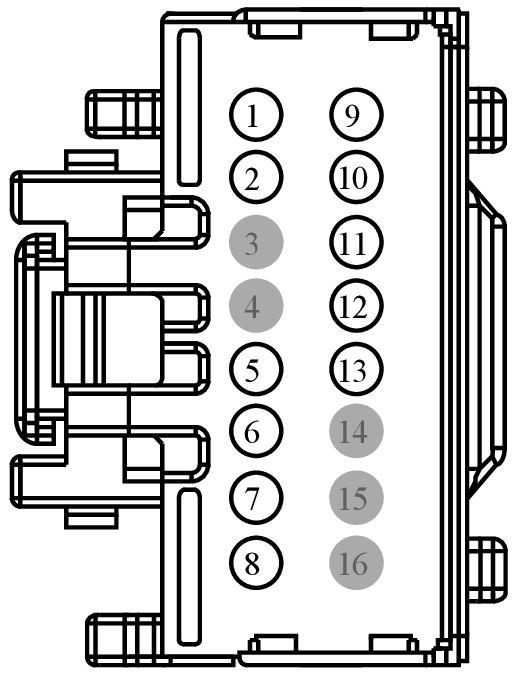

Connector End View (C341F) - DRIVER SEAT MODULE (DSM)
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C341F |
DRIVER SEAT MODULE (DSM) |
14D231 |
#N/A |
Not Available |
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
|
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CPS02 (GY-YE) |
16 |
CTRL MOD. - DRIVER SEAT HEIGHT FRONT / TILT DOWN |
NA |
| 2 |
CPS03 (VT-GY) |
16 |
CTRL MOD. - DRIVER SEAT HEIGHT FRONT / TILT UP |
NA |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
CPS06 (GN-WH) |
16 |
CTRL MOD. - DRIVER SEAT SLIDE REARWARD |
NA |
| 6 |
CPS01 (GN-BU) |
16 |
CTRL MOD. - DRIVER SEAT SLIDE FORWARD |
NA |
| 7 |
VDB07 (VT-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
NA |
| 8 |
VDB06 (GY-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
NA |
| 9 |
RPS12 (YE-VT) |
20 |
CTRL MOD. - DRIVER SEAT SENSORS RECLINE - |
NA |
| 10 |
CPP04 (GY) |
18 |
CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) UP |
NA |
| 11 |
CPP23 (VT-GY) |
18 |
CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) DOWN |
NA |
| 12 |
CPP22 (GY-BN) |
18 |
CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE FORWARD |
NA |
| 13 |
CPP03 (GN-VT) |
18 |
CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE REARWARD |
NA |
| 14 |
* |
* |
Not Used |
N/A |
| 15 |
* |
* |
Not Used |
N/A |
| 16 |
* |
* |
Not Used |
N/A |
