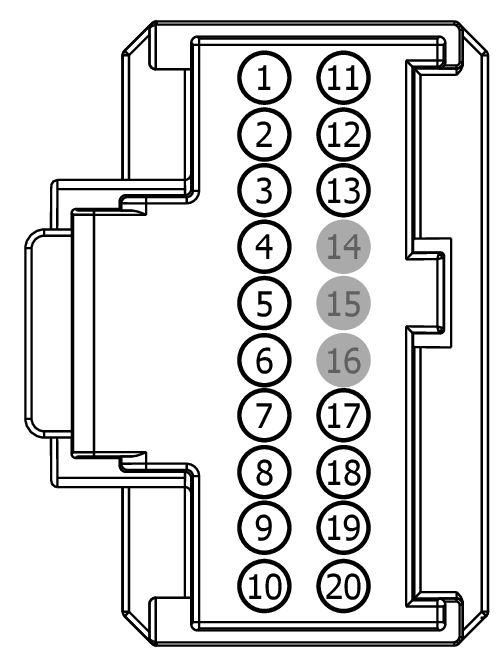

Connector End View (C341A) - DRIVER SEAT MODULE (DSM)

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C341A	DRIVER SEAT MODULE (DSM)	14D231			#N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPP10 (BN-BU)	20	SWITCH - ADJUST. PEDALS # REARWARD	NA
2	CPP09 (VT-OG)	20	SWITCH - ADJUST. PEDALS # FORWARD	NA
3	CPS30 (VT-BN)	20	SWITCH - SEAT ADJUST. DRIVER RECLINE REARWARD	NA
4	CPS29 (WH-BN)	20	SWITCH - SEAT ADJUST. DRIVER RECLINE FORWARD	NA
5	CPS26 (YE-BU)	20	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN	NA
6	CPS27 (BU-BN)	20	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP	NA
7	CPS24 (GY)	20	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN	NA
8	CPS25 (WH-VT)	20	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP	NA
9	CPS28 (GN)	20	SWITCH - SEAT ADJUST. DRIVER REARWARD	NA
10	CPS23 (GN-VT)	20	SWITCH - SEAT ADJUST. DRIVER FORWARD	NA
11	LPP06 (YE-BU)	20	CTRL MOD. - SENSOR ADJUSTABLE PEDAL +	NA
12	RPP07 (YE-GN)	20	CTRL MOD. - SENSOR ADJUSTABLE STEERING COLUMN TELESCOPE (FORWARD/REARWARD) -	NA
13	CPP18 (BN-VT)	20	CTRL MOD. - SOLENOID RAKE (TILT)	NA
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	VPS12 (GY-OG)	20	SENSOR - DRIVER SEAT RECLINE	NA
18	VPS11 (GN-BN)	20	SENSOR - DRIVER SEAT HEIGHT REAR / PARALLEL	NA
19	VPS10 (BU-GN)	20	SENSOR - DRIVER SEAT HEIGHT FRONT / TILT	NA
20	VPS09 (BN-BU)	20	SENSOR - DRIVER SEAT SLIDE FORWARD/REARWARD	NA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1447

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ATA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:
