Connector End View (C1583) - INLINE
Connector Viewer - 150
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C1583 | INLINE | 15K86715K867 | See Below | |||||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|

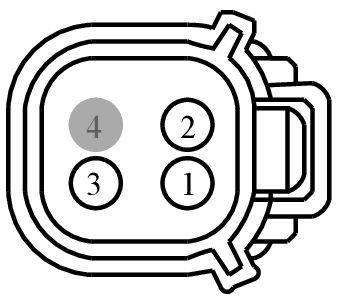

MALE
Harness
15K867
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | GD120 (BK-GN) | 20 | N/A | |||
| 2 | VDN06 (WH-GN) | 20 | N/A | |||
| 3 | CBK03 (GY) | 20 | N/A | |||
| 4 | * | * | ||||

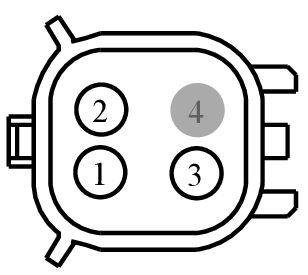

FEMALE
Harness
15K867
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | GD120 (BK-GN) | 20 | N/A | |||
| 2 | VDN06 (WH-GN) | 20 | N/A | |||
| 3 | CBK03 (GY) | 20 | N/A | |||
| 4 | * | * | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1288
Service Part Number:
CU2Z-14S411-ZA
Gauge:
16
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Sensor - Catalyst Monitor
- Sensor - O2 (HEGO/ EGO)
Pigtail Kit Part Number WPT-1570
Service Part Number:
CU2Z-14S411-ZB
Gauge:
16
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Actuator - Door Lock - RH - Front
- Connector - Inline
- Lamp - Fog/Driving
- Lamp - Liftgate Applique
- Sensor - Catalyst Monitor
- Sensor - O2 (HEGO/ EGO)
- Speaker - Siren
- Switch - Seat Belt Warning
Pigtail Kit Part Number WPT-1498
Service Part Number:
BU2Z-14S411-TB
Gauge:
16
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Connector - Inline
- Lamp - Headlamp - High/Low Beam
- Lamp - Park/Turn/Stop
- Lamp - Reverse
- Sensor - Catalyst Monitor
- Sensor - O2 (HEGO/ EGO)
- Speaker - Siren
- Speaker - Subwoofer
- Switch - Heated Seat - LH - Rear
- Switch - Heated Seat - RH - Rear
- Valve - Active Exhaust Solenoid
