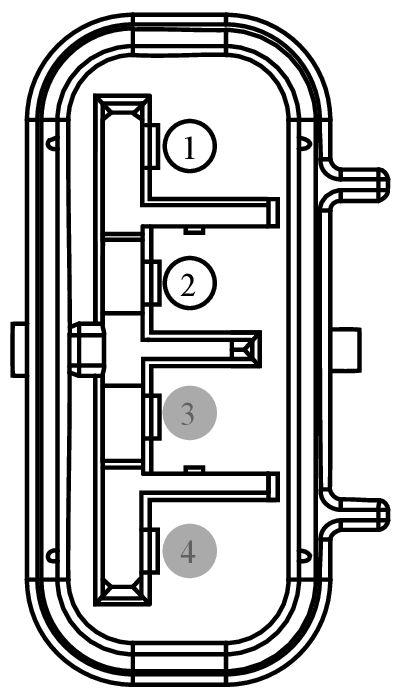

Connector End View (C1532) - IPMA CAMERA HEATED WINDSHIELD ELEMENT
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1532 |
IPMA CAMERA HEATED WINDSHIELD ELEMENT |
12A581 |
part# N/A |
Not Available |
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
| 97BG-14421-BDA |
EU2Z-14421-FA |
2.8 |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CRD19 (VT-WH) |
20 |
MIRROR - ELECTROCHROMIC REAR VIEW # EXTERIOR MIRROR ACTUATE + |
97BG-14421-BDA |
| 2 |
RRD19 (BN-VT) |
20 |
MIRROR - ELECTROCHROMIC REAR VIEW # EXTERIOR MIRROR ACTUATE - |
97BG-14421-BDA |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
* |
* |
Not Used |
N/A |
