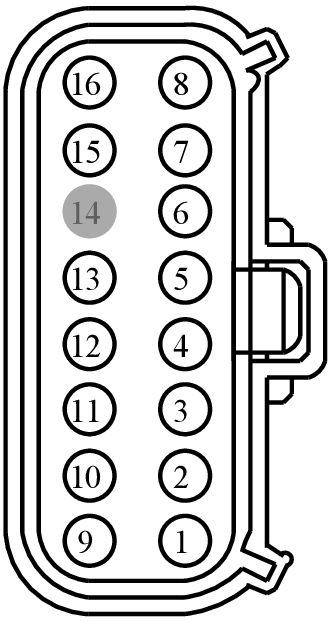

Connector End View (C1510A) - HEADLAMP ASSEMBLY RH

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1510A	HEADLAMP ASSEMBLY RH	12A581			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
BU5T-14474-UA	DU2Z-14474-DA	1.5

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CLS05 (BU-GY)	20	CTRL MOD. - PARK LAMPS 1	FUSION	BU5T-14474-UA
2	CLF03 (VT-OG)	20	CTRL MOD. - BEAM HIGH RIGHT	BU5T-14474-UA
3	CLF61 (BU-GY)	20	CTRL MOD. - DAYTIME RUNNING LIGHT LEFT	FUSION	BU5T-14474-UA
3	CLS07 (BN-YE)	20	CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT	MKZ	BU5T-14474-UA
4	CBB20 (YE-VT)	20	FUSE - 20 OR CIRCUIT BREAKER	MKZ	BU5T-14474-UA
5	CLF61 (GN-OG)	20	CTRL MOD. - LIN BUS	MKZ	BU5T-14474-UA
6	CLF05 (BU-GN)	20	CTRL MOD. - BEAM LOW RIGHT	BU5T-14474-UA
7	CLS25 (YE-VT)	20	CTRL MOD. - TURN LAMP RIGHT FRONT	FUSION	BU5T-14474-UA
7	CLS25 (YE-VT)	22	CTRL MOD. - TURN LAMP RIGHT FRONT	MKZ	BU5T-14474-UA
8	GD123 (BK-GY)	18	GROUND - FENDER FRONT RIGHT	MKZ	7C3T-14474-DA
9	CLS07 (BN-YE)	20	CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT	MKZ	BU5T-14474-UA
9	GD123 (BK-GY)	18	GROUND - FENDER FRONT RIGHT	FUSION	7C3T-14474-DA
10	CLF61 (GY-BU)	20	CTRL MOD. - DAYTIME RUNNING LIGHT LEFT	MKZ	BU5T-14474-UA
11	CLS58 (BU-WH)	22	LAMP - TURN FRONT RIGHT # SIGNAL OUT	MKZ	BU5T-14474-UA
12	GD123 (GN-WH)	20	GROUND - FENDER FRONT RIGHT	FUSION	BU5T-14474-UA
12	GD123 (BK-GY)	18	GROUND - FENDER FRONT RIGHT	MKZ	7C3T-14474-DA
13	VLF33 (BU)	20	CTRL MOD. - MOTOR DYNAMIC BENDING LIGHT RIGHT (LIN BUS) +	MKZ	BU5T-14474-UA
14	*	*	Not Used	N/A
15	CLS05 (GN-WH)	20	CTRL MOD. - PARK LAMPS 1	FUSION	BU5T-14474-UA
15	GD123 (BK-GY)	20	GROUND - FENDER FRONT RIGHT	MKZ	BU5T-14474-UA
16	GD123 (BK-GY)	18	GROUND - FENDER FRONT RIGHT	7C3T-14474-DA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1279

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ADA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:
