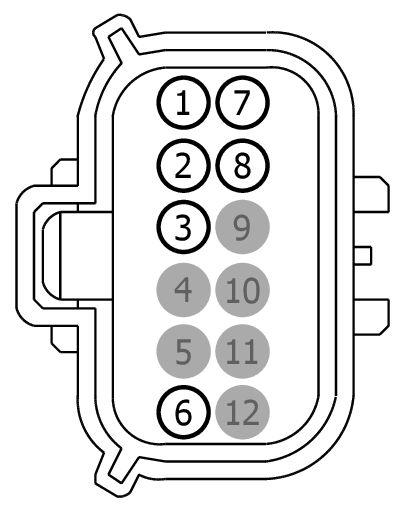

Connector End View (C1509B) - HEADLAMP ASSEMBLY, LH
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1509B | HEADLAMP ASSEMBLY, LH | 13A318 | part# N/A | See Below | ||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14474-UA | DU2Z-14474-DA | 1.5 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD120 (BK-GN) | 22 | GROUND - FENDER FRONT LEFT | BU5T-14474-UA | ||||
| 2 | VLF67 (GN-WH) | 22 | CTRL MOD. - HEADLAMP # THERMAL SENSOR 1 (RD1 CTN) | BU5T-14474-UA | ||||
| 3 | VLF66 (YE) | 22 | CTRL MOD. - HEADLAMP # BIN RESISTOR 1 (RD1 BIN) | BU5T-14474-UA | ||||
| 4 | * | * | Not Used | N/A | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | RLF66 (BU) | 22 | CTRL MOD. - HEADLAMP GROUND 1 (BIN CTN TURN) | BU5T-14474-UA | ||||
| 7 | RLF64 (WH-BU) | 22 | CTRL MOD. - HEADLAMP # LED TURN - | BU5T-14474-UA | ||||
| 8 | CLF64 (BU-OG) | 22 | CTRL MOD. - HEADLAMP # LED TURN + | BU5T-14474-UA | ||||
| 9 | * | * | Not Used | N/A | ||||
| 10 | * | * | Not Used | N/A | ||||
| 11 | * | * | Not Used | N/A | ||||
| 12 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1544
Service Part Number:
AU2Z-14S411-AMB
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Lamp - Front Turn
- Lamp - Headlamp - High/Low Beam
- Mirror - Sideview / Heated
- Module - Battery Energy Control
- Module - Extended Power
- Module - Gear Shift
- Module - Glow Plug
- Module - Transmission Ranger Control
- Trailer Tow - Vehicle Side
Pigtail Kit Part Number WPT-1125
Service Part Number:
AU2Z-14S411-AMA
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Mirror - Sideview
