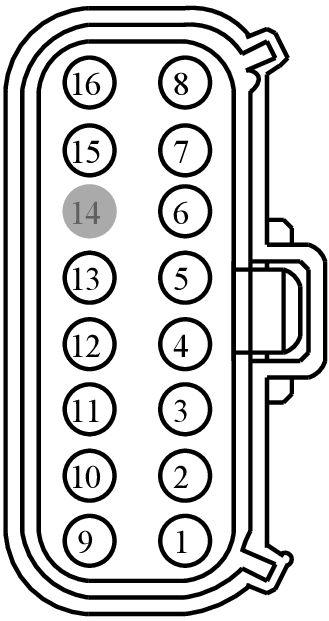

Connector End View (C1509A) - HEADLAMP ASSEMBLY LH

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1509A	HEADLAMP ASSEMBLY LH	12A581			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
BU5T-14474-UA	DU2Z-14474-DA	1.5

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CLS05 (BU-GY)	20	CTRL MOD. - PARK LAMPS 1	FUSION	BU5T-14474-UA
2	CLF02 (GY-BN)	20	CTRL MOD. - BEAM HIGH LEFT	BU5T-14474-UA
3	CLF61 (BU-GY)	20	CTRL MOD. - DAYTIME RUNNING LIGHT LEFT	FUSION	BU5T-14474-UA
3	GD120 (BK-GN)	18	L/R DETECT SIG GND	MKZ	7C3T-14474-DA
4	CBB20 (YE-VT)	20	FUSE - 20 OR CIRCUIT BREAKER	MKZ	BU5T-14474-UA
5	CLF61 (GN-OG)	20	CTRL MOD. - LIN BUS	MKZ	BU5T-14474-UA
6	CLF04 (BN-BU)	20	CTRL MOD. - BEAM LOW LEFT	BU5T-14474-UA
7	CLS21 (BU-GN)	20	CTRL MOD. - TURN LAMP LEFT FRONT	FUSION	BU5T-14474-UA
7	CLS21 (GN-BU)	22	CTRL MOD. - TURN LAMP LEFT FRONT	MKZ	BU5T-14474-UA
8	GD120 (BK-GN)	18	GROUND - FENDER FRONT LEFT	MKZ	7C3T-14474-DA
9	CLS06 (BN-YE)	20	CTRL MOD. - FOG LAMP	MKZ	BU5T-14474-UA
9	GD120 (BK-GN)	18	GROUND - FENDER FRONT LEFT	FUSION	7C3T-14474-DA
10	CLF61 (GY-BU)	20	CTRL MOD. - HID BALLAST	MKZ	BU5T-14474-UA
11	CLS56 (YE-GN)	22	LAMP - TURN FRONT LEFT OR COMMON# SIGNAL OUT	MKZ	BU5T-14474-UA
12	GD120 (BK-GN)	18	GROUND - FENDER FRONT LEFT	MKZ	7C3T-14474-DA
12	GD120 (BK-GY)	18	GROUND - FENDER FRONT LEFT	FUSION	7C3T-14474-DA
13	VLF32 (YE)	20	CTRL MOD. - MOTOR DYNAMIC BENDING LIGHT LEFT (LIN BUS) +	MKZ	BU5T-14474-UA
14	*	*	Not Used	N/A
15	CLS04 (GN-WH)	20	CTRL MOD. - LICENSE PLATE	FUSION	BU5T-14474-UA
15	GD120 (BK-GN)	20	GROUND - FENDER FRONT LEFT	MKZ	BU5T-14474-UA
16	GD120 (BK-GN)	18	GROUND - FENDER FRONT LEFT	7C3T-14474-DA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1279

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ADA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:
