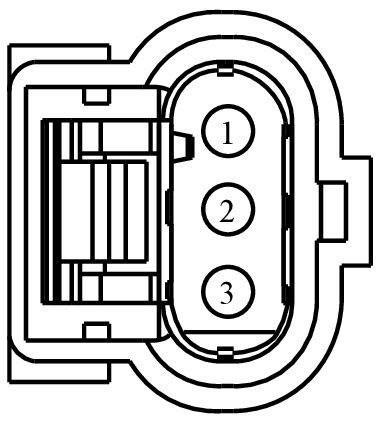

Connector End View (C1472) - MOTOR ELECTRONICS COOLANT SYSTEM PUMP (MECSP)

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1472	MOTOR ELECTRONICS COOLANT SYSTEM PUMP (MECSP)	8C290			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
AU5T-14474-SA	Not Available
AU5T-14474-UA	Not Available

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD122 (BK)	18	GROUND - FENDER FRONT LEFT # 3RD POINT	AU5T-14474-SA
2	CBB54 (BU-BN)	18	FUSE - 54 OR CIRCUIT BREAKER	AU5T-14474-SA
3	CE318 (VT)	18	CTRL MOD. - POWERTRAIN # MOTOR ELECTRONICS COOLING PUMP (MECP)	AU5T-14474-UA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1530

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-ARB

Gauge:

18

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Coil - Ignition
• Lamp - Front Turn
• Lamp - Park/Turn
• Module - Handsfree Liftgate Entry
• Monitor - Crankcase Ventilation
• Motor - Intercooler Pump
• Pump - Auxiliary Heater
• Pump - Coolant Module
• Pump - Transfer Case Coolant
• Sensor - Cam Shaft Position
• Sensor - Crank Shaft Position
• Sensor - Crankcase Pressure
• Sensor - Fuel Low Pressure
• Sensor - Particulate Delta Pressure
• Sensor - Particulate Filter Delta Pressure
• Solenoid - Wastegate Vacuum
• Switch - Deck Lid / Hatch Release

Pigtail Kit Part Number WPT-1202

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-ARA

Gauge:

18

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Actuator - Turbocharger Waste Gate
• Coil - Ignition
• Sensor - Cam Shaft Position
• Sensor - Crank Shaft Position
