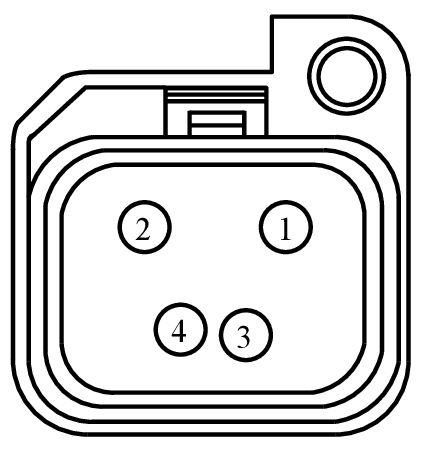

Connector End View (C1458F) - SECONDARY ON BOARD DIAGNOSTIC MODULE C (SOBDMC) / TRANSMISSION CONTROL MODULE (TCM)

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1458F	SECONDARY ON BOARD DIAGNOSTIC MODULE C (SOBDMC) / TRANSMISSION CONTROL MODULE (TCM)	19D623			part# N/A	Not Available

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	HV+ (OG-WH)	-	HV +	N/A
2	HV- (OG-BK)	-	HV -	N/A
3	LOOP- (BARE)	-	LOOP -	N/A
4	LOOP+ (BARE)	-	LOOP +	N/A
