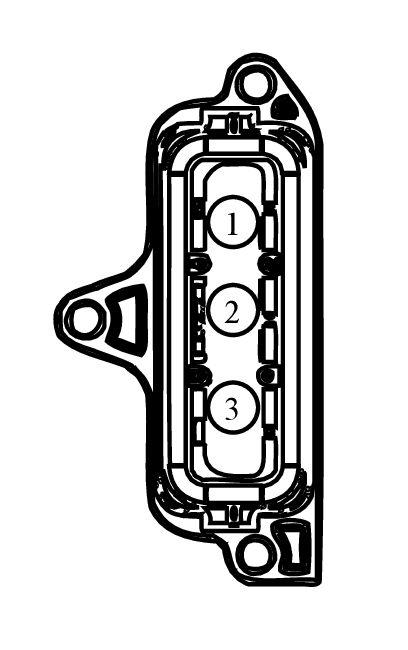

Connector End View (C1458D) - SECONDARY ON BOARD DIAGNOSTIC MODULE C (SOBDMC) / TRANSMISSION CONTROL MODULE (TCM)
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1458D |
SECONDARY ON BOARD DIAGNOSTIC MODULE C (SOBDMC) / TRANSMISSION CONTROL MODULE (TCM) |
14183 |
part# N/A |
Not Available |
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
|
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
HYA07 (WH-LB) |
4 |
GENERATOR W PHASE (GWP) |
N/A |
| 2 |
HYA08 (WH-OG) |
4 |
GENERATOR V PHASE (GVP) |
N/A |
| 3 |
HYA09 (WH-BU) |
4 |
GENERATOR U PHASE (GUP) |
N/A |
