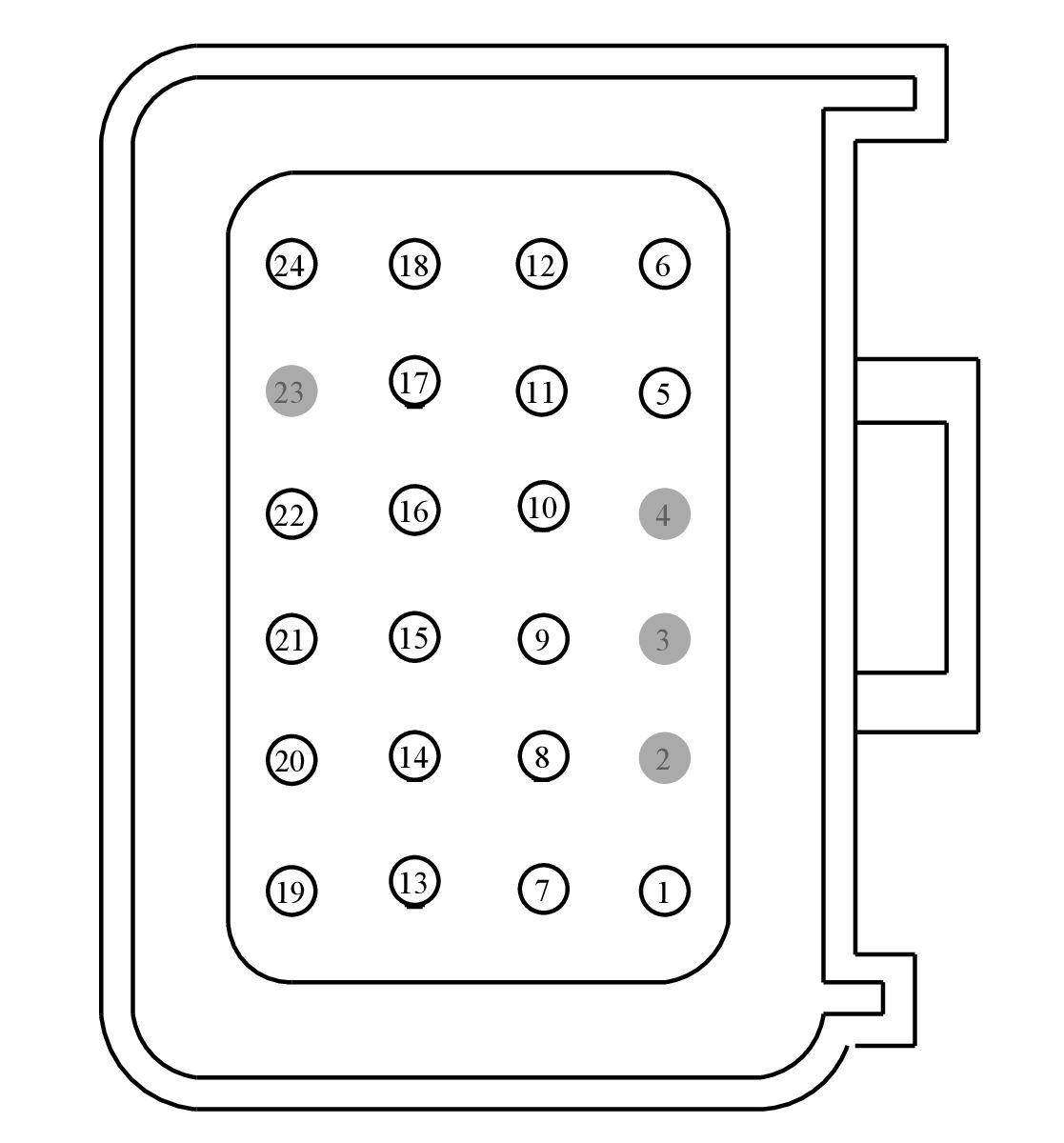

Connector End View (C1458B) - SECONDARY ON BOARD DIAGNOSTIC MODULE C (SOBDMC) / TRANSMISSION CONTROL MODULE (TCM)
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1458B |
SECONDARY ON BOARD DIAGNOSTIC MODULE C (SOBDMC) / TRANSMISSION CONTROL MODULE (TCM) |
3C221 |
part# N/A |
Not Available |
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
| 1L2T-14474-CA |
DU2Z-14474-BA |
0.64 |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
DYT25 (BK) |
20 |
TRANSAXLE - HYBRID # GENERATOR RESOLVER FEEDBACK (G_SHIELD) |
1L2T-14474-CA |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
VYT20 (YE-VT) |
18 |
TRANSAXLE - HYBRID # MOTOR RESOLVER FEEDBACK SINE - (MS4) |
1L2T-14474-CA |
| 6 |
VYT15 (YE-GY) |
18 |
CTRL MOD. - HYBRID TRANSAXLE # MOTOR RESOLVER EXCITATION SIGNAL 1 (MR1) |
1L2T-14474-CA |
| 7 |
VYT24 (BN-WH) |
18 |
CTRL MOD. - HYBRID TRANSAXLE # GENERATOR RESOLVER EXCITATION SIGNAL 2 (GR2) |
1L2T-14474-CA |
| 8 |
VYT23 (WH) |
18 |
CTRL MOD. - HYBRID TRANSAXLE # GENERATOR RESOLVER EXCITATION SIGNAL 1 (GR1) |
1L2T-14474-CA |
| 9 |
RYT22 (GY-OG) |
18 |
SENSOR - HYBRID TRANSMISSION OIL TEMPERATURE (TOIL) - |
1L2T-14474-CA |
| 10 |
VYT22 (GN-OG) |
18 |
SENSOR - HYBRID TRANSMISSION OIL TEMPERATURE (TOIL) + |
1L2T-14474-CA |
| 11 |
VYT19 (GN-BN) |
18 |
TRANSAXLE - HYBRID # MOTOR RESOLVER FEEDBACK SINE + (MS2) |
1L2T-14474-CA |
| 12 |
VYT16 (WH-GN) |
18 |
CTRL MOD. - HYBRID TRANSAXLE # MOTOR RESOLVER EXCITATION SIGNAL 2 (MR2) |
1L2T-14474-CA |
| 13 |
VYT25 (VT-BN) |
18 |
TRANSAXLE - HYBRID # GENERATOR RESOLVER FEEDBACK COSINE + (GS1) |
1L2T-14474-CA |
| 14 |
VYT26 (YE-BU) |
18 |
TRANSAXLE - HYBRID # GENERATOR RESOLVER FEEDBACK COSINE - (GS3) |
1L2T-14474-CA |
| 15 |
RYT29 (WH-BU) |
18 |
SENSOR - HYBRID TRANSAXLE GENERATOR COIL TEMPERATURE (TGCOIL) - |
1L2T-14474-CA |
| 16 |
VYT29 (VT-GN) |
18 |
SENSOR - HYBRID TRANSAXLE GENERATOR COIL TEMPERATURE (TGCOIL) + |
1L2T-14474-CA |
| 17 |
DYT17 (BK) |
20 |
TRANSAXLE - HYBRID # MOTOR RESOLVER FEEDBACK (M_SHIELD) |
1L2T-14474-CA |
| 18 |
VYT18 (BU-WH) |
18 |
TRANSAXLE - HYBRID # MOTOR RESOLVER FEEDBACK COSINE - (MS3) |
1L2T-14474-CA |
| 19 |
VYT27 (WH-BN) |
18 |
TRANSAXLE - HYBRID # GENERATOR RESOLVER FEEDBACK SINE + (GS2) |
1L2T-14474-CA |
| 20 |
VYT28 (BN-YE) |
18 |
TRANSAXLE - HYBRID # GENERATOR RESOLVER FEEDBACK SINE - (GS4) |
1L2T-14474-CA |
| 21 |
RYT21 (GN-WH) |
18 |
SENSOR - HYBRID TRANSAXLE MOTOR COIL TEMPERATURE (TMCOIL) - |
1L2T-14474-CA |
| 22 |
VYT21 (BU-GN) |
18 |
SENSOR - HYBRID TRANSAXLE MOTOR COIL TEMPERATURE (TMCOIL) + |
1L2T-14474-CA |
| 23 |
* |
* |
Not Used |
N/A |
| 24 |
VYT17 (BN-BU) |
18 |
TRANSAXLE - HYBRID # MOTOR RESOLVER FEEDBACK COSINE + (MS1) |
1L2T-14474-CA |
