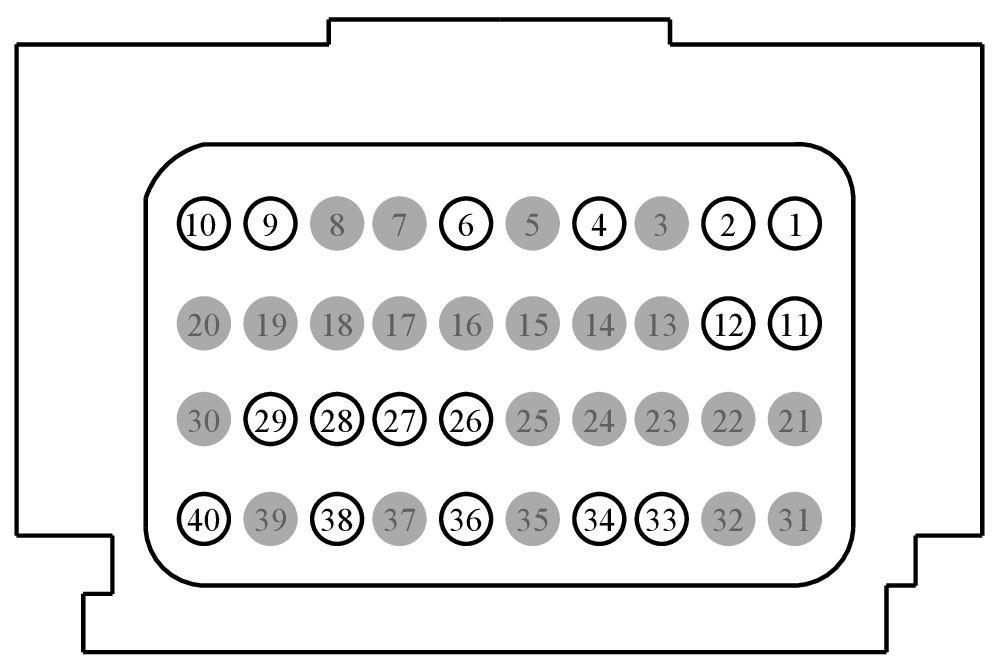

Connector End View (C1458A) - SECONDARY ON BOARD DIAGNOSTIC MODULE C (SOBDMC)/TRANSMISSION CONTROL MODULE (TCM)
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1458A |
SECONDARY ON BOARD DIAGNOSTIC MODULE C (SOBDMC)/TRANSMISSION CONTROL MODULE (TCM) |
12A581 |
part# N/A |
Not Available |
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
| 9U5T-14474-MA |
DU2Z-14474-BA |
0.64 |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
GD120 (BK-GN) |
20 |
GROUND - FENDER FRONT LEFT |
9U5T-14474-MA |
| 2 |
GD120 (BK-GN) |
20 |
GROUND - FENDER FRONT LEFT |
9U5T-14474-MA |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
VMC02 (BU-WH) |
18 |
CTRL MOD. - POWERTRAIN # CLEAN TACHOMETER OUTPUT (CTO) |
9U5T-14474-MA |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
SBB18 (YE-RD) |
20 |
FUSE - 18 OR CIRCUIT BREAKER |
9U5T-14474-MA |
| 7 |
* |
* |
Not Used |
N/A |
| 8 |
* |
* |
Not Used |
N/A |
| 9 |
CBB51 (BN) |
20 |
FUSE - 51 OR CIRCUIT BREAKER |
9U5T-14474-MA |
| 10 |
CBB51 (BN) |
20 |
FUSE - 51 OR CIRCUIT BREAKER |
9U5T-14474-MA |
| 11 |
VDB05 (WH) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
9U5T-14474-MA |
| 12 |
VDB04 (WH-BU) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
9U5T-14474-MA |
| 13 |
* |
* |
Not Used |
N/A |
| 14 |
* |
* |
Not Used |
N/A |
| 15 |
* |
* |
Not Used |
N/A |
| 16 |
* |
* |
Not Used |
N/A |
| 17 |
* |
* |
Not Used |
N/A |
| 18 |
* |
* |
Not Used |
N/A |
| 19 |
* |
* |
Not Used |
N/A |
| 20 |
* |
* |
Not Used |
N/A |
| 21 |
* |
* |
Not Used |
N/A |
| 22 |
* |
* |
Not Used |
N/A |
| 23 |
* |
* |
Not Used |
N/A |
| 24 |
* |
* |
Not Used |
N/A |
| 25 |
* |
* |
Not Used |
N/A |
| 26 |
CHP01 (BU-GN) |
20 |
CTRL MOD. - PTC HEATER # HEATER |
PHEV |
9U5T-14474-MA |
| 27 |
CYT30 (GY-VT) |
20 |
SWITCH - ECON CONTROL (ECO) + |
PHEV |
9U5T-14474-MA |
| 28 |
CYT30 (GY-VT) |
20 |
SWITCH - ECON CONTROL (ECO) + |
9U5T-14474-MA |
| 29 |
CBB21 (BU-GY) |
20 |
FUSE - 21 OR CIRCUIT BREAKER |
9U5T-14474-MA |
| 30 |
* |
* |
Not Used |
N/A |
| 31 |
* |
* |
Not Used |
N/A |
| 32 |
* |
* |
Not Used |
N/A |
| 33 |
VYT12 (YE-GN) |
20 |
PUMP - TRANSMISSION AUXILIARY # DIAGNOSTIC (TAPR_DI) |
PHEV |
9U5T-14474-MA |
| 34 |
VYT11 (VT-GY) |
20 |
CTRL MOD. - TRANSMISSION AUXILIARY PUMP PWM CONTROL (TAPR_CT) |
PHEV |
9U5T-14474-MA |
| 35 |
* |
* |
Not Used |
N/A |
| 36 |
CE318 (VT) |
18 |
CTRL MOD. - POWERTRAIN # MOTOR ELECTRONICS COOLING PUMP (MECP) |
9U5T-14474-MA |
| 37 |
* |
* |
Not Used |
N/A |
| 38 |
CE436 (VT-OG) |
20 |
CTRL MOD. -WAKE UP PCM |
9U5T-14474-MA |
| 39 |
* |
* |
Not Used |
N/A |
| 40 |
CE613 (GY-VT) |
20 |
RELAY - POWERTRAIN CONTROL MODULE 2ND |
9U5T-14474-MA |
