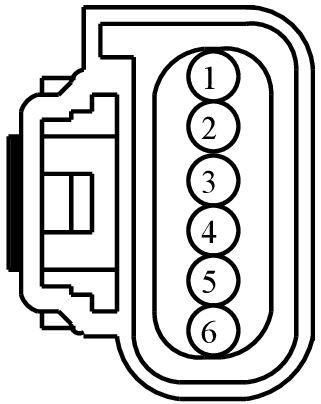

Connector End View (C1449) - ELECTRONIC THROTTLE CONTROL (ETC)
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1449 | ELECTRONIC THROTTLE CONTROL (ETC) | 12C508 | part# N/A | See Below | ||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 1L2T-14474-CA | DU2Z-14474-BA | 0.64 |
| 9U5T-14474-MA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CE412 (YE-VT) | 18 | CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) | 9U5T-14474-MA | ||||
| 2 | CE426 (BU-GN) | 18 | CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-) | 9U5T-14474-MA | ||||
| 3 | VE818 (BN) | 20 | SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1-NS) | 1L2T-14474-CA | ||||
| 4 | RE134 (BU-OG) | 20 | CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) | 1L2T-14474-CA | ||||
| 5 | LE134 (YE) | 20 | CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) | 1L2T-14474-CA | ||||
| 6 | VE819 (GN-VT) | 20 | SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2-PS) | 1L2T-14474-CA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1063
Service Part Number:
AU2Z-14S411-MA
Gauge:
18
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Control - Electronic Throttle
