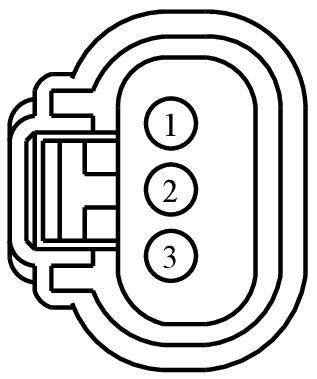

Connector End View (C1339) - CRANKSHAFT POSITION (CKP) SENSOR

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1339	CRANKSHAFT POSITION (CKP) SENSOR	12C508			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LE459 (GY)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 3 (VREF3)	97BG-14474-AHA
2	VE711 (YE-VT)	20	SENSOR - CRANKSHAFT POSITION (CKPP) +	97BG-14474-AHA
3	RE135 (GN-BN)	20	CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKPN) -	97BG-14474-AHA

Available Pigtail Kits

Pigtail Kit Part Number WPT-990

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-ZB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses:

• Sensor - Cam Shaft Position
• Sensor - Crank Shaft Position
• Sensor - Fuel Tank Pressure Transducer
• Sensor - Turbine Shaft Speed
• Switch - Fuel Delivery Pressure
