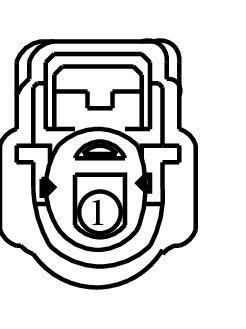

Connector End View (C1196) - IGNITION TRANSFORMER CAPACITOR
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1196 | IGNITION TRANSFORMER CAPACITOR | 12C508 | part# N/A | See Below | ||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBK04 (VT) | 16 | FUSE - 4 OR CIRCUIT BREAKER (VPWR 4) | 97BG-14474-AEA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1253
Service Part Number:
6U2Z-14S411-KB
Gauge:
16
Pin material:
Tin (greased)
Cavities:
1
Vehicle Uses:
- Capacitor - Ignition/Radio
