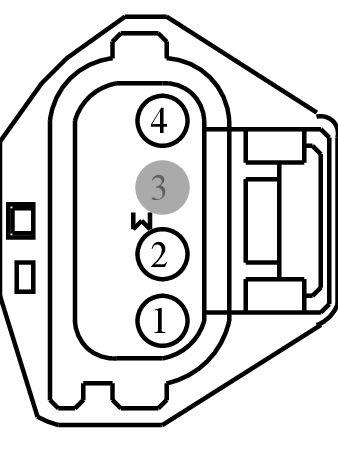

Connector End View (C1140) - MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1140	MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR	12C508			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE803 (BU-GN)	20	SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP) +	97BG-14474-AHA
2	LE423 (GN-VT)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1)	97BG-14474-AHA
3	*	*	Not Used	N/A
4	RE329 (WH-BN)	20	CTRL MOD. - POWERTRAIN # MANIFOLD PRESSURE SENSOR (MAP) -	97BG-14474-AHA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1293

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-UC

Gauge:

16

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Control - Electronic Throttle
• Sensor - Fuel Rail Temperature
• Sensor - Fuel Tank Pressure Transducer
• Sensor - Manifold Absolute Pressure (MAP)
• Sensor - Manifold Pressure/Intake Temperature
• Sensor - Throttle Position
