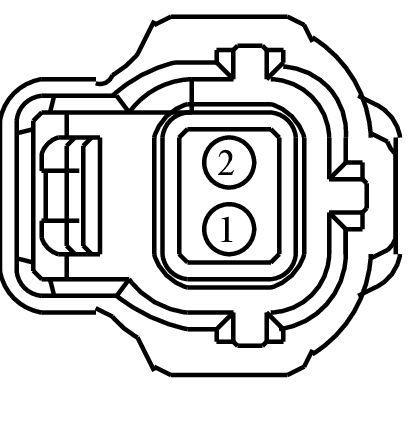

Connector End View (C1064) - ENGINE COOLANT TEMPERATURE 2 SENSOR (ECT2)

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1064	ENGINE COOLANT TEMPERATURE 2 SENSOR (ECT2)	12A581			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
98AG-14474-AA	Not Available

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE716 (YE)	20	SENSOR - ENGINE COOLANT TEMPERATURE (ECT)	98AG-14474-AA
2	RE141 (BN-GN)	20	CTRL MOD. - POWERTRAIN # ENGINE COOLANT TEMPERATURE SENSOR	98AG-14474-AA

Available Pigtail Kits

Pigtail Kit Part Number WPT-989

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-HYB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Sensor - Coolant Temperature
• Sensor - Cylinder Head Temperature
• Sensor - Transmission Oil Temperature
