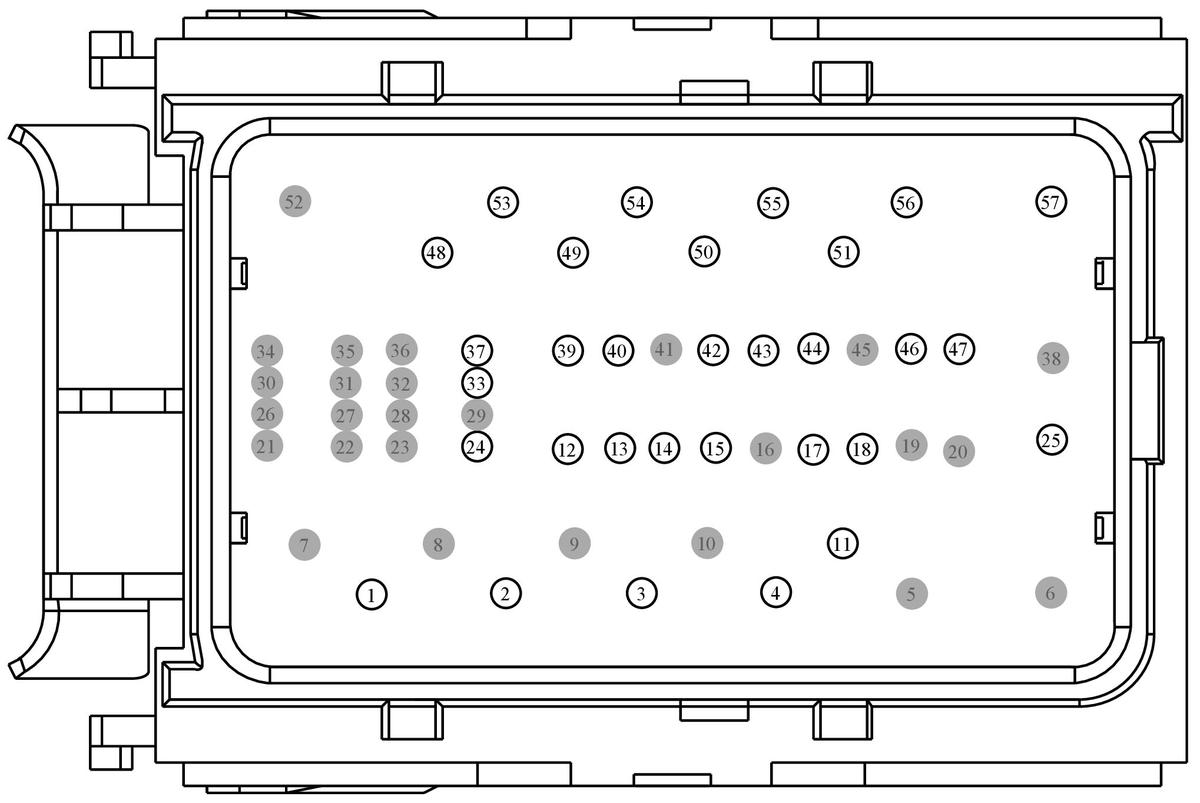

Connector End View (C1035B) - BATTERY JUNCTION BOX (BJB)

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1035B	BATTERY JUNCTION BOX (BJB)	12A581			part# N/A	Not Available

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
*DU5T-14474-JBA	Not Available
*BU5T-14474-UA	Not Available
XL3T-14474-BA	Not Available
DU5T-14474-NBA	EU2Z-14474-AA	2.8
DU5T-14474-LBA	EU2Z-14474-AA	2.8
BU5T-14474-UA	DU2Z-14474-DA	1.5
CU5T-14474-EA	DU2Z-14474-CA	0.64
CU5T-14474-DA	DU2Z-14474-CA	0.64
DU5T-14474-JBA	EU2Z-14474-AA	2.8

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBB85 (GY-RD)	10	FUSE - 85 OR CIRCUIT BREAKER	DU5T-14474-NBA
2	SBB81 (RD)	10	FUSE - 81 OR CIRCUIT BREAKER	DU5T-14474-NBA
3	SBB77 (GY-RD)	10	FUSE - 77 OR CIRCUIT BREAKER	DU5T-14474-NBA
4	SBB73 (RD)	12	FUSE - 73 OR CIRCUIT BREAKER	DU5T-14474-LBA
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	CBB29 (WH-VT)	18	FUSE - 29 OR CIRCUIT BREAKER	*DU5T-14474-JBA
12	CRW13 (GN)	18	SWITCH - REAR WIPER	7C3T-14474-DA
13	CBB54 (VT-OG)	20	FUSE - 54 OR CIRCUIT BREAKER	BU5T-14474-UA
14	CBB55 (BN-BU)	20	FUSE - 55 OR CIRCUIT BREAKER	BU5T-14474-UA
15	GD347 (BK-VT)	20	GROUND - PILLAR C OR QUARTER PANEL LEFT	BU5T-14474-UA
16	*	*	Not Used	N/A
17	CBB21 (BU-GY)	20	FUSE - 21 OR CIRCUIT BREAKER	BU5T-14474-UA
18	CBB53 (GY-BN)	20	FUSE - 53 OR CIRCUIT BREAKER	BU5T-14474-UA
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A
21	*	*	Not Used	N/A
22	*	*	Not Used	N/A
23	*	*	Not Used	N/A
24	CLN09 (YE-GN)	20	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)	CU5T-14474-EA
25	SBB65 (RD)	14	FUSE - 65 OR CIRCUIT BREAKER	DU5T-14474-LBA
26	*	*	Not Used	N/A
27	*	*	Not Used	N/A
28	*	*	Not Used	N/A
29	*	*	Not Used	N/A
30	*	*	Not Used	N/A
31	*	*	Not Used	N/A
32	*	*	Not Used	N/A
33	CE622 (BU-OG)	20	RELAY - REFUELING CONTROL	CU5T-14474-EA
34	*	*	Not Used	N/A
35	*	*	Not Used	N/A
36	*	*	Not Used	N/A
37	SBB45 (GY-RD)	18	FUSE - 45 OR CIRCUIT BREAKER	CU5T-14474-DA
38	*	*	Not Used	N/A
39	CE613 (GY-VT)	20	RELAY - POWERTRAIN CONTROL MODULE 2ND	BU5T-14474-UA
40	CBB23 (BN-YE)	20	FUSE - 23 OR CIRCUIT BREAKER	BU5T-14474-UA
41	*	*	Not Used	N/A
42	CBB24 (VT-GN)	20	FUSE - 24 OR CIRCUIT BREAKER	BU5T-14474-UA
43	CPL18 (GY-VT)	20	RELAY - FUEL FLAP LOCK	BU5T-14474-UA
44	CBB52 (GN-WH)	18	FUSE - 52 OR CIRCUIT BREAKER	7C3T-14474-DA
45	*	*	Not Used	N/A
46	CBB51 (BN)	20	FUSE - 51 OR CIRCUIT BREAKER	BU5T-14474-UA
47	CE622 (BU-OG)	22	RELAY - REFUELING CONTROL	*BU5T-14474-UA
48	SBB17 (RD)	14	FUSE - 17 OR CIRCUIT BREAKER	DU5T-14474-LBA
49	CLF61 (GY-BU)	20	CTRL MOD. - DAYTIME RUNNING LIGHT LEFT	*DU5T-14474-JBA
50	SBB36 (GN-RD)	18	FUSE - 36 OR CIRCUIT BREAKER	*DU5T-14474-JBA
51	SBB17 (RD)	16	FUSE - 17 OR CIRCUIT BREAKER	DU5T-14474-JBA
52	*	*	Not Used	N/A
53	SBB80 (VT-RD)	12	FUSE - 80 OR CIRCUIT BREAKER	DU5T-14474-LBA
54	SBB76 (BN-RD)	14	FUSE - 76 OR CIRCUIT BREAKER	DU5T-14474-LBA
55	SBB72 (VT-RD)	10	FUSE - 72 OR CIRCUIT BREAKER	DU5T-14474-NBA
56	CLF61 (GY-BU)	20	CTRL MOD. - DAYTIME RUNNING LIGHT LEFT	*DU5T-14474-JBA
57	SBB57 (RD)	10	FUSE - 57 OR CIRCUIT BREAKER	XL3T-14474-BA
