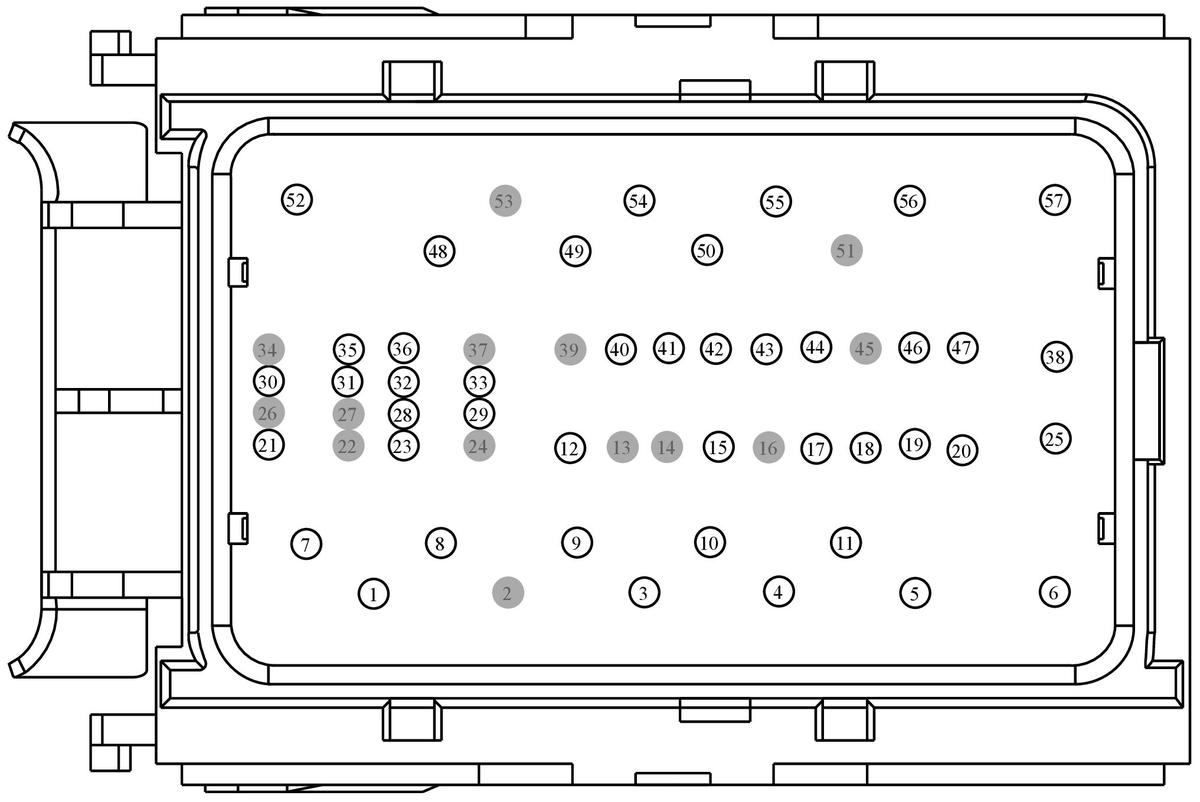

Connector End View (C1035A) - BATTERY JUNCTION BOX (BJB)

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1035A	BATTERY JUNCTION BOX (BJB)	12A581			part# N/A	Not Available

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
*DU5T-14474-JBA	Not Available
*XL3T-14474-BA	Not Available
*BU5T-14474-UA	Not Available
DU5T-14474-TBA	Not Available
DU5T-14474-LBA	EU2Z-14474-AA	2.8
BU5T-14474-UA	DU2Z-14474-DA	1.5
7C3T-14474-EA	DU2Z-14474-DA	1.5
CU5T-14474-EA	DU2Z-14474-CA	0.64
DU5T-14474-NBA	EU2Z-14474-AA	2.8
DU5T-14474-JBA	EU2Z-14474-AA	2.8

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CRW03 (VT-WH)	14	RELAY - FRONT WIPER	DU5T-14474-LBA
2	*	*	Not Used	N/A
3	CH402 (YE-GN)	10	RELAY - FRONT BLOWER	DU5T-14474-NBA
4	CRD06 (BN-YE)	10	RELAY - HEATER REAR WINDOW	DU5T-14474-NBA
5	CCB29 (WH-GN)	10	RELAY - VACUUM PUMP	DU5T-14474-NBA
6	SBB67 (BU-RD)	10	FUSE - 67 OR CIRCUIT BREAKER	*XL3T-14474-BA
7	GD120 (BK-GN)	16	GROUND - FENDER FRONT LEFT	DU5T-14474-JBA
8	CRW25 (BU-GY)	14	RELAY - FRONT WIPER PARK	Fusion	DU5T-14474-LBA
9	SBB10 (YE-RD)	16	FUSE - 10 OR CIRCUIT BREAKER	DU5T-14474-JBA
10	CBB07 (GN-BU)	14	FUSE - 7 OR CIRCUIT BREAKER	DU5T-14474-LBA
11	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR 2)	*DU5T-14474-JBA
12	CCB41 (YE)	20	CTRL MOD. - RELAY VACUUM PUMP 2	BU5T-14474-UA
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	SBB47 (WH-RD)	20	FUSE - 47 OR CIRCUIT BREAKER	BU5T-14474-UA
16	*	*	Not Used	N/A
17	CBK04 (VT)	14	FUSE - 4 OR CIRCUIT BREAKER (VPWR 4)	7C3T-14474-EA
18	CBK03 (GY)	16	FUSE - 3 OR CIRCUIT BREAKER (VPWR 3)	7C3T-14474-DA
19	CBB19 (BN-WH)	20	FUSE - 19 OR CIRCUIT BREAKER	BU5T-14474-UA
20	CBB26 (BU-WH)	20	FUSE - 26 OR CIRCUIT BREAKER	BU5T-14474-UA
21	CE237 (BN-WH)	20	CTRL MOD. - POWERTRAIN # HOLD PCM RELAY (PCM)	CU5T-14474-EA
22	*	*	Not Used	N/A
23	CRD02 (BN-BU)	20	CTRL MOD. - RELAY HEATER REAR WINDOW	CU5T-14474-EA
24	*	*	Not Used	N/A
25	CEC05 (VT-GY)	10	RELAY - ENGINE COOLING FAN	DU5T-14474-NBA
26	*	*	Not Used	N/A
27	*	*	Not Used	N/A
28	CDC55 (BN-VT)	20	RELAY - RUN START	CU5T-14474-EA
29	CCB30 (GY-VT)	20	CTRL MOD. - RELAY VACUUM PUMP	CU5T-14474-EA
30	CDC71 (YE-GY)	20	CTRL MOD. - POWER OUTLET ENABLE OR SET	CU5T-14474-EA
31	CH123 (VT-GN)	20	CTRL MOD. - BLOWER MOTOR RELAY	CU5T-14474-EA
32	CRH02 (BU-WH)	20	SWITCH - HORN	CU5T-14474-EA
33	CE226 (YE-VT)	20	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) +	CU5T-14474-EA
34	*	*	Not Used	N/A
35	CDC72 (BN-WH)	20	CTRL MOD. - POWER OUTLET DISABLE OR RESET	CU5T-14474-EA
36	CDC40 (VT-GY)	20	RELAY - DELAY ACCESSORY	CU5T-14474-EA
37	*	*	Not Used	N/A
38	SBB35 (BU-RD)	18	FUSE - 35 OR CIRCUIT BREAKER	*DU5T-14474-JBA
39	*	*	Not Used	N/A
40	CBB45 (YE)	20	FUSE - 45 OR CIRCUIT BREAKER	BU5T-14474-UA
41	SBB46 (BN-RD)	20	FUSE - 46 OR CIRCUIT BREAKER	BU5T-14474-UA
42	SBB18 (YE-RD)	20	FUSE - 18 OR CIRCUIT BREAKER	BU5T-14474-UA
43	CBB20 (YE-VT)	20	FUSE - 20 OR CIRCUIT BREAKER	BU5T-14474-UA
44	CBB14 (VT-OG)	22	FUSE - 14 OR CIRCUIT BREAKER	MKZ	*BU5T-14474-UA
45	*	*	Not Used	N/A
46	CRH04 (VT-GN)	18	CTRL MOD. - RELAY HORN	7C3T-14474-DA
47	CBB25 (WH-OG)	20	FUSE - 25 OR CIRCUIT BREAKER	BU5T-14474-UA
48	SBB05 (GY-RD)	16	FUSE - 5 OR CIRCUIT BREAKER	DU5T-14474-JBA
49	SBB16 (VT-RD)	16	FUSE - 16 OR CIRCUIT BREAKER	DU5T-14474-JBA
50	CE608 (VT-GN)	12	RELAY - FUEL PUMP	DU5T-14474-LBA
51	*	*	Not Used	N/A
52	SBB82 (YE-RD)	10	FUSE - 82 OR CIRCUIT BREAKER	DU5T-14474-TBA
53	*	*	Not Used	N/A
54	SBB74 (YE-RD)	12	FUSE - 74 OR CIRCUIT BREAKER	DU5T-14474-LBA
55	SBB70 (BN-RD)	12	FUSE - 70 OR CIRCUIT BREAKER	DU5T-14474-LBA
56	SBB69 (GY-RD)	14	FUSE - 69 OR CIRCUIT BREAKER	DU5T-14474-LBA
57	SBB62 (BN-RD)	10	FUSE - 62 OR CIRCUIT BREAKER	*XL3T-14474-BA
