Connector End View (C1026) - INLINE

Connector Viewer - 150

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C1026	INLINE	12C50812A581			See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
1F1T-14421-JA	EU2Z-14421-FA	2.8
2L1T-14421-CA	EU2Z-14421-CA	1.5
1F1T-14474-JA	DU2Z-14474-FA	2.8
BU5T-14474-UA	DU2Z-14474-DA	1.5
1F1T-14474-FA	DU2Z-14474-FA	2.8
1F1T-14421-GA	EU2Z-14421-FA	2.8
1F1T-14474-GA	DU2Z-14474-FA	2.8

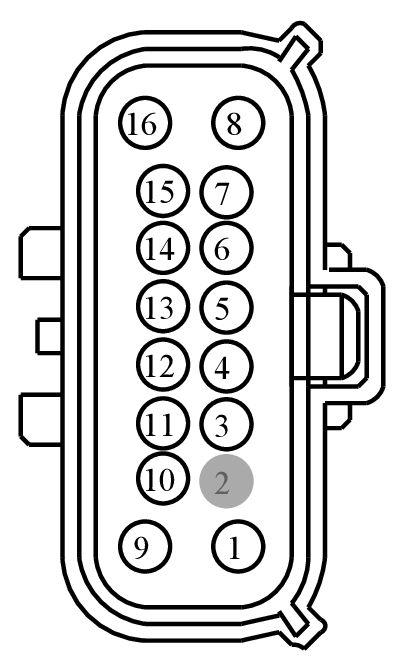

MALE

Harness

12C508

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBK04 (VT)	14	1F1T-14421-JA
2	*	*	N/A
3	VMC02 (BU-WH)	18	2L1T-14421-CA
4	GD108 (BK-VT)	18	2L1T-14421-CA
5	CE622 (BU-OG)	18	2L1T-14421-CA
6	CET34 (BN-GN)	18	2L1T-14421-CA
7	CE347 (BU-GN)	18	2L1T-14421-CA
8	LE458 (BU-WH)	18	1F1T-14421-GA
9	CBK01 (BU)	18	1F1T-14421-GA
10	CH307 (GY-BU)	18	2L1T-14421-CA
11	VE934 (GY-BN)	18	2L1T-14421-CA
12	CE420 (GY-VT)	18	2L1T-14421-CA
13	VDN06 (WH-GN)	18	2L1T-14421-CA
14	LET57 (WH-GN)	18	2L1T-14421-CA
15	LET56 (BN-VT)	18	2L1T-14421-CA
	16	CBK02 (GN)	18	1F1T-14421-GA

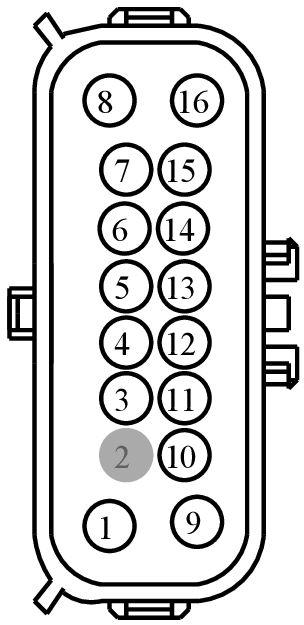

FEMALE

Harness

12A581

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBK04 (VT)	14	1F1T-14474-JA
2	*	*	N/A
3	VMC02 (BU-WH)	18	7C3T-14474-DA
4	GD113 (BK-YE)	18	7C3T-14474-DA
5	CE622 (BU-OG)	20	MKZ	BU5T-14474-UA
5	CE622 (BU-OG)	22	BU5T-14474-UA
6	CET59 (VT-GY)	22	BU5T-14474-UA
7	CE347 (BU-GN)	20	BU5T-14474-UA
8	LET57 (WH-GN)	20	1F1T-14474-FA
9	CE608 (VT-GN)	12	1F1T-14474-JA
10	CH307 (GY-BU)	20	BU5T-14474-UA
11	ZA173 (OG)	18	7C3T-14474-DA
12	CE420 (GY-VT)	18	7C3T-14474-DA
13	VDN06 (WH-GN)	20	BU5T-14474-UA
14	VET57 (VT)	20	BU5T-14474-UA
15	VET56 (WH)	20	BU5T-14474-UA
	16	CBK02 (GN)	16	1F1T-14474-GA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1541

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-KA

Gauge:

14 16

Pin material:

Tin & Silver

Cavities:

16

Vehicle Uses:

• Connector - Inline
• In-Line - Auxiliary Engine Connector
• Module - Glow Plug
